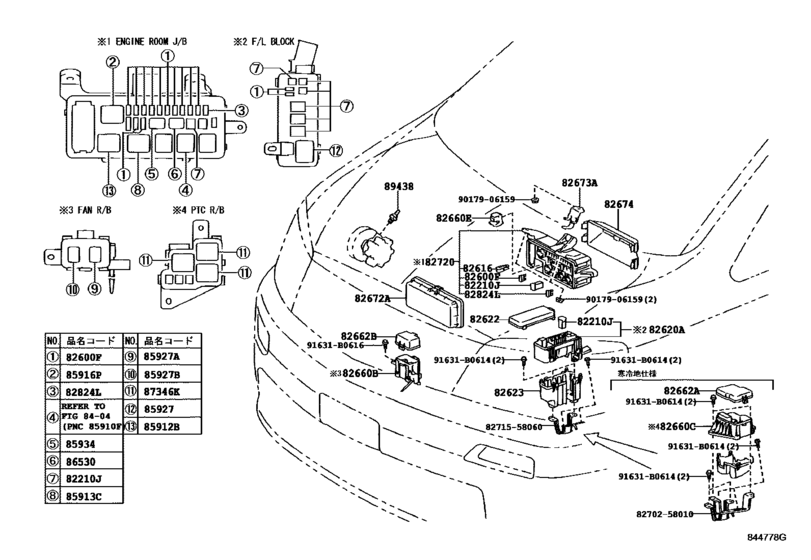

Switch & Relay & Computer ([05.2002 - ] ｴﾝｼﾞﾝﾙ-ﾑ (0205- )ANH1#) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2002 - 2008
- Sales region
- Japan
- Frame
- ANH10
- grade
- AX
- ENGINE
- 2AZFE
- Model
- Alphard I
- From
- 05.2002
- To
- 04.2008
- Gear Shift Type
- 4FC
- Seating Capacity
- 07S
- Vehicle Model
- Alphard G/V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82210J
|
82210J
90982-08203 Fusible Link[05.2002 - 04.2005] ANH1#,MNH1# ８０Ａ，オス端子 |
90982-08203 |
from US $7.23 |
||
|
82210J
|
82210J
90982-08246 Fusible Link[05.2002 - 04.2005] ANH1#,MNH1# １００Ａ，オス端子 |
90982-08246 |
from US $7.29 |
||
|
82210J
|
82210J
90982-08280 Fusible Link[05.2002 - 04.2005] ANH1#,MNH1# ３０Ａ，メス端子 |
90982-08280 |
from US $3.88 |
||
|
82210J
|
82210J
90982-08281 Fusible Link[11.2006 - 04.2008] ANH1# ４０Ａ，メス端子 |
90982-08281 |
from US $10.57 |
||
|
82210J
|
82210J
90982-08283 Fusible Link[04.2005 - 04.2008] ANH1#,MNH1# ３０Ａ，メス端子,パツセンジヤ− サイド Ｊ／Ｂ |
90982-08283 |
from US $1.38 |
||
|
82210J
|
82210J
90982-08286 Fusible Link[05.2002 - 04.2005] ANH1#,MNH1# １４０Ａ，オス端子 |
90982-08286 |
from US $8.60 |
||
|
82600F
|
82600F
90080-82050
Instrument Panel Fuse
[07.2003 - 04.2005] ANH1#,MNH1# ７．５Ａ，ミニ ヒューズ |
90080-82050 |
— | ||
|
82600F
|
82600F
90080-82051 Instrument Panel Fuse[07.2003 - 04.2005] ANH1#,MNH1# １０Ａ，ミニ ヒューズ,パツセンジヤ− サイド Ｊ／Ｂ |
90080-82051 |
US $1.46 |
||
|
82600F
|
82600F
90080-82052
Instrument Panel Fuse
[07.2003 - 04.2005] ANH1#,MNH1# １５Ａ，ミニ ヒューズ,パツセンジヤ− サイド Ｊ／Ｂ |
90080-82052 |
— | ||
|
82600F
|
82600F
90080-82053
Instrument Panel Fuse
[07.2003 - 04.2005] ANH1#,MNH1# ２０Ａ，ミニ ヒューズ,パツセンジヤ− サイド Ｊ／Ｂ |
90080-82053 |
— | ||
|
82600F
|
82600F
90080-82054 Instrument Panel Fuse[07.2003 - 04.2005] ANH1#,MNH1# ３０Ａ，ミニ ヒューズ,パツセンジヤ− サイド Ｊ／Ｂ |
90080-82054 |
US $1.60 |
||
|
82600F
|
82600F
90982-09007 Fusible Link[05.2002 - 04.2005] ANH1#,MNH1# ５Ａ，ミニ ヒューズ |
90982-09007 |
from US $0.55 |
||
|
82600F
|
82600F
90982-09008 Fusible Link[11.2006 - 04.2008] ANH1#,MNH1# ７．５Ａ，ミニ ヒューズ,運転席側 Ｊ／Ｂ |
90982-09008 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09009 Fusible Link[05.2002 - 04.2005] ANH1#,MNH1# １０Ａ，ミニ ヒューズ,エンジンルームＪ／Ｂ,運転席側 Ｊ／Ｂ |
90982-09009 |
US $1.25 |
||
|
82600F
|
82600F
90982-09010 Fusible Link[05.2002 - 04.2005] ANH1#,MNH1# １５Ａ，ミニ ヒューズ,エンジンルームＪ／Ｂ,運転席側 Ｊ／Ｂ |
90982-09010 |
from US $0.49 |
||
|
82600F
|
82600F
90982-09011 Fusible Link[05.2002 - 04.2005] ANH1#,MNH1# ２０Ａ，ミニ ヒューズ,エンジンルームＪ／Ｂ,運転席側 Ｊ／Ｂ |
90982-09011 |
from US $0.94 |
||
|
82600F
|
82600F
90982-09012 Fusible Link[05.2002 - 04.2005] ANH1#,MNH1# ２５Ａ，ミニ ヒューズ |
90982-09012 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09013 Fusible Link[05.2002 - 04.2005] ANH1#,MNH1# ３０Ａ，ミニ ヒューズ,エンジンルームＪ／Ｂ,運転席側 Ｊ／Ｂ |
90982-09013 |
from US $0.94 |
||
|
82616
|
82616
82616-58010 Puller, Fuse[05.2002 - 04.2005] ANH1#,MNH1# |
82616-58010 |
from US $2.28 |
||
|
82620A
|
82620A
82620-28220 Block Assy, Fusible Link[05.2002 - 10.2003] ANH1# |
82620-28220 |
US $125.22 |
||
|
82620A
|
82620A
82620-58030 Block Assy, Fusible Link[10.2003 - 04.2005] ANH1# |
82620-58030 |
US $125.22 |
||
|
82620A
|
82620A
82620-58031 Block Assy, Fusible Link[04.2005 - 04.2008] ANH1#,MNH1# |
82620-58031 |
US $125.22 |
||
|
82622
|
82622
82622-28010 Cover, Fusible Link, Upper[05.2002 - 04.2005] ANH1#,MNH1# |
82622-28010 |
US $17.91 |
||
|
82622
|
82622
82622-58030 Cover, Fusible Link, Upper[04.2005 -] ANH1#,MNH1# |
82622-58030 |
US $15.14 |
||
|
82623
|
82623
82623-28020 Cover, Fusible Link, Lower[05.2002 - 04.2005] ANH1#,MNH1# |
82623-28020 |
US $38.73 |
||
|
82660B
|
82660B
82660-28200 Block Assy, Relay[05.2002 - 04.2005] ANH1# |
82660-28200 |
US $55.33 |
||
|
82660C
|
82660C
82660-58010 Block Assy, Relay[05.2002 - 04.2005] ANH1# 寒冷地仕様; ANH1#..AX 寒冷地仕様＆ディスチャージヘッドランプ |
82660-58010 |
US $42.66 |
||
|
82660E
|
82660E
82660-20340 Block Assy, Relay, Engine Room[05.2002 - 04.2005] ANH1#,MNH1# |
82660-20340 |
US $5.59 |
||
|
82662A
|
82662A
82662-28020 Cover, Relay Block, Upper, No.1[05.2002 - 04.2005] ANH1# 寒冷地仕様; ANH1#..AX 寒冷地仕様＆ディスチャージヘッドランプ |
82662-28020 |
US $11.71 |
||
|
82662B
|
82662B
82662-28010 Cover, Relay Block, Upper, No.2[05.2002 - 04.2005] ANH1# |
82662-28010 |
US $9.90 |
||
|
82672A
|
82672A
82672-58010 Cover, Junction Block[05.2002 - 04.2005] ANH1#,MNH1# |
82672-58010 |
US $36.40 |
||
|
82672A
|
82672A
82672-58011 Cover, Junction Block[04.2005 -] ANH1#,MNH1# |
82672-58011 |
US $38.44 |
||
|
82673A
|
82673A
82673-28010 Bracket, Junction Block[05.2002 - 04.2005] ANH1#,MNH1# |
82673-28010 |
US $10.48 |
||
|
82674
|
82674
82674-28010 Cover, Junction Block Lower[05.2002 - 04.2005] ANH1#,MNH1# |
82674-28010 |
US $35.53 |
||
|
82720
|
82720
82720-58020 Block Assy, Engine Room Junction[05.2002 - 04.2005] ANH1# |
82720-58020 |
US $321.78 |
||
|
82720
|
82720
82720-58021 Block Assy, Engine Room Junction[04.2005 - 04.2008] ANH1# |
82720-58021 |
US $314.50 |
||
|
82824L
|
82824L
82824-20140 Connector, Wiring Harness[05.2002 - 04.2005] ANH1#,MNH15;MNH10..MS,MX;MNH10..07S..MZ |
82824-20140 |
US $2.48 |
||
|
85912B
|
85912B
90987-02024 Relay, Ignition, No.1[07.2003 - 04.2005] ANH1#,MNH1# 寒冷地仕様 |
90987-02024 |
US $38.75 |
||
|
85913C
|
85913C
90987-02025 Relay[05.2002 - 04.2005] ANH1#,MNH1# |
90987-02025 |
from US $49.22 |
||
|
85916P
|
85916P
90987-02025 Relay[05.2002 - 04.2005] ANH1#,MNH1# |
90987-02025 |
from US $49.22 |
||
|
85927
|
85927
90987-02025 Relay[05.2002 - 04.2004] ANH1#,MNH1# |
90987-02025 |
from US $49.22 |
||
|
85927A
|
85927A
90987-04004 Relay, Starter Cut[05.2002 - 04.2005] ANH1# |
90987-04004 |
from US $47.21 |
||
|
85927B
|
85927B
90987-02012 Relay, Ignition, No.1[05.2002 - 09.2003] ANH1# |
90987-02012 |
from US $26.54 |
||
|
85927B
|
85927B
90987-02024 Relay, Ignition, No.1[09.2003 - 04.2005] ANH1# |
90987-02024 |
US $38.75 |
||
|
85934
|
85934
90987-02022 Relay, Starter Cut[05.2002 - 09.2003] ANH1#,MNH1# |
90987-02022 |
from US $51.50 |
||
|
85934
|
85934
90987-02028 Relay, Water Pump[10.2003 - 04.2005] ANH1#,MNH1# |
90987-02028 |
from US $49.22 |
||
|
86530
|
86530
90987-02022 Relay, Starter Cut[05.2002 - 08.2003] ANH1#,MNH1#..4FC 品番ラベル＝９０９８７−０２０２２ |
90987-02022 |
from US $51.50 |
||
|
86530
|
86530
90987-02024 Relay, Ignition, No.1[05.2002 - 04.2005] ANH1#,MNH1# 品番ラベル＝９０９８７−０２０２４ |
90987-02024 |
US $38.75 |
||
|
87346K
|
87346K
90987-02025 Relay[05.2002 - 04.2005] ANH1# 寒冷地仕様 |
90987-02025 |
from US $49.22 |
||
|
89438
|
89438
89438-33010 Switch, Power Steering Oil Pressure[05.2002 - 04.2005] ANH1#,MNH1# |
89438-33010 |
from US $25.62 |
||
|
91631B0614
|
91631B0614
91631-B0614 BOLT WWASHER |
91631-B0614 |
from US $0.86 |
||
|
91631B0616
|
91631B0616
91631-B0616 BOLT WWASHER |
91631-B0616 |
from US $0.66 |
||
|
8270258010
|
8270258010
82702-58010 Bracket Sub-assy, Wiring Harness |
82702-58010 |
US $26.64 |
||
|
8271558060
|
8271558060
82715-58060 Bracket,wiring Harness Clamp |
82715-58060 |
US $15.58 |
||
|
9017906159
|
9017906159
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
| replacement | |||||
|
9017906159
|
9017906159
90080-17210
Nut, Rear Wiper Link Pivot, No.1
|
90080-17210 |
— | ||
