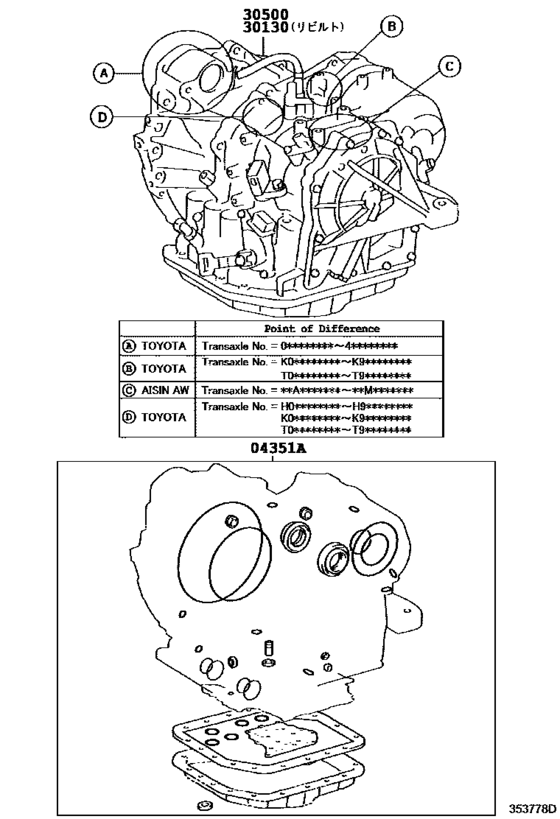

Transaxle Or Transmission Assy & Gasket Kit (Atm) ([05.2002 - ] U140E,U140F,U241E (0205- )4FC) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2002 - 2008
- Sales region
- Japan
- Frame
- ANH10
- grade
- AX
- ENGINE
- 2AZFE
- Model
- Alphard I
- From
- 05.2002
- To
- 04.2008
- Gear Shift Type
- 4FC
- Seating Capacity
- 07S
- Vehicle Model
- Alphard G/V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04351A
|
04351A
04351-28110
Gasket Kit, Transaxle Overhaul(Atm)
[05.2002 - 01.2003] ANH10 |
04351-28110 |
— | ||
| replacement | |||||
|
04351A
|
04351A
04351-28111 Gasket Kit, Transaxle Overhaul(Atm)[05.2002 - 01.2003] ANH10 |
04351-28111 |
US $286.83 |
||
|
04351A
|
04351A
04351-58010
Gasket Kit, Transaxle Overhaul(Atm)
[10.2003 - 04.2005] ANH10 |
04351-58010 |
— | ||
| replacement | |||||
|
04351A
|
04351A
04351-48154 Gasket Kit, Transaxle Overhaul(Atm)[10.2003 - 04.2005] ANH10 |
04351-48154 |
US $335.46 |
||
|
04351A
|
04351A
04351-58090
Gasket Kit, Transaxle Overhaul(Atm)
[04.2005 - 08.2006] ANH10 |
04351-58090 |
— | ||
|
04351A
|
04351A
04351-58100
Gasket Kit, Transaxle Overhaul(Atm)
[08.2006 - 03.2007] ANH10 |
04351-58100 |
— | ||
| replacement | |||||
|
04351A
|
04351A
04351-48154 Gasket Kit, Transaxle Overhaul(Atm)[08.2006 - 03.2007] ANH10 |
04351-48154 |
US $335.46 |
||
|
04351A
|
04351A
04351-58101
Gasket Kit, Transaxle Overhaul(Atm)
[03.2007 -] ANH10 |
04351-58101 |
— | ||
| replacement | |||||
|
04351A
|
04351A
04351-48154 Gasket Kit, Transaxle Overhaul(Atm)[03.2007 -] ANH10 |
04351-48154 |
US $335.46 |
||
|
30130
|
30130
30130-58040
Transaxle Assy, Rebuilt
[05.2002 - 01.2003] ANH10 ＡＩＳＩＮ ＡＷ：イラスト参照 |
30130-58040 |
— | ||
| replacement | |||||
|
30130
|
30130
30130-58041 Transaxle Assy, Rebuilt[05.2002 - 01.2003] ANH10 ＡＩＳＩＮ ＡＷ：イラスト参照 |
30130-58041 |
US $4,004 |
||
|
30130
|
30130
30130-58042
Transaxle Assy, Rebuilt
[04.2005 - 04.2008] ANH10 ＡＩＳＩＮ ＡＷ：イラスト参照 |
30130-58042 |
— | ||
| replacement | |||||
|
30130
|
30130
30130-58041 Transaxle Assy, Rebuilt[04.2005 - 04.2008] ANH10 ＡＩＳＩＮ ＡＷ：イラスト参照 |
30130-58041 |
US $4,004 |
||
|
30130
|
30130
30130-58072 Transaxle Assy, Rebuilt[01.2003 - 04.2005] ANH10 ＴＯＹＯＴＡ：イラスト参照 |
30130-58072 |
US $4,018.56 |
||
|
30500
|
30500
30500-58040
Transaxle Assy, Automatic
[05.2002 - 01.2003] ANH10 Ｕ２４１Ｅ,ＡＩＳＩＮ ＡＷ：イラスト参照 |
30500-58040 |
— | ||
| replacement | |||||
|
30500
|
30500
30500-58041 Transaxle Assy, Automatic[05.2002 - 01.2003] ANH10 Ｕ２４１Ｅ,ＡＩＳＩＮ ＡＷ：イラスト参照 |
30500-58041 |
US $5,547.36 |
||
|
30500
|
30500
30500-58070
Transaxle Assy, Automatic
[01.2003 - 04.2005] ANH10 Ｕ２４１Ｅ,ＴＯＹＯＴＡ：イラスト参照 |
30500-58070 |
— | ||
| replacement | |||||
|
30500
|
30500
30500-58090 Transaxle Assy, Automatic[01.2003 - 04.2005] ANH10 Ｕ２４１Ｅ,ＴＯＹＯＴＡ：イラスト参照 |
30500-58090 |
US $6,668.48 |
||
|
30500
|
30500
30500-58071
Transaxle Assy, Automatic
[04.2005 - 12.2006] ANH10 Ｕ２４１Ｅ |
30500-58071 |
— | ||
| replacement | |||||
|
30500
|
30500
30500-58072 Transaxle Assy, Automatic[04.2005 - 12.2006] ANH10 Ｕ２４１Ｅ |
30500-58072 |
US $6,668.48 |
||
|
30500
|
30500
30500-58072 Transaxle Assy, Automatic[12.2006 -] ANH10 Ｕ２４１Ｅ |
30500-58072 |
US $6,668.48 |
||
