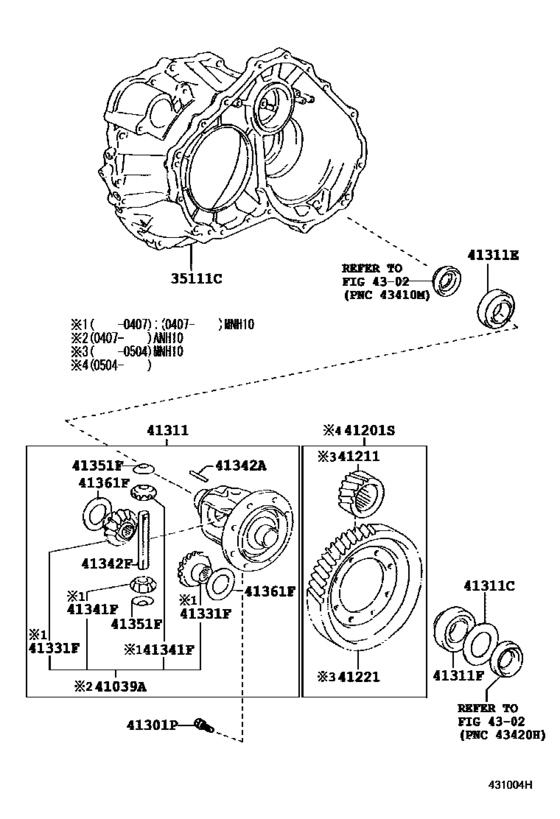

Front Axle Housing & Differential ([05.2002 - ] U140E,U140F,U151E,U241E (0205- )ANH10,MNH10) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2002 - 2008
- Sales region
- Japan
- Frame
- ANH10
- grade
- AX
- ENGINE
- 2AZFE
- Model
- Alphard I
- From
- 05.2002
- To
- 04.2008
- Gear Shift Type
- 4FC
- Seating Capacity
- 08S
- Vehicle Model
- Alphard G/V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35111C
|
35111C
35105-28031 Housing, Transaxle[05.2002 - 01.2003] ANH10 |
35105-28031 |
US $828.46 |
||
|
35111C
|
35111C
35105-44011 Housing, Transaxle[01.2003 - 04.2005] ANH10 |
35105-44011 |
from US $802.26 |
||
|
35111C
|
35111C
35105-44061 Housing, Transaxle[12.2006 - 04.2008] ANH10 |
35105-44061 |
US $556.19 |
||
| replacements | |||||
|
35111C
|
35111C
35105-28032 Housing, Transaxle[12.2006 - 04.2008] ANH10 |
35105-28032 |
from US $521.25 |
||
|
35111C
|
35111C
82715-33J60
Bracket,wiring Harness Clamp
[12.2006 - 04.2008] ANH10 |
82715-33J60 |
— | ||
|
35111C
|
35111C
90105-08353 Bolt(For Head To Camshaft Bearing Cap)[12.2006 - 04.2008] ANH10 |
90105-08353 |
from US $0.92 |
||
|
41039A
|
41039A
41039-28020 Gear Kit, Differential[07.2004 - 04.2005] ANH10 |
41039-28020 |
US $154.34 |
||
|
41211
|
41211
41211-32150 Pinion, Differential Drive[01.2003 - 04.2005] ANH10 |
41211-32150 |
US $40.48 |
||
| replacement | |||||
|
41211
|
41211
41211-42H03 Pinion, Differential Drive[01.2003 - 04.2005] ANH10 |
41211-42H03 |
US $883.79 |
||
|
41211
|
41211
41211-42040 Pinion, Differential Drive[05.2002 - 01.2003] ANH10 |
41211-42040 |
US $93.18 |
||
|
41221
|
41221
41221-32160 Gear, Front Differential Ring[01.2003 - 04.2005] ANH10 |
41221-32160 |
US $133.95 |
||
| replacement | |||||
|
41221
|
41221
41211-42H03 Pinion, Differential Drive[01.2003 - 04.2005] ANH10 |
41211-42H03 |
US $883.79 |
||
|
41221
|
41221
41221-42070 Gear, Front Differential Ring[05.2002 - 01.2003] ANH10 |
41221-42070 |
US $133.95 |
||
|
41301P
|
41301P
90105-12303 Bolt (For Front Differential Ring Gear Set)[05.2002 - 04.2005] ANH10 |
90105-12303 |
US $2.04 |
||
|
41311
|
41311
41301-28090 Case, Front Differential[05.2002 - 01.2003] ANH10 |
41301-28090 |
US $374.19 |
||
|
41311
|
41311
41301-33070 Case, Front Differential[01.2003 - 02.2004] ANH10 |
41301-33070 |
US $643.55 |
||
| replacement | |||||
|
41311
|
41311
41301-28090 Case, Front Differential[01.2003 - 02.2004] ANH10 |
41301-28090 |
US $374.19 |
||
|
41311
|
41311
41301-33110 Case, Front Differential[02.2004 - 04.2005] ANH10 |
41301-33110 |
US $582.40 |
||
| replacement | |||||
|
41311
|
41311
41301-28090 Case, Front Differential[02.2004 - 04.2005] ANH10 |
41301-28090 |
US $374.19 |
||
|
41311C
|
41311C
90564-68006 Shim (For Front Differential Case Rear)[05.2002 - 04.2005] ANH10 厚さ＝１．９０，マーク ０ |
90564-68006 |
US $1.60 |
||
|
41311C
|
41311C
90564-68007 Shim (For Front Differential Case Rear)[05.2002 - 04.2005] ANH10 厚さ＝１．９５，マーク １ |
90564-68007 |
US $1.60 |
||
|
41311C
|
41311C
90564-68008 Shim (For Front Differential Case Rear)[05.2002 - 04.2005] ANH10 厚さ＝２．００，マーク ２ |
90564-68008 |
US $2.48 |
||
|
41311C
|
41311C
90564-68009 Shim (For Front Differential Case Rear)[05.2002 - 04.2005] ANH10 厚さ＝２．０５，マーク ３ |
90564-68009 |
US $2.48 |
||
|
41311C
|
41311C
90564-68010 Shim (For Front Differential Case Rear)[05.2002 - 04.2005] ANH10 厚さ＝２．１０，マーク ４ |
90564-68010 |
US $2.48 |
||
|
41311C
|
41311C
90564-68011 Shim (For Front Differential Case Rear)[05.2002 - 04.2005] ANH10 厚さ＝２．１５，マーク ５ |
90564-68011 |
US $2.48 |
||
|
41311C
|
41311C
90564-68012 Shim (For Front Differential Case Rear)[05.2002 - 04.2005] ANH10 厚さ＝２．２０，マーク ６ |
90564-68012 |
US $2.48 |
||
|
41311C
|
41311C
90564-68013 Shim (For Front Differential Case Rear)[05.2002 - 04.2005] ANH10 厚さ＝２．２５，マーク ７ |
90564-68013 |
US $2.48 |
||
|
41311C
|
41311C
90564-68014 Shim (For Front Differential Case Rear)[05.2002 - 04.2005] ANH10 厚さ＝２．３０，マーク ８ |
90564-68014 |
US $2.48 |
||
|
41311C
|
41311C
90564-68015 Shim (For Front Differential Case Rear)[05.2002 - 04.2005] ANH10 厚さ＝２．３５，マーク ９ |
90564-68015 |
US $2.48 |
||
|
41311C
|
41311C
90564-68016 Shim (For Front Differential Case Rear)[05.2002 - 04.2005] ANH10 厚さ＝２．４０，マーク Ａ |
90564-68016 |
US $2.48 |
||
|
41311C
|
41311C
90564-68017 Shim (For Front Differential Case Rear)[05.2002 - 04.2005] ANH10 厚さ＝２．４５，マーク Ｂ |
90564-68017 |
US $2.48 |
||
|
41311C
|
41311C
90564-68018 Shim (For Front Differential Case Rear)[05.2002 - 04.2005] ANH10 厚さ＝２．５０，マーク Ｃ |
90564-68018 |
US $2.48 |
||
|
41311C
|
41311C
90564-68019 Shim (For Front Differential Case Rear)[05.2002 - 04.2005] ANH10 厚さ＝２．５５，マーク Ｄ |
90564-68019 |
US $2.48 |
||
|
41311C
|
41311C
90564-68020 Shim (For Front Differential Case Rear)[05.2002 - 04.2005] ANH10 厚さ＝２．６０，マーク Ｅ |
90564-68020 |
US $2.48 |
||
|
41311C
|
41311C
90564-68021 Shim (For Front Differential Case Rear)[05.2002 - 04.2005] ANH10 厚さ＝２．６５，マーク Ｆ |
90564-68021 |
US $2.48 |
||
|
41311C
|
41311C
90564-68022 Shim (For Front Differential Case Rear)[05.2002 - 04.2005] ANH10 厚さ＝２．７０，マーク Ｇ |
90564-68022 |
US $2.48 |
||
|
41311C
|
41311C
90564-68023 Shim (For Front Differential Case Rear)[05.2002 - 04.2005] ANH10 厚さ＝２．７５，マーク Ｈ |
90564-68023 |
US $2.48 |
||
|
41311C
|
41311C
90564-68024 Shim (For Front Differential Case Rear)[05.2002 - 04.2005] ANH10 厚さ＝２．８０，マーク Ｊ |
90564-68024 |
US $2.48 |
||
|
41311E
|
41311E
90366-50075 Bearing, Tapered Roller (For Front Differential Case Front)[05.2002 - 01.2003] ANH10 |
90366-50075 |
US $16.95 |
||
|
41311E
|
41311E
90366-50084 Bearing, Tapered Roller (For Front Differential Case Front)[01.2003 - 04.2005] ANH10 |
90366-50084 |
US $16.95 |
||
|
41311F
|
41311F
90366-50078 Bearing, Tapered Roller (For Front Differential Case Rear)[05.2002 - 04.2005] ANH10 |
90366-50078 |
from US $19.74 |
||
|
41331F
|
41331F
41331-28020 Gear, Front Differential Side[05.2002 - 01.2003] ANH10 |
41331-28020 |
US $55.04 |
||
| replacement | |||||
|
41331F
|
41331F
41331-28040 Gear, Front Differential Side[05.2002 - 01.2003] ANH10 |
41331-28040 |
US $50.52 |
||
|
41331F
|
41331F
41331-33030 Gear, Front Differential Side[01.2003 - 07.2004] ANH10 |
41331-33030 |
US $69.01 |
||
|
41341F
|
41341F
41341-14041 Pinion, Front Differential[01.2003 - 07.2004] ANH10 |
41341-14041 |
US $30.23 |
||
|
41341F
|
41341F
41341-28010 Pinion, Front Differential[05.2002 - 01.2003] ANH10 |
41341-28010 |
US $31.30 |
||
| replacement | |||||
|
41341F
|
41341F
41341-28030 Pinion, Front Differential[05.2002 - 01.2003] ANH10 |
41341-28030 |
US $28.68 |
||
|
41342A
|
41342A
90250-06058 Pin, Straight(For Timing Gear Case)[05.2002 - 04.2005] ANH10,MNH10 |
90250-06058 |
from US $1.87 |
||
|
41342F
|
41342F
41342-28030 Shaft, Front Differential Pinion, No.1[05.2002 - 01.2003] ANH10 |
41342-28030 |
US $19.51 |
||
|
41342F
|
41342F
41342-33040 Shaft, Front Differential Pinion, No.1[01.2003 - 04.2005] ANH10 |
41342-33040 |
US $21.55 |
||
|
41351F
|
41351F
41351-28010 Washer, Front Differential Pinion Thrust[05.2002 - 04.2005] ANH10 |
41351-28010 |
US $2.18 |
||
|
41361F
|
41361F
41361-28230 Washer, Front Differential Side Gear Thrust, No.1[05.2002 - 04.2005] ANH10 厚さ＝１．０，マーク １ |
41361-28230 |
US $2.62 |
||
|
41361F
|
41361F
41361-28240 Washer, Front Differential Side Gear Thrust, No.1[05.2002 - 04.2005] ANH10 厚さ＝１．１，マーク ２ |
41361-28240 |
US $2.62 |
||
|
41361F
|
41361F
41361-28250 Washer, Front Differential Side Gear Thrust, No.1[05.2002 - 04.2005] ANH10 厚さ＝１．２，マーク ３ |
41361-28250 |
US $2.62 |
||
|
41361F
|
41361F
41361-28260 Washer, Front Differential Side Gear Thrust, No.1[05.2002 - 04.2005] ANH10 厚さ＝１．３，マーク ４ |
41361-28260 |
US $2.62 |
||
