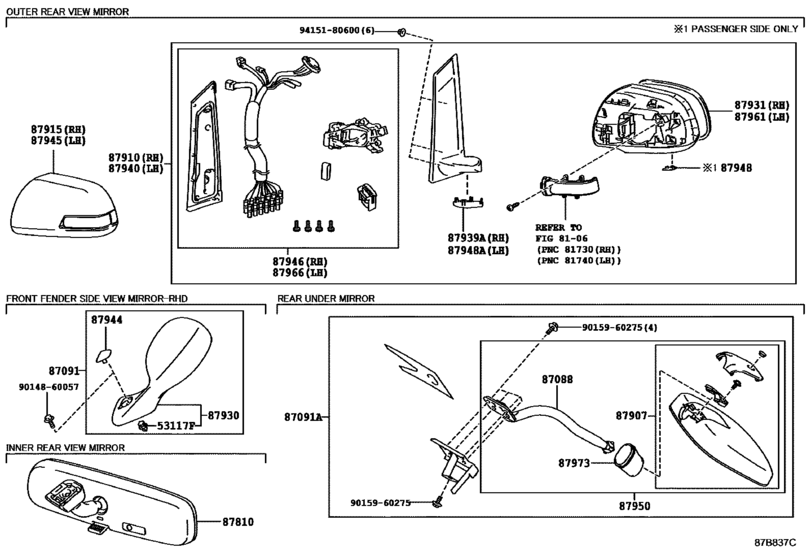

Mirror ([04.2008 - 10.2011] (0804-1110)) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2009 - 2015
- Sales region
- General
- Frame
- ANH20
- grade
- 350X
- ENGINE
- 2AZFE
- DESTINATION
- GEN
- Model
- Alphard II
- From
- 06.2009
- To
- 01.2015
- Gear Shift Type
- CVFC
- Seating Capacity
- 07S
- Vehicle Model
- Alphard
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53117F
|
53117F
53117-42010 Retainer, Radiator Grille, No.1[04.2008 - 10.2011] ANH20,GGH20..RHD |
53117-42010 |
US $2.33 |
||
|
87088
|
87088
87088-58020 Arm Sub-Assy, Outer Under Rear View Mirror[04.2008 - 10.2011] ANH20..CVFC;GGH20..RHD..(350G,350S) REAR UNDER MIRROR-WITH |
87088-58020 |
US $66.39 |
||
|
87091
|
87091
87091-58020-A0
Mirror Set, Outer Rear View, No.1
[04.2008 - 10.2011] ANH20,GGH20..RHD..ALPHD ***,WHITE PEARL CS.,070 |
87091-58020-A0 |
— | ||
|
87091
|
87091
87091-58020-B1 Mirror Set, Outer Rear View, No.1[04.2008 - 10.2011] ANH20,GGH20..RHD..(350G,350X) ***,SILVER ME.,1F7 |
87091-58020-B1 |
US $110.66 |
||
|
87091
|
87091
87091-58020-C0 Mirror Set, Outer Rear View, No.1[04.2008 - 10.2011] ANH20,GGH20..RHD..ALPHD ***,BLACK,202 |
87091-58020-C0 |
US $110.66 |
||
|
87091
|
87091
87091-58020-E0 Mirror Set, Outer Rear View, No.1[04.2008 - 10.2011] ANH20..07S..CVFC;GGH20..RHD..350G ***,BEIGE ME.,4T8 |
87091-58020-E0 |
US $133.95 |
||
|
87091
|
87091
87091-58020-E1 Mirror Set, Outer Rear View, No.1[04.2008 - 10.2011] ANH20..07S..CVFC;GGH20..RHD..(350G,350S)..ALPHD ***,GOLD PEARL CS.,4U1 |
87091-58020-E1 |
US $110.66 |
||
|
87091
|
87091
87091-58020-J0 Mirror Set, Outer Rear View, No.1[04.2008 - 10.2011] ANH20..07S..CVFC;GGH20..RHD..(350G,350S)..ALPHD ***,DK.BLUE MC.,8S6 |
87091-58020-J0 |
US $133.95 |
||
|
87091A
|
87091A
87091-58010 Mirror Set, Outer Rear View, No.2[04.2008 - 10.2011] ANH20..CVFC;GGH20..RHD..(350G,350S) ***,REAR UNDER MIRROR-WITH |
87091-58010 |
US $160.16 |
||
|
87810
|
87810
87810-0WC10 Mirror Assy, Inner Rear View[10.2011 - 01.2015] GGH20..RHD;GGH20..GCC;ANH20,ATH20..350G; ANH20..350X THAILAND SPEC; GGH20..LHD..GEN TAIWAN SPEC; GGH20..LHD..GEN PHILIPPINES SPEC; GGH20..LHD..GEN RUSSIA SPEC |
87810-0WC10 |
US $579.49 |
||
|
87810
|
87810
87810-52041 Mirror Assy, Inner Rear View[04.2008 - 10.2011] ANH20,GGH20 TYPE A |
87810-52041 |
from US $80.46 |
||
|
87810
|
87810
87810-AA011 Mirror Assy, Inner Rear View[11.2011 - 01.2015] ANH20..350S,350X TYPE B |
87810-AA011 |
from US $55.85 |
||
|
87907
|
87907
87907-58020 Mirror Sub-Assy, Outer Under View[04.2008 - 10.2011] ANH20..CVFC;GGH20..RHD..(350G,350S) REAR UNDER MIRROR-WITH |
87907-58020 |
US $50.52 |
||
|
87910
|
87910
87910-58050 Mirror Assy, Outer Rear View, Rh[10.2008 - 10.2011] ANH20..350S,350X |
87910-58050 |
US $856.44 |
||
|
87910
|
87910
87910-58051 Mirror Assy, Outer Rear View, Rh[10.2011 -] ANH20..350S,350X |
87910-58051 |
US $856.44 |
||
|
87910
|
87910
87910-58090 Mirror Assy, Outer Rear View, Rh[06.2009 - 10.2011] GGH20..350X; ANH20..350X THAILAND SPEC |
87910-58090 |
US $939.12 |
||
|
87910
|
87910
87910-58091 Mirror Assy, Outer Rear View, Rh[10.2011 -] ATH20,GGH20..RHD;ANH20..RHD..350G; ANH20..350X THAILAND SPEC |
87910-58091 |
US $939.12 |
||
|
87915
|
87915
87915-28060-A1 Cover, Outer Mirror, Rh[04.2008 - 10.2011] ANH20,GGH20..RHD;ANH20,GGH20..GCC WHITE PEARL CS.,070 |
87915-28060-A1 |
from US $36.52 |
||
|
87915
|
87915
87915-28060-B0 Cover, Outer Mirror, Rh[04.2008 - 10.2011] ANH20,GGH20..GCC;ANH20,GGH20..RHD..(350G,350X) SILVER ME.,1F7 |
87915-28060-B0 |
from US $38.25 |
||
|
87915
|
87915
87915-28060-C0 Cover, Outer Mirror, Rh[04.2008 - 10.2011] ANH20,GGH20..RHD;ANH20,GGH20..GCC BLACK,202 |
87915-28060-C0 |
US $51.74 |
||
|
87915
|
87915
87915-28060-E1 Cover, Outer Mirror, Rh[04.2008 - 10.2011] ANH20..07S..CVFC;ANH20,GGH20..GCC;GGH20..RHD..350G BEIGE ME.,4T8 |
87915-28060-E1 |
US $41.50 |
||
|
87915
|
87915
87915-28060-E2 Cover, Outer Mirror, Rh[04.2008 - 10.2011] ANH20..07S..CVFC;ANH20,GGH20..GCC;GGH20..RHD..(350G,350S)..ALPHD GOLD PEARL CS.,4U1 |
87915-28060-E2 |
US $34.51 |
||
|
87915
|
87915
87915-28060-J0 Cover, Outer Mirror, Rh[04.2008 - 10.2011] ANH20..07S..CVFC;ANH20,GGH20..GCC;GGH20..RHD..(350G,350S)..ALPHD DK.BLUE MC.,8S6 |
87915-28060-J0 |
US $41.50 |
||
|
87930
|
87930
87930-58020-A0 Device Assy, Front Fender Side View, Lh[04.2008 - 10.2011] ANH20,GGH20..RHD..ALPHD WHITE PEARL CS.,070 |
87930-58020-A0 |
US $180.80 |
||
|
87930
|
87930
87930-58020-B1 Device Assy, Front Fender Side View, Lh[04.2008 - 10.2011] ANH20,GGH20..RHD..(350G,350X) SILVER ME.,1F7 |
87930-58020-B1 |
US $180.80 |
||
|
87930
|
87930
87930-58020-C0 Device Assy, Front Fender Side View, Lh[04.2008 - 10.2011] ANH20,GGH20..RHD..ALPHD BLACK,202 |
87930-58020-C0 |
US $180.80 |
||
|
87930
|
87930
87930-58020-E0 Device Assy, Front Fender Side View, Lh[04.2008 - 10.2011] ANH20..07S..CVFC;GGH20..RHD..350G BEIGE ME.,4T8 |
87930-58020-E0 |
US $180.80 |
||
|
87930
|
87930
87930-58020-E1 Device Assy, Front Fender Side View, Lh[04.2008 - 10.2011] ANH20..07S..CVFC;GGH20..RHD..(350G,350S)..ALPHD GOLD PEARL CS.,4U1 |
87930-58020-E1 |
US $180.80 |
||
|
87930
|
87930
87930-58020-J0 Device Assy, Front Fender Side View, Lh[04.2008 - 10.2011] ANH20..07S..CVFC;GGH20..RHD..(350G,350S)..ALPHD DK.BLUE MC.,8S6 |
87930-58020-J0 |
US $180.80 |
||
|
87931
|
87931
87931-58050 Outer Mirror, Rh[04.2008 - 10.2011] ANH20,GGH20..RHD |
87931-58050 |
US $145.96 |
||
|
87931
|
87931
87931-58051 Outer Mirror, Rh[10.2011 -] ANH20,ATH20,GGH20..RHD |
87931-58051 |
US $145.96 |
||
|
87939A
|
87939A
87939-58050 Cover, Outer Mirror Hole, Rh[04.2008 - 10.2011] ANH20,GGH20..RHD |
87939-58050 |
US $9.86 |
||
|
87940
|
87940
87940-58070 Mirror Assy, Outer Rear View, Lh[10.2008 - 10.2011] ANH20..350S,350X |
87940-58070 |
US $856.44 |
||
|
87940
|
87940
87940-58071 Mirror Assy, Outer Rear View, Lh[10.2011 -] ANH20..350S,350X |
87940-58071 |
US $856.44 |
||
|
87940
|
87940
87940-58150 Mirror Assy, Outer Rear View, Lh[06.2009 - 10.2011] GGH20..350X; ANH20..350X THAILAND SPEC |
87940-58150 |
US $923.52 |
||
|
87940
|
87940
87940-58151 Mirror Assy, Outer Rear View, Lh[10.2011 -] ATH20,GGH20..RHD;ANH20..RHD..350G; ANH20..350X THAILAND SPEC |
87940-58151 |
US $939.12 |
||
|
87944
|
87944
87944-58020-A0 Cover, Front Fender Side View Device, Lh[04.2008 - 10.2011] ANH20,GGH20..RHD WHITE PEARL CS.,070 |
87944-58020-A0 |
US $9.86 |
||
|
87944
|
87944
87944-58020-B1 Cover, Front Fender Side View Device, Lh[04.2008 - 10.2011] ANH20,GGH20..RHD..(350G,350X) SILVER ME.,1F7 |
87944-58020-B1 |
US $9.86 |
||
|
87944
|
87944
87944-58020-C0 Cover, Front Fender Side View Device, Lh[04.2008 - 10.2011] ANH20,GGH20..RHD BLACK,202 |
87944-58020-C0 |
US $9.86 |
||
|
87944
|
87944
87944-58020-E0 Cover, Front Fender Side View Device, Lh[04.2008 - 10.2011] ANH20..07S..CVFC;GGH20..RHD..350G BEIGE ME.,4T8 |
87944-58020-E0 |
US $9.86 |
||
|
87944
|
87944
87944-58020-E1 Cover, Front Fender Side View Device, Lh[04.2008 - 10.2011] ANH20..07S..CVFC;GGH20..RHD..(350G,350S)..ALPHD GOLD PEARL CS.,4U1 |
87944-58020-E1 |
US $9.86 |
||
|
87944
|
87944
87944-58020-J0 Cover, Front Fender Side View Device, Lh[04.2008 - 10.2011] ANH20..07S..CVFC;GGH20..RHD..(350G,350S)..ALPHD DK.BLUE MC.,8S6 |
87944-58020-J0 |
US $9.86 |
||
|
87945
|
87945
87945-28060-A1 Cover, Outer Mirror, Lh[04.2008 - 10.2011] ANH20,GGH20..RHD;ANH20,GGH20..GCC WHITE PEARL CS.,070 |
87945-28060-A1 |
from US $36.39 |
||
|
87945
|
87945
87945-28060-B0 Cover, Outer Mirror, Lh[04.2008 - 10.2011] ANH20,GGH20..GCC;ANH20,GGH20..RHD..(350G,350X) SILVER ME.,1F7 |
87945-28060-B0 |
US $51.74 |
||
|
87945
|
87945
87945-28060-C0 Cover, Outer Mirror, Lh[04.2008 - 10.2011] ANH20,GGH20..RHD;ANH20,GGH20..GCC BLACK,202 |
87945-28060-C0 |
from US $40.33 |
||
|
87945
|
87945
87945-28060-E1 Cover, Outer Mirror, Lh[04.2008 - 10.2011] ANH20..07S..CVFC;ANH20,GGH20..GCC;GGH20..RHD..350G BEIGE ME.,4T8 |
87945-28060-E1 |
US $41.50 |
||
|
87945
|
87945
87945-28060-E2 Cover, Outer Mirror, Lh[04.2008 - 10.2011] ANH20..07S..CVFC;ANH20,GGH20..GCC;GGH20..RHD..(350G,350S)..ALPHD GOLD PEARL CS.,4U1 |
87945-28060-E2 |
US $62.16 |
||
|
87945
|
87945
87945-28060-J0 Cover, Outer Mirror, Lh[04.2008 - 10.2011] ANH20..07S..CVFC;ANH20,GGH20..GCC;GGH20..RHD..(350G,350S)..ALPHD DK.BLUE MC.,8S6 |
87945-28060-J0 |
US $41.50 |
||
|
87946
|
87946
87946-58050 Retractor, Outer Mirror, Rh[10.2008 - 10.2011] ANH20..350S,350X |
87946-58050 |
US $375.96 |
||
|
87946
|
87946
87946-58090 Retractor, Outer Mirror, Rh[06.2009 - 10.2011] GGH20..350X; ANH20..350X THAILAND SPEC |
87946-58090 |
US $375.96 |
||
|
87948
|
87948
87948-58150 Cover, Outer Mirror Hole, LhOUTER MIRROR HOLE, LH [04.2008 - 10.2011] ANH20,GGH20..RHD;ANH20,GGH20..GCC |
87948-58150 |
US $2.15 |
||
|
87948A
|
87948A
87948-58070 Cover, Outer Mirror Hole, Lh[04.2008 - 10.2011] ANH20,GGH20..RHD |
87948-58070 |
US $9.86 |
||
|
87950
|
87950
87950-58020 Mirror Assy, Outer Under Rear View[04.2008 - 10.2011] ANH20..CVFC;GGH20..RHD..(350G,350S) REAR UNDER MIRROR-WITH |
87950-58020 |
US $133.95 |
||
|
87961
|
87961
87961-58070 Mirror Outer, Lh[04.2008 - 10.2011] ANH20,GGH20..RHD |
87961-58070 |
US $145.96 |
||
|
87961
|
87961
87961-58071 Mirror Outer, Lh[10.2011 -] ANH20,ATH20,GGH20..RHD |
87961-58071 |
US $145.96 |
||
|
87966
|
87966
87966-58070 Retractor, Outer Mirror, Lh[10.2008 - 10.2011] ANH20..350S,350X |
87966-58070 |
US $375.96 |
||
|
87966
|
87966
87966-58150 Retractor, Outer Mirror, Lh[06.2009 - 10.2011] GGH20..350X; ANH20..350X THAILAND SPEC |
87966-58150 |
US $375.96 |
||
|
87973
|
87973
87973-58020 Cover, Outer Under Rr View Mirror[04.2008 - 10.2011] ANH20..CVFC;GGH20..RHD..(350G,350S) REAR UNDER MIRROR-WITH |
87973-58020 |
US $3.49 |
||
|
9014860057
|
9014860057
90148-60057 Screw |
90148-60057 |
US $1.08 |
||
|
9015960275
|
9015960275
90159-60275 New Genuine Part |
90159-60275 |
US $1.51 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.66 |
