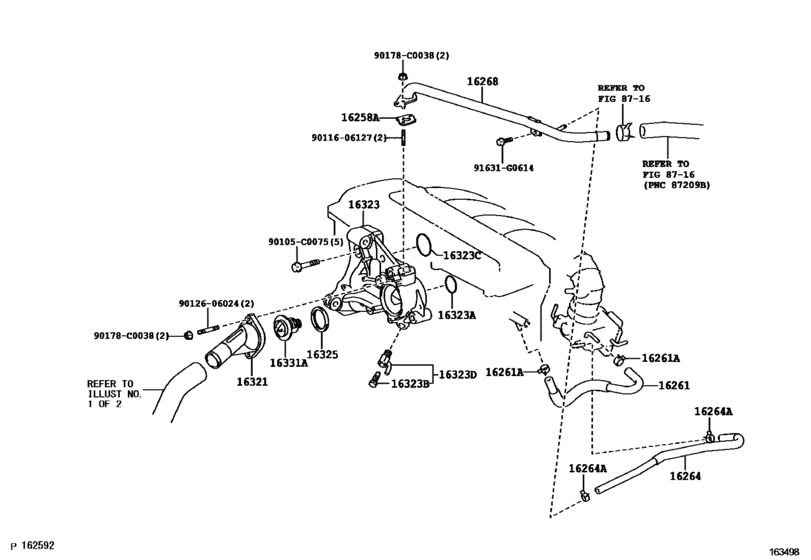

Radiator & Water Outlet ([06.2009 - ] *194 (0906- )2AZFE..RHD) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2009 - 2015
- Sales region
- General
- Frame
- ANH20
- grade
- 350X
- ENGINE
- 2AZFE
- DESTINATION
- GEN
- Model
- Alphard II
- From
- 06.2009
- To
- 01.2015
- Gear Shift Type
- CVFC
- Seating Capacity
- 07S
- Vehicle Model
- Alphard
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16258A
|
16258A
16258-0H040
Gasket(For Heater Return)
[06.2009 - 10.2011] 2AZFE..ANH20..CVFC (L),*194 |
16258-0H040 |
— | ||
|
16258A
|
16258A
16258-28030 Gasket(For Heater Return)[06.2009 - 10.2011] 2AZFE..ANH20..CVFC *195; 2AZFE..ANH20..CVFC (J),*194 |
16258-28030 |
from US $2.67 |
||
|
16261
|
16261
16261-28090 Hose, Water By-Pass[06.2009 - 10.2011] 2AZFE..ANH20 |
16261-28090 |
from US $5.23 |
||
|
16261A
|
16261A
96135-51300 Clamp, Hose[06.2009 - 10.2011] 2AZFE..ANH20 |
96135-51300 |
from US $2.13 |
||
|
16264
|
16264
16264-28120 Hose, Water By-Pass, No.2[06.2009 - 10.2011] 2AZFE..ANH20 |
16264-28120 |
from US $7.80 |
||
|
16264A
|
16264A
96135-51300 Clamp, Hose[06.2009 - 10.2011] 2AZFE..ANH20 |
96135-51300 |
from US $2.13 |
||
|
16268
|
16268
16268-28010 Pipe, Water By-Pass, No.1[06.2009 - 10.2011] 2AZFE..ANH20..CVFC *195 |
16268-28010 |
US $43.80 |
||
|
16268
|
16268
16268-28070 Pipe, Water By-Pass, No.1[06.2009 - 10.2011] 2AZFE..ANH20..CVFC *194 |
16268-28070 |
US $40.91 |
||
|
16268
|
16268
16268-28100
Pipe, Water By-Pass, No.1
[09.2012 -] 2AZFE..ANH20..350X THAILAND SPEC |
16268-28100 |
— | ||
|
16321
|
16321
16321-0H060 Inlet, Water[06.2009 - 10.2011] 2AZFE..ANH20..CVFC *194 |
16321-0H060 |
US $45.86 |
||
|
16321
|
16321
16321-28020 Inlet, Water[06.2009 - 10.2011] 2AZFE..ANH20 *195; 2AZFE..ANH20..CVFC *195 |
16321-28020 |
from US $28.06 |
||
|
16323
|
16323
16323-0H010 Housing, Water Inlet[06.2009 - 10.2011] 2AZFE..ANH20..CVFC *194 |
16323-0H010 |
US $147.06 |
||
| replacement | |||||
|
16323
|
16323
16323-0H011 Housing, Water Inlet[06.2009 - 10.2011] 2AZFE..ANH20..CVFC *194 |
16323-0H011 |
US $147.06 |
||
|
16323A
|
16323A
90301-C0029 Gasket(For Water Inlet Housing)[06.2009 - 10.2011] 2AZFE..ANH20..CVFC *194 |
90301-C0029 |
US $12.96 |
||
|
16323B
|
16323B
90910-09087 Plug, Water Drain Cock(For Cylinder Block)[06.2009 - 10.2011] 2AZFE..ANH20..CVFC *194 |
90910-09087 |
from US $3.02 |
||
|
16323C
|
16323C
90301-C0030
Ring, O(For Water Inlet Housing)
[06.2009 - 10.2011] 2AZFE..ANH20..CVFC *194 |
90301-C0030 |
— | ||
|
16323D
|
16323D
90910-09129 Cock Sub-Assy, Water Drain(For Cylinder Block)[06.2009 - 10.2011] 2AZFE..ANH20..CVFC *194 |
90910-09129 |
from US $6.63 |
||
|
16325
|
16325
16325-0H030
Gasket, Water Inlet Housing, No.1
[06.2009 - 10.2011] 2AZFE..ANH20..CVFC (L),*194 |
16325-0H030 |
— | ||
|
16325
|
16325
16325-28010 Gasket, Water Inlet Housing, No.1[06.2009 - 10.2011] 2AZFE..ANH20 *195; 2AZFE..ANH20..CVFC (J),*194; 2AZFE..ANH20..CVFC *195 |
16325-28010 |
from US $3.92 |
||
|
16331A
|
16331A
90916-03136 Thermostat[06.2009 - 10.2011] 2AZFE..ANH20 *WAX 82-95,*195; 2AZFE..ANH20..CVFC *WAX 82-95,(J),*194; 2AZFE..ANH20..CVFC *WAX 82-95,*195 |
90916-03136 |
from US $19.83 |
||
|
16331A
|
16331A
90916-C3001
Thermostat
[06.2009 - 10.2011] 2AZFE..ANH20..CVFC *WAX 82-95,(L),*194 |
90916-C3001 |
— | ||
|
90105C0075
|
90105C0075
90105-C0075
New Genuine Part
|
90105-C0075 |
— | ||
|
90178C0038
|
90178C0038
90178-C0038 New Genuine Part |
90178-C0038 |
US $1.46 |
||
|
91631G0614
|
91631G0614
91631-G0614 BOT WWASHER |
91631-G0614 |
from US $0.86 |
||
|
9011606127
|
9011606127
90116-06127 Bolt, Stud(For Oil Pan) |
90116-06127 |
from US $0.78 |
||
|
9012606024
|
9012606024
90126-06024 STUD HEX LOBULAR |
90126-06024 |
US $1.79 |
||
