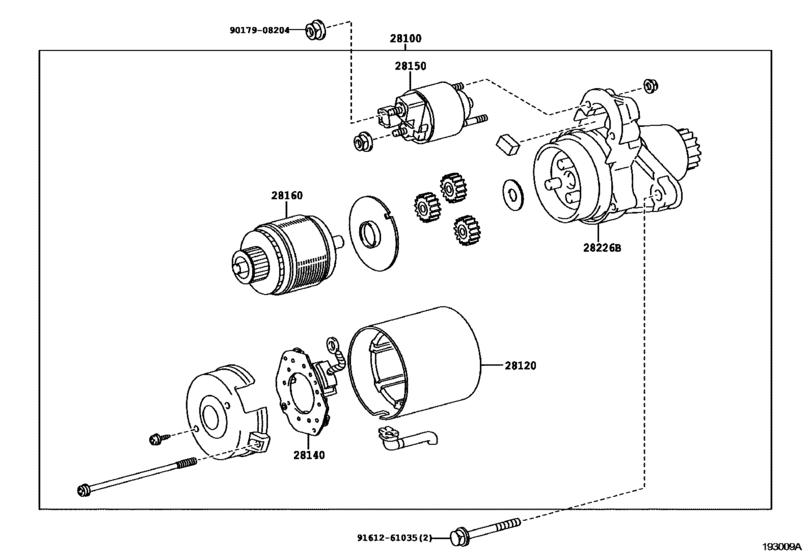

Starter ([06.2009 - ] 12V 1.6KW (0906- )2AZFE..RHD ; (0906- )2AZFE..4FC) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2009 - 2015
- Sales region
- General
- Frame
- ANH20
- grade
- 350X
- ENGINE
- 2AZFE
- DESTINATION
- GEN
- Model
- Alphard II
- From
- 06.2009
- To
- 01.2015
- Gear Shift Type
- CVFC
- Seating Capacity
- 07S
- Vehicle Model
- Alphard
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28100
|
28100
28100-31090 Starter Assy[06.2009 - 10.2011] 2AZFE..ANH20..GCC;2AZFE..ANH20..CVFC 12V 1.6KW |
28100-31090 |
US $885.25 |
||
|
28120
|
28120
28120-31090
Yoke Assy, Starter
[06.2009 - 10.2011] 2AZFE..ANH20..GCC;2AZFE..ANH20..CVFC |
28120-31090 |
— | ||
|
28140
|
28140
28140-31090 Holder Assy, Starter Brush[06.2009 - 10.2011] 2AZFE..ANH20..GCC;2AZFE..ANH20..CVFC |
28140-31090 |
US $18.70 |
||
|
28150
|
28150
28150-31090 Switch Assy, Magnet Starter[06.2009 - 10.2011] 2AZFE..ANH20..GCC;2AZFE..ANH20..CVFC |
28150-31090 |
US $147.06 |
||
|
28160
|
28160
28160-37050 Armature Assy, Starter[06.2009 - 10.2011] 2AZFE..ANH20..GCC;2AZFE..ANH20..CVFC |
28160-37050 |
US $176.18 |
||
|
28226B
|
28226B
28226-31090
Starter Kit, Repair Service
[06.2009 - 10.2011] 2AZFE..ANH20..GCC;2AZFE..ANH20..CVFC |
28226-31090 |
— | ||
|
9017908204
|
9017908204
90179-08204 Nut |
90179-08204 |
from US $1.07 |
||
| replacement | |||||
|
9017908204
|
9017908204
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.90 |
||
|
9161261035
|
9161261035
91612-61035 Bolt(For Hybrid Vehicle Transaxle & Engine Setting) |
91612-61035 |
from US $1.13 |
||
