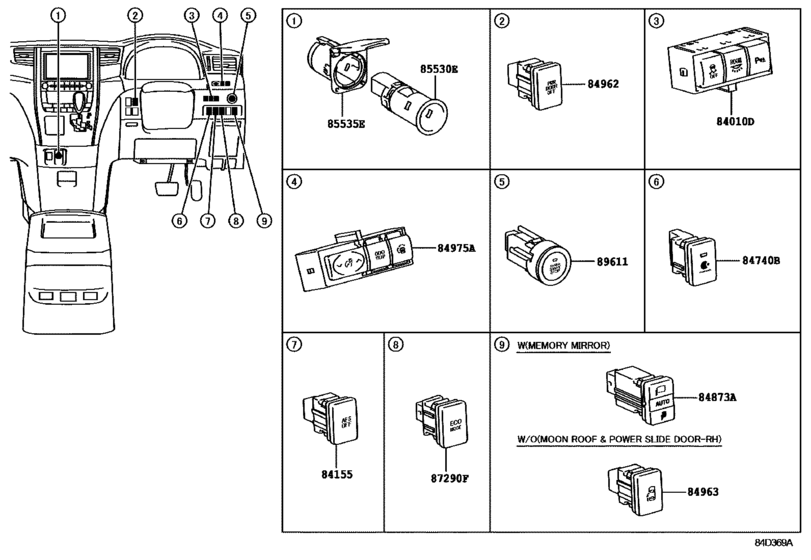

Switch & Relay & Computer ([10.2011 - ] INSTRUMENT PANEL (1110- )ANH20,GGH20..RHD) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2009 - 2015
- Sales region
- General
- Frame
- ANH20
- grade
- 350X
- ENGINE
- 2AZFE
- DESTINATION
- GEN
- Model
- Alphard II
- From
- 06.2009
- To
- 01.2015
- Gear Shift Type
- CVFC
- Seating Capacity
- 07S
- Vehicle Model
- Alphard
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84010D
|
84010D
84010-58090 Control & Panel Assy, Integration[04.2008 - 10.2011] ANH20,GGH20 |
84010-58090 |
US $90.27 |
||
|
84010D
|
84010D
84010-58230 Control & Panel Assy, Integration[10.2011 -] ANH20,GGH20 |
84010-58230 |
US $82.99 |
||
|
84740B
|
84740B
84741-52010 Switch Assy, Air Purifier[10.2011 - 01.2015] GGH20;ANH20,ATH20..350G; ANH20..350X THAILAND SPEC |
84741-52010 |
US $21.99 |
||
| replacement | |||||
|
84740B
|
84740B
84741-52011 Switch Assy, Air Purifier[10.2011 - 01.2015] GGH20;ANH20,ATH20..350G; ANH20..350X THAILAND SPEC |
84741-52011 |
US $19.95 |
||
|
84873A
|
84873A
84873-58020 Switch, Retractable Outer Mirror[06.2009 - 10.2011] GGH20..350X; ANH20..350X THAILAND SPEC |
84873-58020 |
US $51.51 |
||
|
84962
|
84962
84962-28010 Switch, Power Slide Door Main[04.2008 - 10.2011] ANH20,GGH20 |
84962-28010 |
US $34.36 |
||
| replacement | |||||
|
84962
|
84962
84962-28011 Switch, Power Slide Door Main[04.2008 - 10.2011] ANH20,GGH20 |
84962-28011 |
US $51.58 |
||
|
84962
|
84962
84962-28011 Switch, Power Slide Door Main[12.2014 - 01.2015] ANH20,ATH20,GGH20 |
84962-28011 |
US $51.58 |
||
|
84963
|
84963
84963-28010 Switch Assy, Auto Slide Door Control[06.2009 - 10.2011] ANH20..350S,350X |
84963-28010 |
US $34.36 |
||
| replacement | |||||
|
84963
|
84963
84963-28011 Switch Assy, Auto Slide Door Control[06.2009 - 10.2011] ANH20..350S,350X |
84963-28011 |
US $38.98 |
||
|
84963
|
84963
84963-58010 Switch Assy, Auto Slide Door Control[10.2011 - 05.2012] ANH20..350X |
84963-58010 |
US $52.56 |
||
| replacement | |||||
|
84963
|
84963
84963-58011 Switch Assy, Auto Slide Door Control[10.2011 - 05.2012] ANH20..350X |
84963-58011 |
US $44.86 |
||
|
84975A
|
84975A
84975-58020 Trip & Rheostat Switch Assy[04.2008 - 10.2011] ANH20,GGH20 |
84975-58020 |
US $55.47 |
||
|
85530E
|
85530E
85530-42010 Socket Assy, Power Outlet, No.1[04.2008 - 10.2011] ANH20,GGH20..RHD |
85530-42010 |
from US $26.27 |
||
|
85535E
|
85535E
85535-50020 Cover, Power Outlet Socket, No.1[04.2008 - 10.2011] ANH20,GGH20..RHD |
85535-50020 |
from US $5.91 |
||
|
89611
|
89611
89611-52011 Switch, Push Start[04.2008 - 01.2010] ANH20,GGH20 |
89611-52011 |
US $163.07 |
||
| replacement | |||||
|
89611
|
89611
89611-52015 Switch, Push Start[04.2008 - 01.2010] ANH20,GGH20 |
89611-52015 |
from US $160.06 |
||
|
89611
|
89611
89611-52012 Switch, Push StartPUSH START [02.2010 - 06.2011] ANH20,GGH20 |
89611-52012 |
US $163.07 |
||
| replacement | |||||
|
89611
|
89611
89611-52015 Switch, Push Start[02.2010 - 06.2011] ANH20,GGH20 |
89611-52015 |
from US $160.06 |
||
|
89611
|
89611
89611-52013 Switch, Push Start[07.2011 - 10.2011] ANH20,GGH20 |
89611-52013 |
US $163.07 |
||
| replacement | |||||
|
89611
|
89611
89611-52015 Switch, Push Start[07.2011 - 10.2011] ANH20,GGH20 |
89611-52015 |
from US $160.06 |
||
|
89611
|
89611
89611-52014
Switch, Push Start
[03.2012 -] ANH20,GGH20 |
89611-52014 |
— | ||
| replacement | |||||
|
89611
|
89611
89611-52015 Switch, Push Start[03.2012 -] ANH20,GGH20 |
89611-52015 |
from US $160.06 |
||
