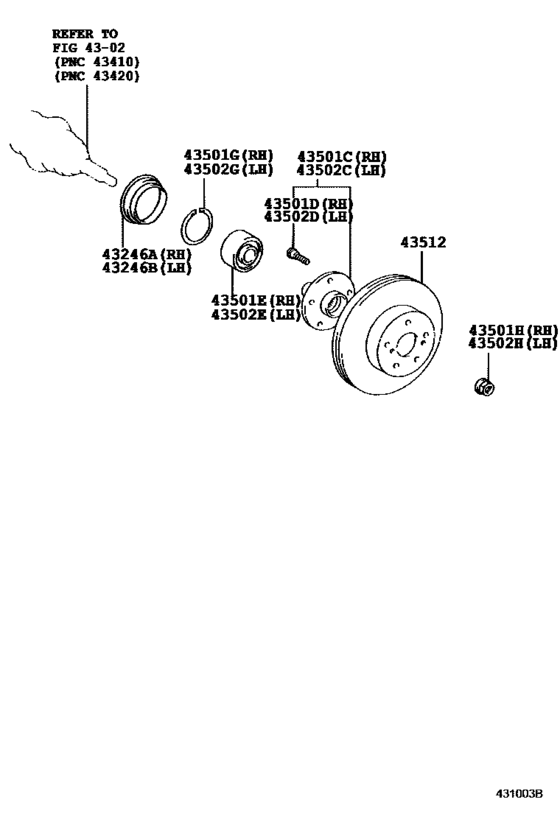

Front Axle Hub ([07.2003 - ] (0307- )) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2003 - 2008
- Sales region
- Japan
- Frame
- ATH10
- ENGINE
- 2AZFXE
- Model
- Alphard I
- From
- 07.2003
- To
- 04.2008
- Seating Capacity
- 08S
- Vehicle Model
- Alphard Hybrid
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
43246A
|
43246A
43246-28020 Deflector, Front Wheel Bearing Dust, No.1 Rh[07.2003 -] ATH10 |
43246-28020 |
from US $12.48 |
||
|
43246B
|
43246B
43246-28020 Deflector, Front Wheel Bearing Dust, No.1 Rh[07.2003 -] ATH10 |
43246-28020 |
from US $12.48 |
||
|
43501C
|
43501C
43502-28090 Hub Sub-Assy, Front Axle[07.2003 - 04.2008] ATH10 |
43502-28090 |
from US $105.98 |
||
|
43501D
|
43501D
90942-02049 Bolt, Hub[07.2003 -] ATH10 |
90942-02049 |
US $3.84 |
||
| replacement | |||||
|
43501D
|
43501D
90942-02082 Bolt, Hub[07.2003 -] ATH10 |
90942-02082 |
from US $2.46 |
||
|
43501E
|
43501E
90369-45003 Bearing (For Front Axle Hub)[07.2003 -] ATH10 |
90369-45003 |
from US $64.27 |
||
|
43501G
|
43501G
90520-77001 Ring, Snap[07.2003 -] ATH10 |
90520-77001 |
from US $3.18 |
||
|
43501H
|
43501H
90177-22001 Nut (For Axle Shaft)[07.2003 -] ATH10 |
90177-22001 |
from US $2.42 |
||
|
43502C
|
43502C
43502-28090 Hub Sub-Assy, Front Axle[07.2003 -] ATH10 |
43502-28090 |
from US $105.98 |
||
|
43502D
|
43502D
90942-02049 Bolt, Hub[07.2003 -] ATH10 |
90942-02049 |
US $3.84 |
||
| replacement | |||||
|
43502D
|
43502D
90942-02082 Bolt, Hub[07.2003 -] ATH10 |
90942-02082 |
from US $2.46 |
||
|
43502E
|
43502E
90369-45003 Bearing (For Front Axle Hub)[07.2003 -] ATH10 |
90369-45003 |
from US $64.27 |
||
|
43502G
|
43502G
90520-77001 Ring, Snap[07.2003 -] ATH10 |
90520-77001 |
from US $3.18 |
||
|
43502H
|
43502H
90177-22001 Nut (For Axle Shaft)[07.2003 -] ATH10 |
90177-22001 |
from US $2.42 |
||
|
43512
|
43512
43512-58010
Disc, Front
[07.2003 - 09.2004] ATH10 |
43512-58010 |
— | ||
| replacement | |||||
|
43512
|
43512
43512-58011 Disc, Front[07.2003 - 09.2004] ATH10 |
43512-58011 |
from US $217.44 |
||
|
43512
|
43512
43512-58011 Disc, Front[09.2004 - 04.2008] ATH10 |
43512-58011 |
from US $217.44 |
||
