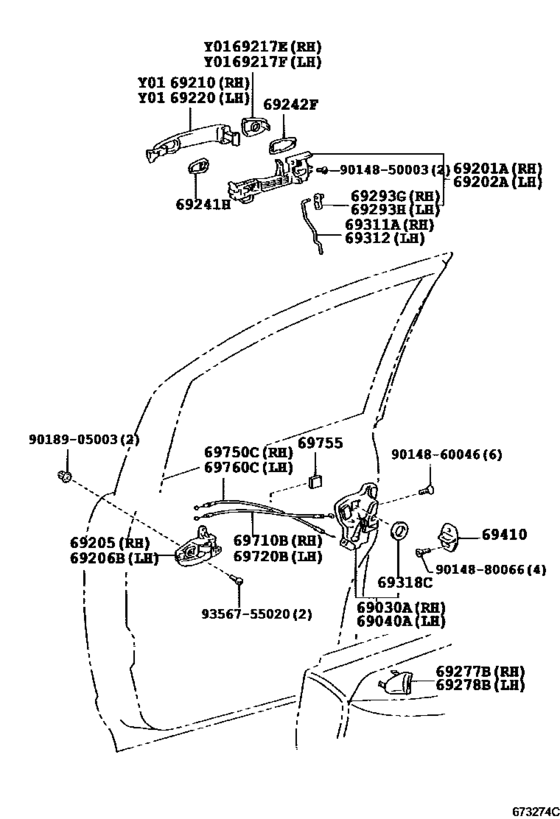

Front Door Lock & Handle ([07.2003 - ] (0307- )) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2003 - 2008
- Sales region
- Japan
- Frame
- ATH10
- ENGINE
- 2AZFXE
- Model
- Alphard I
- From
- 07.2003
- To
- 04.2008
- Seating Capacity
- 08S
- Vehicle Model
- Alphard Hybrid
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69030A
|
69030A
69030-33241 Lock Assy, Front Door W/motor, Rh[07.2003 -] ATH10 |
69030-33241 |
US $259.20 |
||
|
69040A
|
69040A
69040-58010 Lock Assy, Front Door W/motor, Lh[07.2003 - 04.2005] ATH10 |
69040-58010 |
US $220.15 |
||
|
69040A
|
69040A
69040-60170 Lock Assy, Front Door W/motor, Lh[04.2005 -] ATH10 |
69040-60170 |
US $200.93 |
||
|
69201A
|
69201A
69201-28010 Frame Sub-Assy, Front Door Outside Handle, Rh[07.2003 -] ATH10 |
69201-28010 |
US $66.12 |
||
|
69202A
|
69202A
69202-28010 Frame Sub-Assy, Front Door Outside Handle, Lh[07.2003 -] ATH10 |
69202-28010 |
US $66.12 |
||
|
69205
|
69205
69205-20180-E0 Handle Sub-Assy, Front Door Inside, Rh[07.2003 - 04.2008] ATH10 ORCHID BROWN,TRIM0# |
69205-20180-E0 |
US $40.91 |
||
|
69206B
|
69206B
69206-20180-E0 Handle Sub-Assy, Front Door Inside, Lh[07.2003 - 04.2008] ATH10 ORCHID BROWN,TRIM0# |
69206-20180-E0 |
US $40.91 |
||
|
69210
|
69210
69210-58010 Handle Assy, Front Door, Outside Rh[04.2005 -] ATH10 ＊ＣＲ |
69210-58010 |
from US $32.47 |
||
|
69210
|
69210
69211-28070-A1 Handle Assy, Front Door, Outside Rh[07.2003 - 04.2005] ATH10 WHITE PM.,042 |
69211-28070-A1 |
US $35.38 |
||
|
69210
|
69210
69211-28070-B2 Handle Assy, Front Door, Outside Rh[07.2003 - 04.2005] ATH10 SILVER ME.,1C0 |
69211-28070-B2 |
US $35.38 |
||
|
69210
|
69210
69211-28070-C0 Handle Assy, Front Door, Outside Rh[07.2003 - 04.2005] ATH10 BLACK MC.,209 |
69211-28070-C0 |
US $24.46 |
||
|
69210
|
69210
69211-28070-K0 Handle Assy, Front Door, Outside Rh[07.2003 - 04.2005] ATH10 LT.PURPLE ME.,942 |
69211-28070-K0 |
US $35.38 |
||
|
69210
|
69210
69211-28070-R0 Handle Assy, Front Door, Outside Rh[07.2003 - 04.2005] ATH10 PALE BLUE M.M.,8R0 |
69211-28070-R0 |
US $35.38 |
||
| replacement | |||||
|
69210
|
69210
69211-28070-J8 Handle Assy, Front Door, Outside Rh[07.2003 - 04.2005] ATH10 PALE BLUE M.M.,8R0 |
69211-28070-J8 |
US $35.38 |
||
|
69217E
|
69217E
69217-28010-A1 Cover, Front Door Outside Handle, Rh[07.2003 - 04.2005] ATH10 WHITE PM.,042 |
69217-28010-A1 |
US $7.43 |
||
|
69217E
|
69217E
69217-28010-B2 Cover, Front Door Outside Handle, Rh[07.2003 - 04.2005] ATH10 SILVER ME.,1C0 |
69217-28010-B2 |
US $7.43 |
||
|
69217E
|
69217E
69217-28010-C0 Cover, Front Door Outside Handle[07.2003 - 04.2005] ATH10 BLACK MC.,209 |
69217-28010-C0 |
US $5.10 |
||
|
69217E
|
69217E
69217-28010-K0 Cover, Front Door Outside Handle, Rh[07.2003 - 04.2005] ATH10 LT.PURPLE ME.,942 |
69217-28010-K0 |
US $7.43 |
||
|
69217E
|
69217E
69217-28010-R0 Cover, Front Door Outside Handle, Rh[07.2003 - 04.2005] ATH10 PALE BLUE M.M.,8R0 |
69217-28010-R0 |
US $7.43 |
||
| replacement | |||||
|
69217E
|
69217E
69217-28010-J8 Cover, Front Door Outside Handle, Rh[07.2003 - 04.2005] ATH10 PALE BLUE M.M.,8R0 |
69217-28010-J8 |
US $7.43 |
||
|
69217E
|
69217E
69217-58010 Cover, Front Door Outside Handle[04.2005 -] ATH10 ＊ＣＲ |
69217-58010 |
from US $6.32 |
||
|
69217F
|
69217F
69217-28010-A1 Cover, Front Door Outside Handle, Rh[07.2003 - 04.2005] ATH10 WHITE PM.,042 |
69217-28010-A1 |
US $7.43 |
||
|
69217F
|
69217F
69217-28010-B2 Cover, Front Door Outside Handle, Rh[07.2003 - 04.2005] ATH10 SILVER ME.,1C0 |
69217-28010-B2 |
US $7.43 |
||
|
69217F
|
69217F
69217-28010-C0 Cover, Front Door Outside Handle[07.2003 - 04.2005] ATH10 BLACK MC.,209 |
69217-28010-C0 |
US $5.10 |
||
|
69217F
|
69217F
69217-28010-K0 Cover, Front Door Outside Handle, Rh[07.2003 - 04.2005] ATH10 LT.PURPLE ME.,942 |
69217-28010-K0 |
US $7.43 |
||
|
69217F
|
69217F
69217-28010-R0 Cover, Front Door Outside Handle, Rh[07.2003 - 04.2005] ATH10 PALE BLUE M.M.,8R0 |
69217-28010-R0 |
US $7.43 |
||
| replacement | |||||
|
69217F
|
69217F
69217-28010-J8 Cover, Front Door Outside Handle, Rh[07.2003 - 04.2005] ATH10 PALE BLUE M.M.,8R0 |
69217-28010-J8 |
US $7.43 |
||
|
69217F
|
69217F
69217-58010 Cover, Front Door Outside Handle[04.2005 -] ATH10 ＊ＣＲ |
69217-58010 |
from US $6.32 |
||
|
69220
|
69220
69210-58010 Handle Assy, Front Door, Outside Rh[04.2005 -] ATH10 ＊ＣＲ |
69210-58010 |
from US $32.47 |
||
|
69220
|
69220
69211-28070-A1 Handle Assy, Front Door, Outside Rh[07.2003 - 04.2005] ATH10 WHITE PM.,042 |
69211-28070-A1 |
US $35.38 |
||
|
69220
|
69220
69211-28070-B2 Handle Assy, Front Door, Outside Rh[07.2003 - 04.2005] ATH10 SILVER ME.,1C0 |
69211-28070-B2 |
US $35.38 |
||
|
69220
|
69220
69211-28070-C0 Handle Assy, Front Door, Outside Rh[07.2003 - 04.2005] ATH10 BLACK MC.,209 |
69211-28070-C0 |
US $24.46 |
||
|
69220
|
69220
69211-28070-K0 Handle Assy, Front Door, Outside Rh[07.2003 - 04.2005] ATH10 LT.PURPLE ME.,942 |
69211-28070-K0 |
US $35.38 |
||
|
69220
|
69220
69211-28070-R0 Handle Assy, Front Door, Outside Rh[07.2003 - 04.2005] ATH10 PALE BLUE M.M.,8R0 |
69211-28070-R0 |
US $35.38 |
||
| replacement | |||||
|
69220
|
69220
69211-28070-J8 Handle Assy, Front Door, Outside Rh[07.2003 - 04.2005] ATH10 PALE BLUE M.M.,8R0 |
69211-28070-J8 |
US $35.38 |
||
|
69241H
|
69241H
69241-28060 Pad, Front Door Outside Handle, Rh[07.2003 -] ATH10 |
69241-28060 |
from US $0.90 |
||
|
69242F
|
69242F
69242-28020 Pad, Rear Door Outside Handle, Front[07.2003 -] ATH10 |
69242-28020 |
US $8.64 |
||
|
69277B
|
69277B
69297-24020-C0 Bezel, Front Door Inside Handle, Rh[07.2003 - 04.2008] ATH10 BLACK,TRIM0# |
69297-24020-C0 |
US $4.89 |
||
|
69278B
|
69278B
69298-24020-C0 Bezel, Front Door Inside Handle, Lh[07.2003 - 04.2008] ATH10 BLACK,TRIM0# |
69298-24020-C0 |
US $4.40 |
||
|
69293G
|
69293G
69293-12030 Snap, Front Door Outside Handle[07.2003 -] ATH10 |
69293-12030 |
from US $2.09 |
||
|
69293H
|
69293H
69293-12040 Snap, Front Door Outside Handle[07.2003 -] ATH10 |
69293-12040 |
from US $2 |
||
|
69311A
|
69311A
69311-58010 Rod, Front Door Lock Open, Rh[07.2003 -] ATH10 |
69311-58010 |
US $9.17 |
||
|
69312
|
69312
69312-58010 Rod, Front Door Lock Open, Lh[07.2003 -] ATH10 |
69312-58010 |
US $9.17 |
||
|
69318C
|
69318C
69318-51010 Seal, Front Door Lock Hole, Rh[07.2003 -] ATH10 |
69318-51010 |
from US $1.64 |
||
|
69410
|
69410
69410-33010 Plate Assy, Front Door Lock Striker[07.2003 -] ATH10 |
69410-33010 |
from US $18.62 |
||
|
69710B
|
69710B
69710-58010 Cable Assy, Front Door Lock Remote Control, Rh[07.2003 -] ATH10 |
69710-58010 |
US $21.69 |
||
|
69720B
|
69720B
69710-58010 Cable Assy, Front Door Lock Remote Control, Rh[07.2003 -] ATH10 |
69710-58010 |
US $21.69 |
||
|
69750C
|
69750C
69750-58010 Cable Assy, Front Door Inside Locking, Rh[07.2003 -] ATH10 |
69750-58010 |
US $25.04 |
||
|
69755
|
69755
69759-58010 Silencer, Front Door Lock Link[07.2003 -] ATH10 |
69759-58010 |
US $3.93 |
||
|
69760C
|
69760C
69750-58010 Cable Assy, Front Door Inside Locking, Rh[07.2003 -] ATH10 |
69750-58010 |
US $25.04 |
||
|
9014850003
|
9014850003
90148-50003 Screw Hex Lobular |
90148-50003 |
from US $0.70 |
||
|
9014860046
|
9014860046
90148-60046 New Genuine Part |
90148-60046 |
US $0.84 |
||
|
9014880066
|
9014880066
90148-80066 SCREW HEXALOBULAR |
90148-80066 |
from US $0.68 |
||
|
9018905003
|
9018905003
90189-05003 CLIP |
90189-05003 |
from US $1.19 |
||
|
9356755020
|
9356755020
93567-55020 SCREW |
93567-55020 |
US $1.12 |
||
