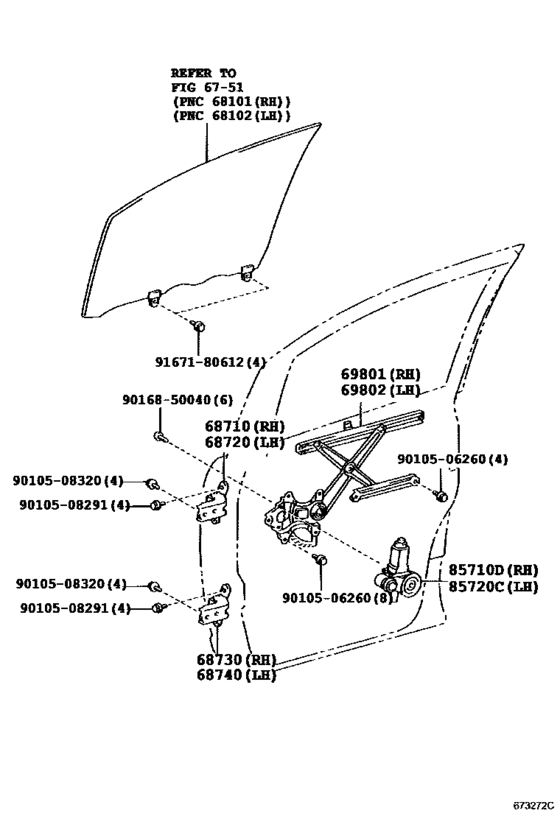

Front Door Window Regulator & Hinge ([07.2003 - ] (0307- )) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2003 - 2008
- Sales region
- Japan
- Frame
- ATH10
- ENGINE
- 2AZFXE
- Model
- Alphard I
- From
- 07.2003
- To
- 04.2008
- Seating Capacity
- 08S
- Vehicle Model
- Alphard Hybrid
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68710
|
68710
68710-58010 Hinge Assy, Front Door, Upper Rh[07.2003 - 04.2008] ATH10 |
68710-58010 |
US $44.76 |
||
|
68720
|
68720
68720-58010 Hinge Assy, Front Door, Upper Lh[07.2003 - 04.2008] ATH10 |
68720-58010 |
US $44.76 |
||
|
68730
|
68730
68720-58010 Hinge Assy, Front Door, Upper Lh[07.2003 - 04.2008] ATH10 |
68720-58010 |
US $44.76 |
||
|
68740
|
68740
68710-58010 Hinge Assy, Front Door, Upper Rh[07.2003 - 04.2008] ATH10 |
68710-58010 |
US $44.76 |
||
|
69801
|
69801
69801-58010 Regulator Sub-Assy, Front Door Window, Rh[07.2003 -] ATH10 |
69801-58010 |
US $71.14 |
||
|
69802
|
69802
69802-58010 Regulator Sub-Assy, Front Door Window, Lh[07.2003 -] ATH10 |
69802-58010 |
US $71.14 |
||
|
85710D
|
85710D
85710-58010 Motor Assy, Power Window Regulator, Rh[07.2003 -] ATH10 |
85710-58010 |
from US $292.60 |
||
|
85720C
|
85720C
85720-58010 Motor Assy, Power Window Regulator, Rh[07.2003 -] ATH10 |
85720-58010 |
US $292.60 |
||
|
9010506260
|
9010506260
90105-06260 BOLT, WASHER BASED |
90105-06260 |
from US $0.25 |
||
|
9010508291
|
9010508291
90105-08291 BOLT |
90105-08291 |
from US $0.92 |
||
|
9010508320
|
9010508320
90105-08320 BOLT WASHER BASED |
90105-08320 |
US $1.44 |
||
|
9016850040
|
9016850040
90168-50040 SCREW TAPPING |
90168-50040 |
US $1.12 |
||
|
9167180612
|
9167180612
91671-80612 Bolt |
91671-80612 |
from US $0.68 |
