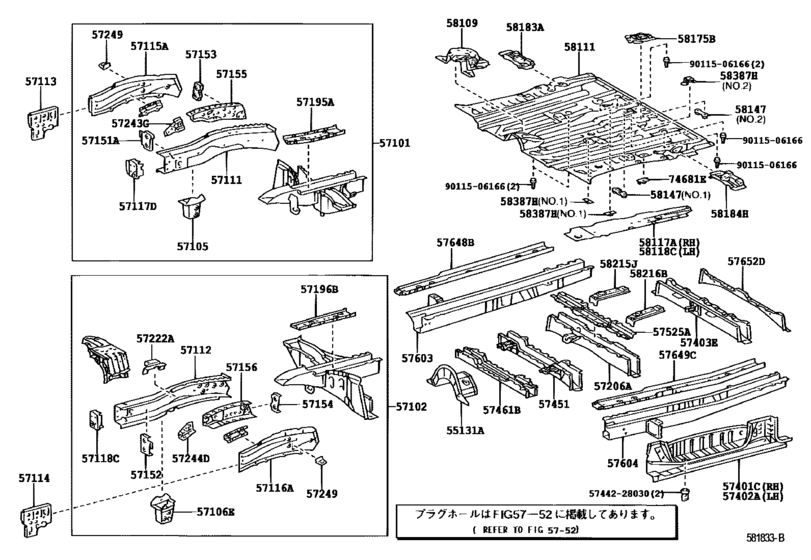

Front Floor Panel & Front Floor Member ([07.2003 - ] (0307- )) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2003 - 2008
- Sales region
- Japan
- Frame
- ATH10
- ENGINE
- 2AZFXE
- Model
- Alphard I
- From
- 07.2003
- To
- 04.2008
- Seating Capacity
- 08S
- Vehicle Model
- Alphard Hybrid
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55131A
|
55131A
55131-58010 Reinforcement, Dash Panel[07.2003 -] ATH10 |
55131-58010 |
US $52.85 |
||
|
57101
|
57101
57101-58010 Member Sub-Assy, Front Side, Rh[07.2003 -] ATH10 |
57101-58010 |
US $1,332.24 |
||
|
57102
|
57102
57102-58030 Member Sub-Assy, Front Side, Lh[07.2003 -] ATH10 |
57102-58030 |
US $1,389.02 |
||
|
57105
|
57105
57105-28120 Bracket Sub-Assy, Front Suspension Member Mounting, Front Rh[07.2003 -] ATH10 |
57105-28120 |
US $55.47 |
||
|
57106E
|
57106E
57106-28120 Plate Sub-Assy, Front Side Member, Lh[07.2003 -] ATH10 |
57106-28120 |
US $55.47 |
||
|
57111
|
57111
57111-28230 Member, Front Side, Rh[07.2003 -] ATH10 |
57111-28230 |
US $262.08 |
||
|
57112
|
57112
57112-28260 Member, Front Side, Lh[07.2003 -] ATH10 |
57112-28260 |
US $262.08 |
||
|
57113
|
57113
57113-58020 Extension, Front Side Member, Rh[07.2003 -] ATH10 |
57113-58020 |
US $52.85 |
||
|
57114
|
57114
57114-28070 Extension, Front Side Member, Lh[07.2003 -] ATH10 |
57114-28070 |
US $52.85 |
||
|
57115A
|
57115A
57115-28090 Plate, Front Side Member, Outer Rh[07.2003 -] ATH10 |
57115-28090 |
US $144.14 |
||
|
57116A
|
57116A
57116-28090 Plate, Front Side Member, Outer Lh[07.2003 -] ATH10 |
57116-28090 |
US $144.14 |
||
|
57117D
|
57117D
57117-58010 Retainer, Front Bumper Arm, Rh[07.2003 -] ATH10 |
57117-58010 |
US $43.39 |
||
|
57118C
|
57118C
57118-58010 Retainer, Front Bumper Arm, Lh[07.2003 -] ATH10 |
57118-58010 |
US $50.67 |
||
|
57151A
|
57151A
57151-28120 Reinforcement, Front Side Member, No.1 Rh[07.2003 -] ATH10 |
57151-28120 |
US $17.91 |
||
|
57152
|
57152
57152-28120 Reinforcement, Front Side Member, No.1 Lh[07.2003 -] ATH10 |
57152-28120 |
US $17.91 |
||
|
57153
|
57153
57153-28080 Reinforcement, Front Side Member, No.2 Rh[07.2003 -] ATH10 |
57153-28080 |
US $11.07 |
||
|
57154
|
57154
57154-28080 Reinforcement, Front Side Member, No.2 Lh[07.2003 -] ATH10 |
57154-28080 |
US $11.07 |
||
|
57155
|
57155
57155-28070 Reinforcement, Front Side Member, No.3, Rh[07.2003 -] ATH10 |
57155-28070 |
US $90.27 |
||
|
57156
|
57156
57156-28080 Reinforcement, Front Side Member, No.3, Lh[07.2003 -] ATH10 |
57156-28080 |
US $90.27 |
||
|
57195A
|
57195A
57195-58010 Reinforcement, Front Side Member, Front Rh[07.2003 -] ATH10 |
57195-58010 |
US $70.62 |
||
|
57196B
|
57196B
57196-58010 Reinforcement, Front Side Member, Front Lh[07.2003 -] ATH10 |
57196-58010 |
US $70.62 |
||
|
57206A
|
57206A
57206-58030 Member Sub-Assy, Front Floor Cross, No.2[07.2003 -] ATH10 |
57206-58030 |
US $216.94 |
||
|
57222A
|
57222A
57222-28040 Bracket, Front Side Member, Lh[07.2003 -] ATH10 |
57222-28040 |
US $14.56 |
||
|
57243G
|
57243G
57243-28070 Reinforcement, Front Side Member, No.6 Rh[07.2003 -] ATH10 |
57243-28070 |
US $22.57 |
||
|
57244D
|
57244D
57244-28040 Reinforcement, Front Side Member, No.6 Lh[07.2003 -] ATH10 |
57244-28040 |
US $24.46 |
||
|
57249
|
57249
57249-10040 Bracket, Front Side Member, Rh[07.2003 -] ATH10 |
57249-10040 |
US $4.37 |
||
|
57401C
|
57401C
57401-58010 Member Sub-Assy, Floor Side, Inner Rh[07.2003 -] ATH10 |
57401-58010 |
US $331.97 |
||
|
57402A
|
57402A
57402-58010 Member Sub-Assy, Floor Side, Inner Lh[07.2003 -] ATH10 |
57402-58010 |
US $331.97 |
||
|
57403E
|
57403E
57403-58030 Member Sub-Assy, Center Floor Cross, No.3[07.2003 -] ATH10 |
57403-58030 |
US $216.94 |
||
|
57451
|
57451
57408-58020 Member, Front Floor Cross[07.2003 -] ATH10 |
57408-58020 |
US $179.09 |
||
|
57461B
|
57461B
57407-58020 Member Sub-Assy, Center Floor Cross, No.1[07.2003 -] ATH10 |
57407-58020 |
US $216.94 |
||
|
57525A
|
57525A
57525-58010 Plate, Center Floor, No.1[07.2003 -] ATH10 |
57525-58010 |
US $57.66 |
||
|
57603
|
57603
57603-58010 Member Sub-Assy, Rear Floor Side, Front Rh[07.2003 -] ATH10 |
57603-58010 |
US $666.85 |
||
|
57604
|
57604
57604-58020 Member Sub-Assy, Rear Floor Side, Front Lh[07.2003 -] ATH10 |
57604-58020 |
US $666.85 |
||
|
57648B
|
57648B
57648-58010 Reinforce, Rear Floor Side Member, Rear Upper Rh[07.2003 -] ATH10 |
57648-58010 |
US $135.41 |
||
|
57649C
|
57649C
57649-58010 Reinforce, Rear Floor Side Member, Rear Upper Lh[07.2003 -] ATH10 |
57649-58010 |
US $135.41 |
||
|
57652D
|
57652D
57652-58010 Member, Rear Floor Cross, No.1[07.2003 -] ATH10 |
57652-58010 |
US $67.85 |
||
|
58109
|
58109
58109-58010 Bracket Sub-Assy, Instrument Panel Brace Mounting[07.2003 -] ATH10 |
58109-58010 |
US $87.36 |
||
|
58111
|
58111
58111-58030 Pan, Front Floor[07.2003 -] ATH10 |
58111-58030 |
US $559.10 |
||
|
58117A
|
58117A
58117-58010 Reinforcement, Front Floor Side, Rh[07.2003 -] ATH10 |
58117-58010 |
US $99.01 |
||
|
58118C
|
58118C
58118-58010 Reinforcement, Front Floor Side, Lh[07.2003 -] ATH10 |
58118-58010 |
US $99.01 |
||
|
58147
|
58147
58147-58010 Bracket, Front Floor Housing, Front Lh[07.2003 -] ATH10 ＮＯ．１ |
58147-58010 |
US $8.74 |
||
|
58147
|
58147
58147-58020 Bracket, Front Floor Housing, Front Lh[07.2003 -] ATH10 ＮＯ．２ |
58147-58020 |
US $6.70 |
||
|
58175B
|
58175B
58108-58010 Angle Sub-Assy, Front Floor, Rear[07.2003 -] ATH10 |
58108-58010 |
US $30.43 |
||
|
58183A
|
58183A
58183-58010 Retainer, Seat Rail, Rear Rh[07.2003 -] ATH10 |
58183-58010 |
US $35.53 |
||
|
58184H
|
58184H
58184-58010 Retainer, Seat Rail, Rear Lh[07.2003 -] ATH10 |
58184-58010 |
US $35.53 |
||
|
58215J
|
58215J
58215-58010 Bracket, Rear Seat Mounting, Rh[07.2003 -] ATH10 |
58215-58010 |
US $68.14 |
||
|
58216B
|
58216B
58216-58010 Bracket, Rear Seat Mounting, Lh[07.2003 -] ATH10 |
58216-58010 |
US $70.18 |
||
|
58387H
|
58387H
58387-28060 Plate, Rear Floor Finish[07.2003 -] ATH10 ＮＯ．１ |
58387-28060 |
US $4.80 |
||
|
58387H
|
58387H
58387-58020 Plate, Rear Floor[07.2003 -] ATH10 ＮＯ．２ |
58387-58020 |
US $5.97 |
||
|
74681E
|
74681E
74681-58010 Retainer, Assist Grip[07.2003 -] ATH10 |
74681-58010 |
US $4.08 |
||
|
5744228030
|
5744228030
57442-28030 Plug, Step Panel Hole |
57442-28030 |
US $3.36 |
||
|
9011506166
|
9011506166
90115-06166 Bolt, Weld(For Front Floor Pan) |
90115-06166 |
from US $0.98 |
