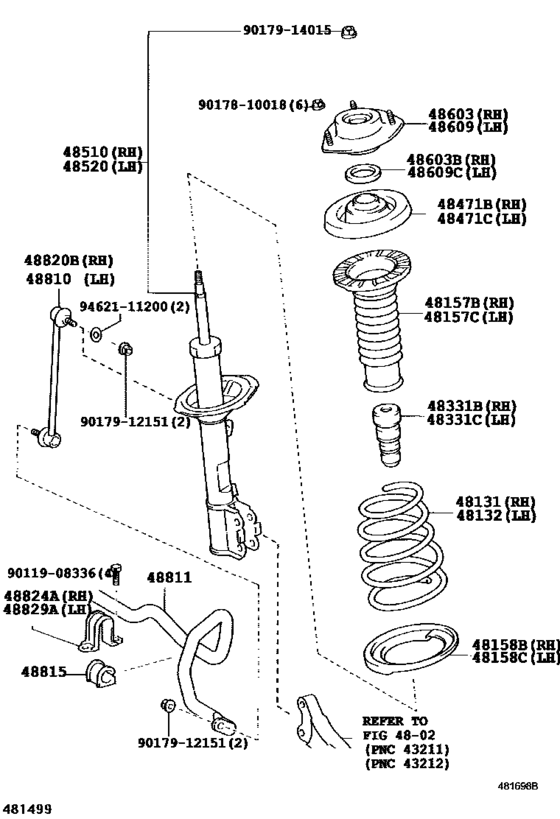

Front Spring & Shock Absorber ([07.2003 - ] (0307- )) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2003 - 2008
- Sales region
- Japan
- Frame
- ATH10
- ENGINE
- 2AZFXE
- Model
- Alphard I
- From
- 07.2003
- To
- 04.2008
- Seating Capacity
- 08S
- Vehicle Model
- Alphard Hybrid
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48131
|
48131
48131-58090 Spring, Front Coil, Rh[07.2003 - 02.2005] ATH10 |
48131-58090 |
US $174.72 |
||
| replacement | |||||
|
48131
|
48131
48131-58170 Spring, Front Coil, Rh[07.2003 - 02.2005] ATH10 |
48131-58170 |
US $173.26 |
||
|
48131
|
48131
48131-58170 Spring, Front Coil, Rh[02.2005 -] ATH10 |
48131-58170 |
US $173.26 |
||
|
48132
|
48132
48131-58090 Spring, Front Coil, Rh[07.2003 - 02.2005] ATH10 |
48131-58090 |
US $174.72 |
||
| replacement | |||||
|
48132
|
48132
48131-58170 Spring, Front Coil, Rh[07.2003 - 02.2005] ATH10 |
48131-58170 |
US $173.26 |
||
|
48132
|
48132
48131-58170 Spring, Front Coil, Rh[02.2005 -] ATH10 |
48131-58170 |
US $173.26 |
||
|
48157B
|
48157B
48157-28020 Insulator, Front Coil Spring, Upper[07.2003 -] ATH10 |
48157-28020 |
from US $22.07 |
||
|
48157C
|
48157C
48157-28020 Insulator, Front Coil Spring, Upper[07.2003 -] ATH10 |
48157-28020 |
from US $22.07 |
||
|
48158B
|
48158B
48158-48020 Insulator, Front Coil Spring, Lower[07.2003 -] ATH10 |
48158-48020 |
from US $19.99 |
||
|
48158C
|
48158C
48158-48020 Insulator, Front Coil Spring, Lower[07.2003 -] ATH10 |
48158-48020 |
from US $19.99 |
||
|
48331B
|
48331B
48331-28040 Bumper, Front Spring, Rh[07.2003 -] ATH10 |
48331-28040 |
from US $14.66 |
||
|
48331C
|
48331C
48331-28040 Bumper, Front Spring, Rh[07.2003 -] ATH10 |
48331-28040 |
from US $14.66 |
||
|
48471B
|
48471B
48471-41010 Seat, Front Coil Spring, Upper[07.2003 -] ATH10 |
48471-41010 |
from US $28.70 |
||
|
48471C
|
48471C
48471-41010 Seat, Front Coil Spring, Upper[07.2003 -] ATH10 |
48471-41010 |
from US $28.70 |
||
|
48510
|
48510
48510-59825 Absorber Assy, Shock, Front Rh[07.2003 - 04.2005] ATH10 マーク ４８５１０−５８０４０ |
48510-59825 |
US $369.82 |
||
| replacement | |||||
|
48510
|
48510
48510-80276 Absorber Assy, Shock, Front Rh[07.2003 - 04.2005] ATH10 マーク ４８５１０−５８０４０ |
48510-80276 |
US $366.91 |
||
|
48510
|
48510
48510-80276 Absorber Assy, Shock, Front Rh[04.2005 - 04.2008] ATH10 マーク ４８５１０−５８０４１ |
48510-80276 |
US $366.91 |
||
|
48520
|
48520
48520-59095 Absorber Assy, Shock, Front Lh[07.2003 - 04.2005] ATH10 マーク ４８５２０−５８０４０ |
48520-59095 |
US $369.82 |
||
| replacement | |||||
|
48520
|
48520
48520-80066 Absorber Assy, Shock, Front Lh[07.2003 - 04.2005] ATH10 マーク ４８５２０−５８０４０ |
48520-80066 |
US $366.91 |
||
|
48520
|
48520
48520-80066 Absorber Assy, Shock, Front Lh[04.2005 - 04.2008] ATH10 マーク ４８５２０−５８０４１ |
48520-80066 |
US $366.91 |
||
|
48603
|
48603
48609-58010 Support Sub-Assy, Front Suspension[07.2003 -] ATH10 |
48609-58010 |
from US $74.48 |
||
|
48603B
|
48603B
90903-63014 Bearing(For Front Suspension Support)[07.2003 -] ATH10 |
90903-63014 |
from US $32.07 |
||
|
48609
|
48609
48609-58010 Support Sub-Assy, Front Suspension[07.2003 -] ATH10 |
48609-58010 |
from US $74.48 |
||
|
48609C
|
48609C
90903-63014 Bearing(For Front Suspension Support)[07.2003 -] ATH10 |
90903-63014 |
from US $32.07 |
||
|
48810
|
48810
48820-58010 Link Assy, Front Stabilizer[07.2003 -] ATH10 |
48820-58010 |
US $113.96 |
||
|
48811
|
48811
48811-28210 Bar, Stabilizer, Front[07.2003 -] ATH10 |
48811-28210 |
US $198.02 |
||
|
48815
|
48815
48815-28150 Bush, Front Stabilizer Bar, No.1[07.2003 -] ATH10 |
48815-28150 |
from US $16.26 |
||
|
48820B
|
48820B
48820-58010 Link Assy, Front Stabilizer[07.2003 -] ATH10 |
48820-58010 |
US $113.96 |
||
|
48824A
|
48824A
48824-28190 Bracket, Front Stabilizer, No.1 Rh[07.2003 -] ATH10 |
48824-28190 |
from US $14.77 |
||
|
48829A
|
48829A
48824-28190 Bracket, Front Stabilizer, No.1 Rh[07.2003 -] ATH10 |
48824-28190 |
from US $14.77 |
||
|
9011908336
|
9011908336
90119-08336 BOLT |
90119-08336 |
US $2.56 |
||
|
9017810018
|
9017810018
90178-10018 Nut(For Front Suspension Support) |
90178-10018 |
US $2.72 |
||
|
9017912151
|
9017912151
90179-12151 Nut(For Front Stabilizer Link) |
90179-12151 |
from US $0.94 |
||
|
9017914015
|
9017914015
90179-14015 Nut, Castle (For Front Lower Ball Joint Setting) |
90179-14015 |
from US $1.09 |
||
|
9462111200
|
9462111200
94621-11200 New Genuine Part |
94621-11200 |
US $3.20 |
||
