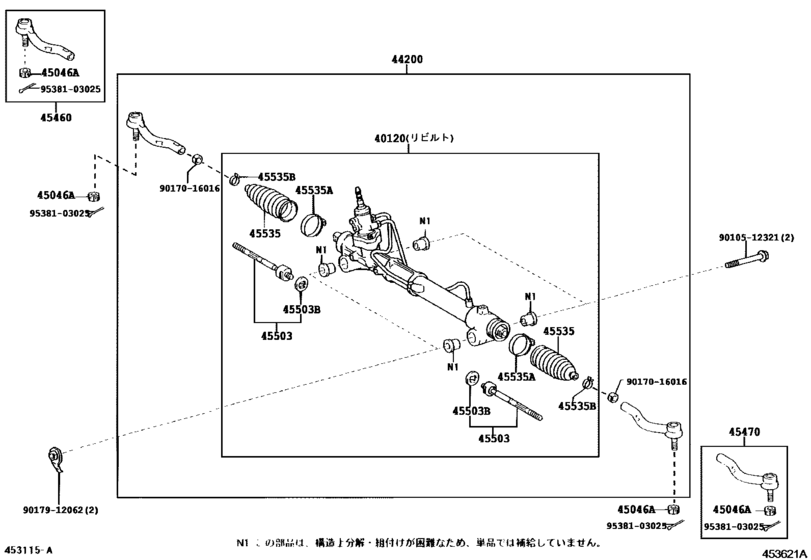

Front Steering Gear & Link ([07.2003 - ] (0307- )) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2003 - 2008
- Sales region
- Japan
- Frame
- ATH10
- ENGINE
- 2AZFXE
- Model
- Alphard I
- From
- 07.2003
- To
- 04.2008
- Seating Capacity
- 08S
- Vehicle Model
- Alphard Hybrid
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
40120
|
40120
40120-58050 Gear Assy,power Steering,rebuilt[07.2003 - 02.2005] ATH10 ＴＯＹＯＤＡ ＫＯＫＩ |
40120-58050 |
US $1,153.15 |
||
| replacement | |||||
|
40120
|
40120
40120-58052 Gear Assy,power Steering,rebuilt[07.2003 - 02.2005] ATH10 ＴＯＹＯＤＡ ＫＯＫＩ |
40120-58052 |
US $1,153.15 |
||
|
40120
|
40120
40120-58051 Gear Assy,power Steering,rebuilt[02.2005 - 04.2008] ATH10 ＴＯＹＯＤＡ ＫＯＫＩ |
40120-58051 |
US $1,153.15 |
||
| replacement | |||||
|
40120
|
40120
40120-58052 Gear Assy,power Steering,rebuilt[02.2005 - 04.2008] ATH10 ＴＯＹＯＤＡ ＫＯＫＩ |
40120-58052 |
US $1,153.15 |
||
|
44200
|
44200
44200-58050 Link Assy, Power Steering[07.2003 - 01.2005] ATH10 |
44200-58050 |
US $1,659.84 |
||
| replacements | |||||
|
44200
|
44200
44250-58052 Gear Assy, Power Steering(for Rack & Pinion)[07.2003 - 01.2005] ATH10 |
44250-58052 |
US $1,528.80 |
||
|
44200
|
44200
45460-59115 Rod Assy, Tie, Rh[07.2003 - 01.2005] ATH10 |
45460-59115 |
from US $70.83 |
||
|
44200
|
44200
45470-59135 Rod Assy, Tie, Lh[07.2003 - 01.2005] ATH10 |
45470-59135 |
from US $70.83 |
||
|
44200
|
44200
90170-16016 NUT HEXAGON[07.2003 - 01.2005] ATH10 |
90170-16016 |
from US $1.83 |
||
|
44200
|
44200
44200-58051 Link Assy, Power Steering[02.2005 - 08.2007] ATH10 |
44200-58051 |
US $1,659.84 |
||
| replacements | |||||
|
44200
|
44200
44250-58052 Gear Assy, Power Steering(for Rack & Pinion)[02.2005 - 08.2007] ATH10 |
44250-58052 |
US $1,528.80 |
||
|
44200
|
44200
45460-59115 Rod Assy, Tie, Rh[02.2005 - 08.2007] ATH10 |
45460-59115 |
from US $70.83 |
||
|
44200
|
44200
45470-59135 Rod Assy, Tie, Lh[02.2005 - 08.2007] ATH10 |
45470-59135 |
from US $70.83 |
||
|
44200
|
44200
90170-16016 NUT HEXAGON[02.2005 - 08.2007] ATH10 |
90170-16016 |
from US $1.83 |
||
|
44200
|
44200
44200-58052 Link Assy, Power Steering[09.2007 - 04.2008] ATH10 |
44200-58052 |
US $1,645.28 |
||
| replacements | |||||
|
44200
|
44200
44250-58052 Gear Assy, Power Steering(for Rack & Pinion)[09.2007 - 04.2008] ATH10 |
44250-58052 |
US $1,528.80 |
||
|
44200
|
44200
45460-59115 Rod Assy, Tie, Rh[09.2007 - 04.2008] ATH10 |
45460-59115 |
from US $70.83 |
||
|
44200
|
44200
45470-59135 Rod Assy, Tie, Lh[09.2007 - 04.2008] ATH10 |
45470-59135 |
from US $70.83 |
||
|
44200
|
44200
90170-16016 NUT HEXAGON[09.2007 - 04.2008] ATH10 |
90170-16016 |
from US $1.83 |
||
|
45046A
|
45046A
90171-12028 Nut, Castle(For Pitman Arm)[07.2003 -] ATH10 |
90171-12028 |
from US $1.42 |
||
|
45460
|
45460
45460-59055
Rod Assy, Tie, Rh
[07.2003 - 02.2005] ATH10 |
45460-59055 |
— | ||
| replacement | |||||
|
45460
|
45460
45460-59115 Rod Assy, Tie, Rh[07.2003 - 02.2005] ATH10 |
45460-59115 |
from US $70.83 |
||
|
45460
|
45460
45460-59115 Rod Assy, Tie, Rh[02.2005 -] ATH10 |
45460-59115 |
from US $70.83 |
||
|
45470
|
45470
45470-59055
Rod Assy, Tie, Lh
[07.2003 - 02.2005] ATH10 |
45470-59055 |
— | ||
| replacement | |||||
|
45470
|
45470
45470-59135 Rod Assy, Tie, Lh[07.2003 - 02.2005] ATH10 |
45470-59135 |
from US $70.83 |
||
|
45470
|
45470
45470-59135 Rod Assy, Tie, Lh[02.2005 -] ATH10 |
45470-59135 |
from US $70.83 |
||
|
45503
|
45503
45503-59075 End Sub-Assy, Steering Rack[07.2003 -] ATH10 |
45503-59075 |
from US $112.48 |
||
|
45503B
|
45503B
90214-14007 Washer, Claw(For Power Steering Rack End)[07.2003 -] ATH10 外径＝３８ |
90214-14007 |
from US $1.66 |
||
|
45535
|
45535
45535-28030 Boot, Steering Rack, No.1[07.2003 -] ATH10 |
45535-28030 |
from US $13.60 |
||
|
45535A
|
45535A
90460-55016 Clamp(For Power Steering Rack Boot)[07.2003 -] ATH10 |
90460-55016 |
from US $3.84 |
||
|
45535B
|
45535B
90467-19018
Clip(For Power Steering Rack Boot)
[07.2003 -] ATH10 |
90467-19018 |
— | ||
| replacement | |||||
|
45535B
|
45535B
90467-19021 Clamp Or Clip, Hose(For Water By-Pass Hose)[07.2003 -] ATH10 |
90467-19021 |
from US $1.54 |
||
|
9010512321
|
9010512321
90105-12321 New Genuine Part |
90105-12321 |
US $8 |
||
|
9017016016
|
9017016016
90170-16016 NUT HEXAGON |
90170-16016 |
from US $1.83 |
||
|
9017912062
|
9017912062
90179-12062 Nut(For Rear Suspension Arm) |
90179-12062 |
from US $2.54 |
||
|
9538103025
|
9538103025
95381-03025 PIN |
95381-03025 |
from US $0.84 |
||
