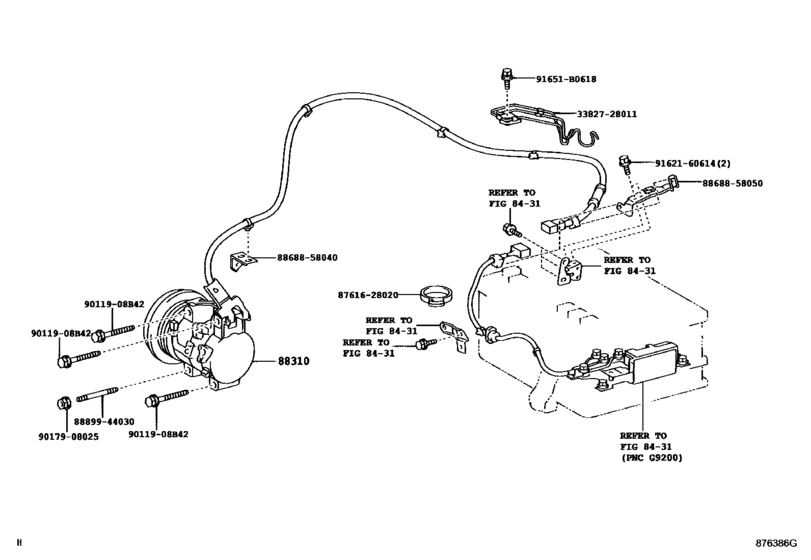

Heating & Air Conditioning - Compressor ([07.2003 - ] (0307- )) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2003 - 2008
- Sales region
- Japan
- Frame
- ATH10
- ENGINE
- 2AZFXE
- Model
- Alphard I
- From
- 07.2003
- To
- 04.2008
- Seating Capacity
- 08S
- Vehicle Model
- Alphard Hybrid
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88310
|
88310
88310-58010
Compressor Assy, W/pulley
[07.2003 - 05.2004] ATH10 |
88310-58010 |
— | ||
| replacement | |||||
|
88310
|
88310
88310-58011
Compressor Assy, W/pulley
[07.2003 - 05.2004] ATH10 |
88310-58011 |
— | ||
|
88310
|
88310
88310-58011
Compressor Assy, W/pulley
[06.2004 - 04.2008] ATH10 |
88310-58011 |
— | ||
|
91651B0618
|
91651B0618
91651-B0618 BOLT WWASHER |
91651-B0618 |
from US $1.60 |
||
|
9011908B42
|
9011908B42
90119-08B42 BOLT WWASHER |
90119-08B42 |
from US $1.21 |
||
|
3382728011
|
3382728011
33827-28011 Bracket, Transmission Control Cable, No.3 |
33827-28011 |
US $5.10 |
||
|
8761628020
|
8761628020
87616-28020 Clamp, Cooling Unit Case |
87616-28020 |
US $4.08 |
||
|
8868858040
|
8868858040
88688-58040
Bracket, Cooler Diaphragm
|
88688-58040 |
— | ||
|
8868858050
|
8868858050
88688-58050
Bracket, Cooler Diaphragm
|
88688-58050 |
— | ||
|
8889944030
|
8889944030
88899-44030
Cover, Evaporator
|
88899-44030 |
— | ||
|
9017908025
|
9017908025
90179-08025 Nut, Cap(For Cylinder Head Cover) |
90179-08025 |
from US $0.92 |
||
|
9162160614
|
9162160614
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.54 |
||
