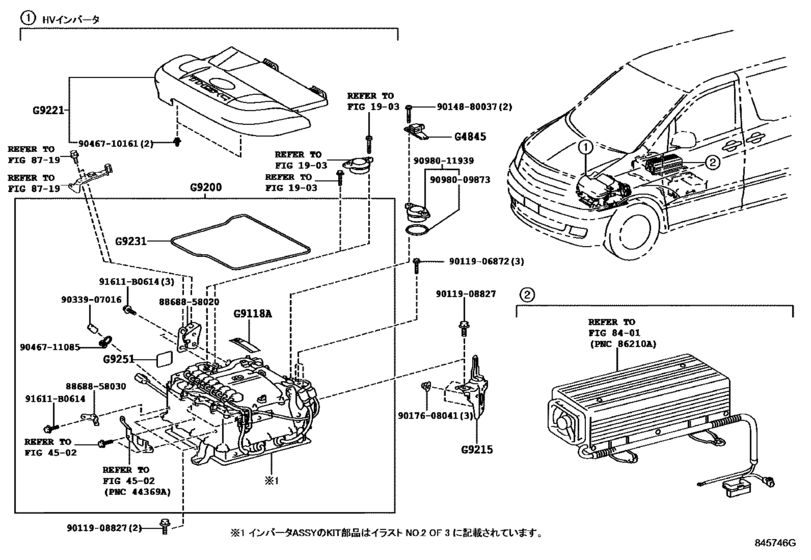

Hv Inverter ([07.2003 - ] (0307- )) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2003 - 2008
- Sales region
- Japan
- Frame
- ATH10
- ENGINE
- 2AZFXE
- Model
- Alphard I
- From
- 07.2003
- To
- 04.2008
- Seating Capacity
- 08S
- Vehicle Model
- Alphard Hybrid
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
91611B0614
|
91611B0614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
US $1.38 |
||
|
8868858020
|
8868858020
88688-58020
Bracket, Cooler Diaphragm
|
88688-58020 |
— | ||
|
8868858030
|
8868858030
88688-58030
Bracket, Cooler Diaphragm
|
88688-58030 |
— | ||
|
9011906872
|
9011906872
90119-06872 New Genuine Part |
90119-06872 |
US $1.46 |
||
|
9011908827
|
9011908827
90119-08827 New Genuine Part |
90119-08827 |
US $1.10 |
||
|
9014880037
|
9014880037
90148-80037 New Genuine Part |
90148-80037 |
US $10.19 |
||
|
9017608041
|
9017608041
90176-08041 Nut, Cap(For Cylinder Head Cover) |
90176-08041 |
US $2.34 |
||
|
9033907016
|
9033907016
90339-07016 Cap(For Intake Air Connector) |
90339-07016 |
from US $1.93 |
||
|
9046710161
|
9046710161
90467-10161 Clip |
90467-10161 |
from US $0.84 |
||
|
9046711085
|
9046711085
90467-11085 Clamp Or Clip(For Radiator Breather Hose) |
90467-11085 |
from US $0.68 |
||
|
9098009873
|
9098009873
90980-09873 New Genuine Part |
90980-09873 |
US $2.62 |
||
|
9098011939
|
9098011939
90980-11939 New Genuine Part |
90980-11939 |
US $17.33 |
||
|
G4845
|
G4845
G4845-58010 Sensor, Circuit Breaker, No.1[07.2003 -] ATH10 |
G4845-58010 |
US $116.48 |
||
|
G9118A
|
G9118A
G9118-47010 Label, Electric Vehicle Unit Controller Caution, No.1[08.2003 - 04.2008] ATH10 |
G9118-47010 |
US $3.49 |
||
|
G9200
|
G9200
G9200-58010 Inverter Assy, W/converter[07.2003 - 04.2008] ATH10 |
G9200-58010 |
US $7,682.88 |
||
|
G9215
|
G9215
G9215-58010 Bracket, Inverter, No.2[07.2003 - 04.2008] ATH10 |
G9215-58010 |
US $23 |
||
|
G9221
|
G9221
53796-58010 Cover, Inverter[07.2003 - 04.2008] ATH10 |
53796-58010 |
US $133.95 |
||
|
G9231
|
G9231
G9231-47010 Gasket, Inverter Cover[08.2003 - 04.2008] ATH10 |
G9231-47010 |
US $7.72 |
||
|
G9251
|
G9251
G9251-47010 Seat, Inverter Name[08.2003 - 04.2008] ATH10 |
G9251-47010 |
US $1.31 |
