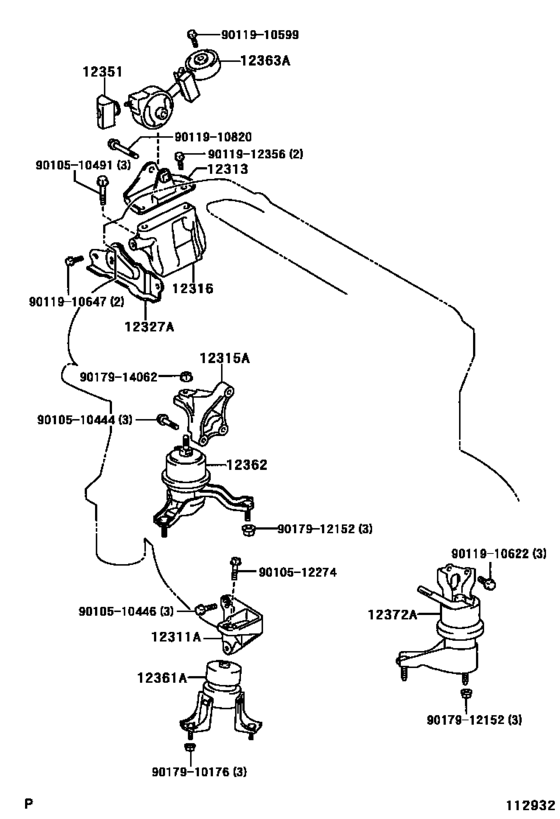

Mounting ([07.2003 - ] (0307- )) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2003 - 2008
- Sales region
- Japan
- Frame
- ATH10
- ENGINE
- 2AZFXE
- Model
- Alphard I
- From
- 07.2003
- To
- 04.2008
- Seating Capacity
- 08S
- Vehicle Model
- Alphard Hybrid
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12311A
|
12311A
12311-28080 Bracket, Engine Mounting, Front(For Transverse Engine)[07.2003 -] 2AZFXE..ATH10 |
12311-28080 |
US $61.44 |
||
|
12313
|
12313
12313-28010 Bracket, Engine Mounting Control(For Transverse Engine)[07.2003 -] 2AZFXE..ATH10 |
12313-28010 |
US $48.22 |
||
|
12315A
|
12315A
12315-28050 Bracket, Engine Mounting, Rh(For Transverse Engine)[07.2003 -] 2AZFXE..ATH10 |
12315-28050 |
US $67.70 |
||
|
12316
|
12316
12316-28020 Bracket, Engine Mounting, No.2 Rh[07.2003 -] 2AZFXE..ATH10 |
12316-28020 |
US $71.34 |
||
|
12327A
|
12327A
12327-28010 Stay, Engine Mounting, No.2 Rh[07.2003 -] 2AZFXE..ATH10 |
12327-28010 |
US $25.92 |
||
|
12351
|
12351
12351-28050 Damper, Engine Mounting[07.2003 -] 2AZFXE..ATH10 |
12351-28050 |
US $41.93 |
||
|
12361A
|
12361A
12361-28140 Insulator, Engine Mounting, Front(For Transverse Engine)[07.2003 -] 2AZFXE..ATH10 |
12361-28140 |
US $118.81 |
||
|
12362
|
12362
12362-28100 Insulator, Engine Mounting, Rh(For Transverse Engine)[07.2003 -] 2AZFXE..ATH10 |
12362-28100 |
from US $176.85 |
||
|
12363A
|
12363A
12363-28100 Rod, Engine Moving Control[07.2003 -] 2AZFXE..ATH10 |
12363-28100 |
US $92.60 |
||
|
12372A
|
12372A
12306-28060 Insulator, Engine Mounting, Lh(For Transverse Engine)[07.2003 -] 2AZFXE..ATH10 |
12306-28060 |
US $209.66 |
||
|
9010510444
|
9010510444
90105-10444 Shaft, Clutch Pedal |
90105-10444 |
from US $1.40 |
||
|
9010510446
|
9010510446
90105-10446 New Genuine Part |
90105-10446 |
US $1.60 |
||
|
9010510491
|
9010510491
90105-10491 BOLT FLANGE |
90105-10491 |
US $3.49 |
||
|
9010512274
|
9010512274
90105-12274 BOLTWASHER BASED |
90105-12274 |
from US $1.66 |
||
|
9011910599
|
9011910599
90119-10599 BOLT WWASHER |
90119-10599 |
from US $2.57 |
||
|
9011910622
|
9011910622
90119-10622 BOLT WWASHER |
90119-10622 |
US $2.97 |
||
|
9011910647
|
9011910647
90119-10647 BOLT WWASHER |
90119-10647 |
US $3.04 |
||
|
9011910820
|
9011910820
90119-10820 BOLT WWASHER |
90119-10820 |
from US $1.89 |
||
|
9011912356
|
9011912356
90119-12356 BOLT WWASHER |
90119-12356 |
US $3.49 |
||
|
9017910176
|
9017910176
90179-10176 NUT |
90179-10176 |
US $2.40 |
||
|
9017912152
|
9017912152
90179-12152 NUT |
90179-12152 |
US $3.52 |
||
|
9017914062
|
9017914062
90179-14062 Nut (For Steering Knuckle Rh) |
90179-14062 |
from US $1.23 |
