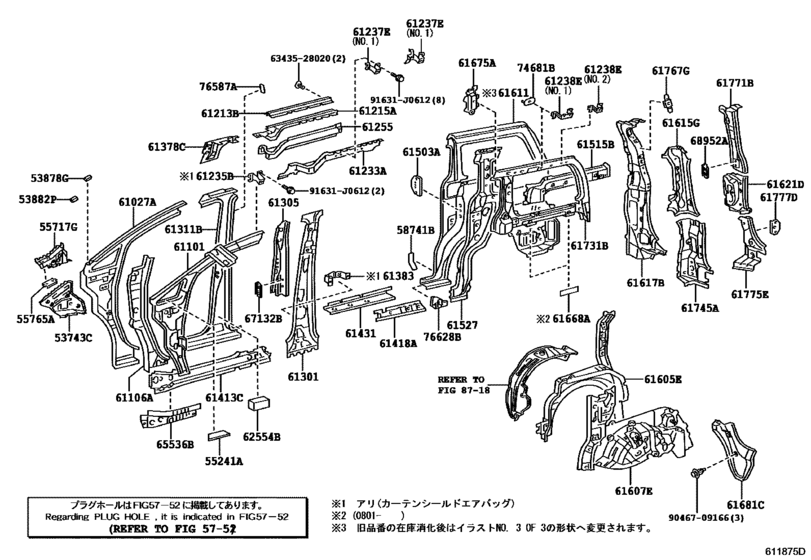

Side Member ([07.2003 - ] RH (0307- )) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2003 - 2008
- Sales region
- Japan
- Frame
- ATH10
- ENGINE
- 2AZFXE
- Model
- Alphard I
- From
- 07.2003
- To
- 04.2008
- Seating Capacity
- 08S
- Vehicle Model
- Alphard Hybrid
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53743C
|
53743C
53743-58010 Reinforcement, Front Fender Apron, Front Rh[07.2003 -] ATH10 |
53743-58010 |
US $65.81 |
||
|
53878G
|
53878G
53878-28060 Protector, Front Fender Side Panel, Rh[07.2003 -] ATH10 |
53878-28060 |
US $4.80 |
||
|
53882P
|
53882P
53882-58020 Protector, Front Fender Side Panel[07.2003 - 04.2008] ATH10 |
53882-58020 |
US $3.93 |
||
|
55241A
|
55241A
55241-58010 Silencer, Front Panel Side, No.1[07.2003 -] ATH10 |
55241-58010 |
US $3.20 |
||
|
55717G
|
55717G
55717-58010 Panel, Cowl Top Side, Inner Rh[07.2003 -] ATH10 |
55717-58010 |
US $34.51 |
||
|
55765A
|
55765A
55765-44010 Bracket, Hood Damper Mounting[07.2003 -] ATH10 |
55765-44010 |
US $4.96 |
||
|
58741B
|
58741B
58741-58010 Protector, Quarter Panel, Rh[07.2003 -] ATH10 寒冷地仕様 |
58741-58010 |
US $6.84 |
||
|
61027A
|
61027A
61027-58011 Pillar Sub-Assy, Front Body, Outer Rh[07.2003 -] ATH10 |
61027-58011 |
US $445.54 |
||
|
61101
|
61101
61013-58010 Panel Sub-Assy, Cowl Side, Rh[07.2003 -] ATH10 |
61013-58010 |
US $353.81 |
||
|
61106A
|
61106A
61106-58010 Reinforce Sub-Assy, Front Body Pillar, Upper Rh[07.2003 -] ATH10 |
61106-58010 |
US $147.06 |
||
|
61213B
|
61213B
61213-58010 Rail, Roof Side, Outer No.2 Rh[07.2003 -] ATH10 |
61213-58010 |
US $78.62 |
||
|
61215A
|
61215A
61215-58010 Rail, Roof Side, Outer No.3 Rh[07.2003 -] ATH10 |
61215-58010 |
US $84.45 |
||
|
61233A
|
61233A
61233-58010 Rail, Roof Side, Inner No.2 Rh[07.2003 -] ATH10 |
61233-58010 |
US $126.67 |
||
|
61235B
|
61235B
61235-58010 Bracket, Assist Grip[07.2003 -] ATH10 ＳＲＳエアバッグ−カーテン ＆ サイド |
61235-58010 |
US $24.46 |
||
|
61237E
|
61237E
61237-58010 Bracket, Assist Grip, No.1[07.2003 -] ATH10 ＮＯ．１ |
61237-58010 |
US $24.46 |
||
|
61237E
|
61237E
61237-58020 Bracket, Assist Grip, No.1[07.2003 -] ATH10 ＮＯ．２ |
61237-58020 |
US $24.46 |
||
|
61238E
|
61238E
61245-58010 Bracket, Assist Grip, No.2[07.2003 -] ATH10 ＮＯ．１ |
61245-58010 |
US $15.58 |
||
|
61238E
|
61238E
61245-58020 Bracket, Assist Grip, No.2[07.2003 -] ATH10 ＮＯ．２ |
61245-58020 |
US $11.65 |
||
|
61255
|
61255
61255-58010 Plate, Roof Side Rail, Outer Rh[07.2003 -] ATH10 |
61255-58010 |
US $87.36 |
||
|
61301
|
61301
61301-58010 Pillar Sub-Assy, Center Body, Rh[07.2003 -] ATH10 |
61301-58010 |
US $329.06 |
||
|
61305
|
61305
61305-58010 Reinforce Sub-Assy, Center Body Pillar, Lower Rh[07.2003 -] ATH10 |
61305-58010 |
US $94.64 |
||
|
61311B
|
61311B
61311-58010 Pillar, Center Body, Outer Rh[07.2003 -] ATH10 |
61311-58010 |
US $329.06 |
||
|
61378C
|
61378C
61378-58010 Retainer, Slide Door Down Stop Male, Upper Rh[07.2003 -] ATH10 |
61378-58010 |
US $53.14 |
||
|
61383
|
61383
61383-58010 Extension, Center Body Pillar, Outer Rh[07.2003 -] ATH10 ＳＲＳエアバッグ−カーテン ＆ サイド |
61383-58010 |
US $26.64 |
||
|
61413C
|
61413C
61413-58010 Reinforcement, Rocker Panel, No.2 Rh[07.2003 -] ATH10 |
61413-58010 |
US $155.79 |
||
|
61418A
|
61418A
61418-58010
Reinforcement, Rocker Panel, Rh
[07.2003 -] ATH10 |
61418-58010 |
— | ||
|
61431
|
61431
61431-58010 Panel, Rocker, Outer Rear Rh[07.2003 -] ATH10 |
61431-58010 |
US $292.66 |
||
| replacements | |||||
|
61431
|
61431
61431-58020
Panel, Rocker, Outer Rear Rh
[07.2003 -] ATH10 |
61431-58020 |
— | ||
|
61431
|
61431
90333-25003 Plug, Hole(For Hood)[07.2003 -] ATH10 |
90333-25003 |
from US $1.12 |
||
|
61503A
|
61503A
61503-58010 Reinforce Sub-Assy, Slide Door Lock Striker, Rh[07.2003 -] ATH10 |
61503-58010 |
US $19.22 |
||
|
61515B
|
61515B
61515-58010 Extension, Quarter Lock Pillar, Rh[07.2003 -] ATH10 |
61515-58010 |
US $96.10 |
||
|
61515B
|
61515B
61515-58020 Extension, Quarter Lock Pillar, Rh[07.2003 -] ATH10 パワースライドドア−有り（運転席側＆助手席側）＆有り（バックドアイージークローザー ）; ATH10 パワースライドドア−有り（運転席側，助手席側）＆有り（パワーバックドア）; ATH10 パワースライドドア−有り（運転席側＆助手席側） |
61515-58020 |
US $96.10 |
||
|
61527
|
61527
61527-58010 Reinforcement, Quarter Lock Piller, Lower Rh[07.2003 -] ATH10 |
61527-58010 |
US $155.79 |
||
|
61605E
|
61605E
61605-58010 Panel, Quarter, Rh[07.2003 -] ATH10 |
61605-58010 |
US $177.63 |
||
|
61607E
|
61607E
61607-58020 Panel, Quarter Wheel House, Inner Rh[07.2003 -] ATH10 |
61607-58020 |
US $396.03 |
||
| replacement | |||||
|
61607E
|
61607E
61607-58010 Panel, Quarter Wheel House, Inner Rh[07.2003 -] ATH10 |
61607-58010 |
US $396.03 |
||
|
61611
|
61611
61611-58010 Panel, Quarter, Rh[07.2003 -] ATH10 |
61611-58010 |
US $864.86 |
||
| replacement | |||||
|
61611
|
61611
61611-58110 Panel, Quarter, Rh[07.2003 -] ATH10 |
61611-58110 |
US $864.86 |
||
|
61615G
|
61615G
61615-58010 Reinforcement, Rear Body Rear Side Panel, Rh[07.2003 -] ATH10 |
61615-58010 |
US $94.64 |
||
|
61617B
|
61617B
61067-58010 Panel, Quarter Inner, Lower Rh[07.2003 -] ATH10 |
61067-58010 |
US $483.39 |
||
|
61621D
|
61621D
61621-58010 Trough, Back Door Opening, Rh[07.2003 -] ATH10 |
61621-58010 |
US $43.10 |
||
|
61668A
|
61668A
61668-26020 Spacer Quarter Panel, No.2[01.2008 -] ATH10 |
61668-26020 |
US $3.93 |
||
|
61675A
|
61675A
61077-58010 Reinforce, Seat Belt Anchor, No.2 Upper Rh[07.2003 -] ATH10 |
61077-58010 |
US $23.59 |
||
|
61681C
|
61681C
61681-58010 Extension, Rear Wheel Opening, Rh[07.2003 - 04.2008] ATH10 |
61681-58010 |
US $41.86 |
||
|
61731B
|
61731B
61731-58010 Panel, Roof Side, Inner Rh[07.2003 -] ATH10 |
61731-58010 |
US $273.73 |
||
|
61745A
|
61745A
61745-58010 Reinforcement, Back Door Opening, Lower Rh[07.2003 -] ATH10 |
61745-58010 |
US $154.34 |
||
|
61767G
|
61767G
61767-44010 Retainer, Seat Belt Anchor, No.2[07.2003 -] ATH10 |
61767-44010 |
US $6.29 |
||
|
61771B
|
61771B
61771-58010 Frame, Back Door Opening Upper Corner, Rh[07.2003 -] ATH10 |
61771-58010 |
US $60.57 |
||
|
61775E
|
61775E
61775-58020 Shield, Quarter Window, Rear Rh[07.2003 -] ATH10 |
61775-58020 |
US $59.62 |
||
|
61777D
|
61777D
61777-58010 Retainer, Back Door Side Stopper, Rh[07.2003 -] ATH10 |
61777-58010 |
US $7.71 |
||
|
62554B
|
62554B
62554-58010 Pad, Pillar, No.4[07.2003 -] ATH10 |
62554-58010 |
US $22.13 |
||
| replacement | |||||
|
62554B
|
62554B
61824-12090 Pad, Cowl Top Silencer[07.2003 -] ATH10 |
61824-12090 |
US $10.05 |
||
|
65536B
|
65536B
65536-58010 Patch, Side Panel Reinforcement, Rh[07.2003 -] ATH10 |
65536-58010 |
US $34.51 |
||
|
67132B
|
67132B
67132-58010 Reinforcement, Slide Door Down Stop, Lower Rh[07.2003 -] ATH10 |
67132-58010 |
US $9.32 |
||
|
68952A
|
68952A
68952-58010 Retainer, Back Door Stay[07.2003 -] ATH10 |
68952-58010 |
US $7.04 |
||
|
74681B
|
74681B
74681-58010 Retainer, Assist Grip[07.2003 -] ATH10 |
74681-58010 |
US $4.08 |
||
|
76587A
|
76587A
76587-58010 Protector, Center Pillar Outer[07.2003 -] ATH10 |
76587-58010 |
US $5.10 |
||
|
76628B
|
76628B
76628-58010 Mudguard, Quarter Panel, Upper Rear Rh[07.2003 -] ATH10 寒冷地仕様 |
76628-58010 |
US $12.67 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $1.76 |
||
|
6343528020
|
6343528020
63435-28020 Seal, Roof Carrier, No.1 |
63435-28020 |
US $4.96 |
||
|
9046709166
|
9046709166
90467-09166 CLIP |
90467-09166 |
from US $1.19 |
||
