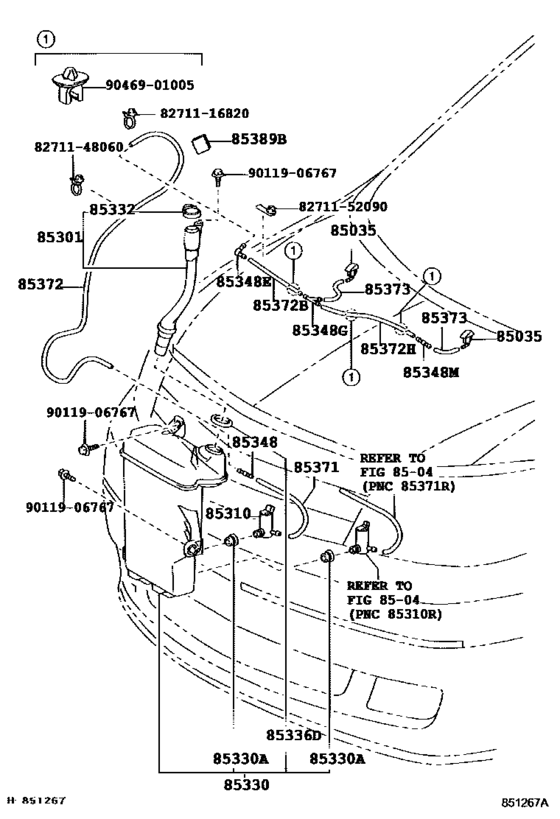

Windshield Washer ([07.2003 - ] (0307- )) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2003 - 2008
- Sales region
- Japan
- Frame
- ATH10
- ENGINE
- 2AZFXE
- Model
- Alphard I
- From
- 07.2003
- To
- 04.2008
- Seating Capacity
- 08S
- Vehicle Model
- Alphard Hybrid
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85035
|
85035
85381-58020-A0
Nozzle Sub-Assy, Washer
[07.2003 - 04.2008] ATH10 WHITE PM.,042 |
85381-58020-A0 |
— | ||
|
85035
|
85035
85381-58020-A1
Nozzle Sub-Assy, Washer
[06.2007 - 04.2008] ATH10 WHITE PEARL CS.,070 |
85381-58020-A1 |
— | ||
|
85035
|
85035
85381-58020-B0
Nozzle Sub-Assy, Washer
[07.2003 - 04.2008] ATH10 SILVER ME.,1C0 |
85381-58020-B0 |
— | ||
|
85035
|
85035
85381-58020-B3
Nozzle Sub-Assy, Washer
[04.2005 - 04.2008] ATH10 SILVER ME.,1F7 |
85381-58020-B3 |
— | ||
|
85035
|
85035
85381-58020-C0
Nozzle Sub-Assy, Washer
[07.2003 - 04.2008] ATH10 BLACK MC.,209 |
85381-58020-C0 |
— | ||
|
85035
|
85035
85381-58020-G1
Nozzle Sub-Assy, Washer
[04.2005 - 04.2008] ATH10 LT.OLIVE M.M.,6T1 |
85381-58020-G1 |
— | ||
|
85035
|
85035
85381-58020-J0
Nozzle Sub-Assy, Washer
[07.2003 - 04.2008] ATH10 PALE BLUE M.M.,8R0 |
85381-58020-J0 |
— | ||
|
85035
|
85035
85381-58020-K0
Nozzle Sub-Assy, Washer
[07.2003 - 04.2008] ATH10 LT.PURPLE ME.,942 |
85381-58020-K0 |
— | ||
|
85301
|
85301
85301-58010 Inlet Sub-Assy, Washer[07.2003 -] ATH10 |
85301-58010 |
US $57.15 |
||
|
85310
|
85310
85330-10280 Motor And Pump Assy, Windshield Washer[07.2003 -] ATH10 |
85330-10280 |
from US $60.45 |
||
|
85330
|
85330
85315-58010
Jar Assy, Windshield Washer
[07.2003 -] ATH10 |
85315-58010 |
— | ||
|
85330A
|
85330A
90099-32089 Bush, Headlamp Cleaner Washer Jar[07.2003 -] ATH10 |
90099-32089 |
from US $0.98 |
||
| replacements | |||||
|
85330A
|
85330A
90099320891
Grommet
[07.2003 -] ATH10 |
90099320891 |
— | ||
|
85330A
|
85330A
90068-32002 Bush, Windshield Washer Jar[07.2003 -] ATH10 |
90068-32002 |
US $7.46 |
||
|
85332
|
85332
85316-16070 Cap, Washer, Inlet[07.2003 - 04.2008] ATH10 |
85316-16070 |
from US $1.75 |
||
|
85336D
|
85336D
85336-30160 Bush, Windshield Washer Jar[07.2003 -] ATH10 |
85336-30160 |
from US $3.32 |
||
|
85348
|
85348
85349-89122 Valve Sub-Assy, Washer[07.2003 - 04.2008] ATH10 |
85349-89122 |
from US $1.25 |
||
|
85348E
|
85348E
85355-20200 Joint, Windshield Washer Hose, No.1[07.2003 -] ATH10 |
85355-20200 |
from US $1.03 |
||
|
85348G
|
85348G
85348-12250 Joint, Windshield Washer Hose, No.1[07.2003 -] ATH10 |
85348-12250 |
from US $0.55 |
||
|
85348M
|
85348M
85349-89122 Valve Sub-Assy, Washer[07.2003 - 04.2008] ATH10 |
85349-89122 |
from US $1.25 |
||
|
85371
|
85371
90099-33080 Hose, Windshield Washer (From Motor To Joint)[07.2003 - 04.2008] ATH10 ＊Ｈ，Ｌ＝４１０ |
90099-33080 |
US $9.43 |
||
|
85372
|
85372
90099-33299 Joint, Windshield Washer Elbow, No.2[07.2003 - 04.2008] ATH10 ＊Ｈ，Ｌ＝９００ |
90099-33299 |
from US $4.37 |
||
|
85372B
|
85372B
90446-07001 Hose, Windshield Washer (From Motor To Joint)[07.2003 - 04.2008] ATH10 ＊Ｈ，Ｌ＝４３０ |
90446-07001 |
from US $2.10 |
||
|
85372H
|
85372H
90099-59024
Hose, Windshield Washer (From Joint To Joint), No.2
[07.2003 -] ATH10 ＊Ｈ，Ｌ＝４７０ |
90099-59024 |
— | ||
| replacement | |||||
|
85372H
|
85372H
90446-07001 Hose, Windshield Washer (From Motor To Joint)[07.2003 -] ATH10 ＊Ｈ，Ｌ＝４７０ |
90446-07001 |
from US $2.10 |
||
|
85373
|
85373
90099-33080 Hose, Windshield Washer (From Motor To Joint)[07.2003 -] ATH10 Ｌ＝１４５０（＊Ｈ，Ｌ＝１４０） |
90099-33080 |
US $9.43 |
||
|
85389B
|
85389B
85389-28130 Packing, Windshield Washer Hose, No.1[07.2003 -] ATH10 |
85389-28130 |
US $2.62 |
||
|
8271116820
|
8271116820
82711-16820 Clamp, Hood Lock Control Wire |
82711-16820 |
US $1.60 |
||
|
8271148060
|
8271148060
82711-48060 Wire, Fuse To Fuse(for Combustion Heater) |
82711-48060 |
US $2.24 |
||
|
8271152090
|
8271152090
82711-52090 Clamp |
82711-52090 |
from US $0.96 |
||
|
9011906767
|
9011906767
90119-06767 Bolt, W/washer(For Engine Under Cover) |
90119-06767 |
from US $0.72 |
||
|
9046901005
|
9046901005
90469-01005 New Genuine Part |
90469-01005 |
US $2.72 |
||
