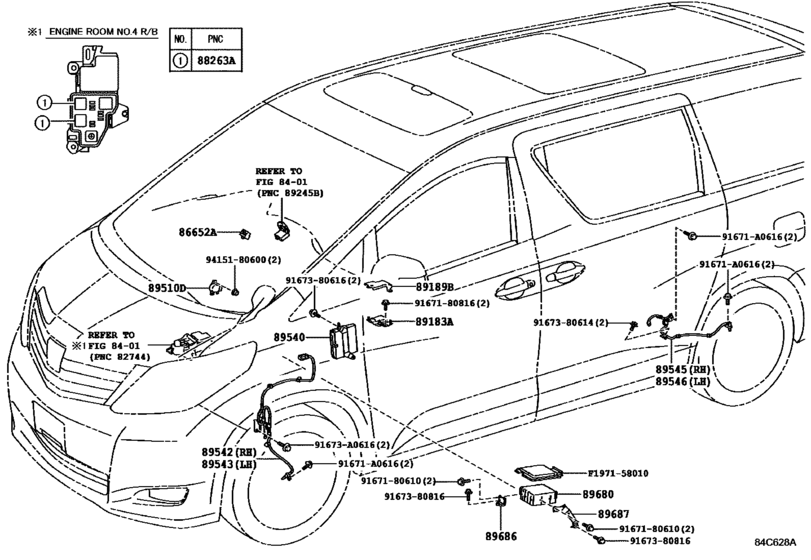

Abs & Vsc ([11.2011 - ] (1111- )ATH20) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2011 - 2015
- Sales region
- General
- Frame
- ATH20
- grade
- 350G
- ENGINE
- 2AZFXE
- DESTINATION
- GEN
- Model
- Alphard II
- From
- 12.2011
- To
- 01.2015
- Gear Shift Type
- CVFC
- Seating Capacity
- 07S
- Vehicle Model
- Alphard
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86652A
|
86652A
86652-50010 Buzzer Assy[12.2011 -] ATH20 |
86652-50010 |
from US $31.45 |
||
|
88263A
|
88263A
88263-21010 Relay[12.2011 - 01.2015] ATH20 |
88263-21010 |
from US $41.15 |
||
|
89183A
|
89183A
89180-58020 Sensor Assy, Yawrate[12.2011 -] ATH20 |
89180-58020 |
US $1,014.83 |
||
|
89189B
|
89189B
89189-58010 Bracket, Yawrate Sensor[12.2011 -] ATH20 |
89189-58010 |
US $12.23 |
||
|
89510D
|
89510D
89510-33030 Sensor Assy, Brake Pedal Stroke[12.2011 -] ATH20 |
89510-33030 |
from US $111.82 |
||
|
89540
|
89540
89540-58060 Computer Assy, Skid Control[12.2011 -] ATH20 |
89540-58060 |
US $2,402.40 |
||
|
89542
|
89542
89542-28100 Sensor, Speed, Front Rh[10.2011 -] ANH20,ATH20,GGH20 |
89542-28100 |
from US $175.71 |
||
|
89543
|
89543
89543-28100 Sensor, Speed, Front Lh[10.2011 -] ANH20,ATH20,GGH20 |
89543-28100 |
from US $197.87 |
||
|
89545
|
89545
89545-58030 Sensor, Speed, Rear Rh[12.2011 -] ATH20 |
89545-58030 |
US $338.52 |
||
|
89546
|
89546
89546-58020 Sensor, Speed, Rear Lh[12.2011 -] ATH20 |
89546-58020 |
US $338.52 |
||
|
89680
|
89680
89680-33010 Supply Assy, Brake Control Power[12.2011 -] ATH20 |
89680-33010 |
US $791.20 |
||
|
89686
|
89686
89686-58020 Bracket, Brake Control Power Supply, No.1[12.2011 -] ATH20 |
89686-58020 |
US $8.30 |
||
|
89687
|
89687
89687-58020 Bracket, Brake Control Power Supply, No.2[12.2011 -] ATH20 |
89687-58020 |
US $10.34 |
||
|
91671A0616
|
91671A0616
91671-A0616 BOLT FLANGE |
91671-A0616 |
from US $0.64 |
||
|
91673A0616
|
91673A0616
91673-A0616 BOLT, FLANGE |
91673-A0616 |
from US $0.64 |
||
|
9167180610
|
9167180610
91671-80610 New Genuine Part |
91671-80610 |
US $1.08 |
||
|
9167180816
|
9167180816
91671-80816 Bolt (For Transmission Control Cable Bracket) |
91671-80816 |
from US $0.78 |
||
|
9167380614
|
9167380614
91673-80614 BOLT, FLANGE W/WASER |
91673-80614 |
US $1.08 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.64 |
||
|
9167380816
|
9167380816
91673-80816 Bolt (For Transmission Control Cable Bracket) |
91673-80816 |
from US $0.78 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.66 |
||
|
F197158010
|
F197158010
F1971-58010 Cover, Ecu Water Proof |
F1971-58010 |
US $14.85 |
