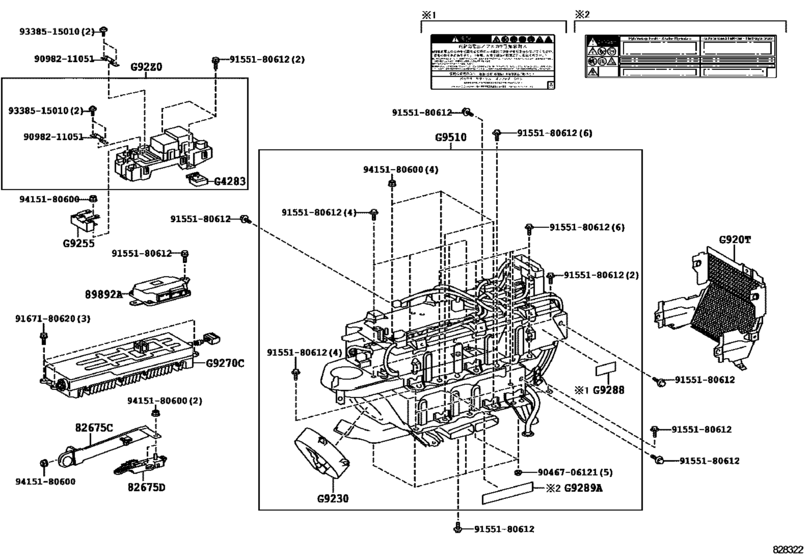

Battery & Battery Cable ([09.2012 - ] HV BATTERY (1209- )ATH20) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2011 - 2015
- Sales region
- General
- Frame
- ATH20
- grade
- 350G
- ENGINE
- 2AZFXE
- DESTINATION
- GEN
- Model
- Alphard II
- From
- 12.2011
- To
- 01.2015
- Gear Shift Type
- CVFC
- Seating Capacity
- 07S
- Vehicle Model
- Alphard
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82675C
|
82675C
82675-28480 Terminal, Junction[12.2011 - 01.2015] ATH20 |
82675-28480 |
US $17.76 |
||
|
82675D
|
82675D
82675-28490 Terminal, Junction[12.2011 - 01.2015] ATH20 |
82675-28490 |
US $17.76 |
||
|
89892A
|
89892A
89892-28010 Sensor, Battery Voltage[12.2011 -] ATH20 |
89892-28010 |
US $879.84 |
||
|
9046706121
|
9046706121
90467-06121 Clip, Rear Bumper Side |
90467-06121 |
from US $2.94 |
||
|
9098211051
|
9098211051
90982-11051 Fuse, High Voltage |
90982-11051 |
US $8.12 |
||
|
9155180612
|
9155180612
91551-80612 Bolt (For Front Differential Breather Plug Oil Deflector) |
91551-80612 |
from US $0.64 |
||
|
9167180620
|
9167180620
91671-80620 New Genuine Part |
91671-80620 |
US $1.08 |
||
|
9338515010
|
9338515010
93385-15010 Screw(For Steering Tilt Lever) |
93385-15010 |
US $1.25 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.66 |
||
|
G92Z0
|
G92Z0
G92Z0-33010 Block Assy, Hv Battery JunctionHYBRID BATTERY JUNCTION [12.2011 -] ATH20 |
G92Z0-33010 |
US $705.12 |
||
|
G920T
|
G920T
G920T-28010 Shield, Hybrid Battery W/label, Rear[12.2011 -] ATH20 |
G920T-28010 |
US $32.03 |
||
|
G4283
|
G4283
G4283-47030 Sensor, Battery Current[12.2011 - 01.2015] ATH20 |
G4283-47030 |
US $252.80 |
||
|
G9230
|
G9230
G9230-28011 Blower Assy, Battery Cooling[12.2011 -] ATH20 |
G9230-28011 |
US $280 |
||
|
G9255
|
G9255
G9255-33010 Capacitor, Filter Noise[12.2011 - 01.2015] ATH20 |
G9255-33010 |
US $27.96 |
||
|
G9270C
|
G9270C
G9270-28030 Converter, Hv[12.2011 - 01.2015] ATH20 |
G9270-28030 |
US $854.67 |
||
|
G9288
|
G9288
G9288-48010 Label, Battery Charging Notice[12.2011 -] ATH20 |
G9288-48010 |
US $4.66 |
||
|
G9289A
|
G9289A
G9288-48040 Label, Battery Charging NoticeBATTERY CARGING NOTICE [12.2011 -] ATH20 |
G9288-48040 |
US $5.10 |
||
|
G9510
|
G9510
G9510-58020 Battery Assy, Hv Supply[12.2011 -] ATH20 |
G9510-58020 |
US $3,766.56 |
