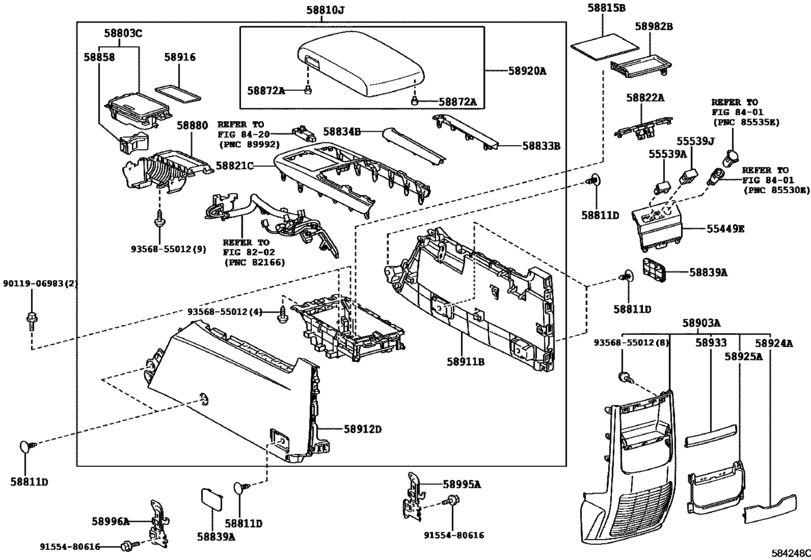

Console Box & Bracket ([12.2011 - ] (1112- )ATH20) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2011 - 2015
- Sales region
- General
- Frame
- ATH20
- grade
- 350G
- ENGINE
- 2AZFXE
- DESTINATION
- GEN
- Model
- Alphard II
- From
- 12.2011
- To
- 01.2015
- Gear Shift Type
- CVFC
- Seating Capacity
- 07S
- Vehicle Model
- Alphard
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55449E
|
55449E
55449-58030 Base, Switch[12.2011 -] ATH20 |
55449-58030 |
US $19.51 |
||
|
55539A
|
55539A
55539-48010 Cover, Spare Switch Hole[12.2011 -] ATH20 |
55539-48010 |
US $5.38 |
||
|
55539J
|
55539J
55539-58060-C0 Cover, Spare Switch Hole[12.2011 - 09.2012] ATH20 BLACK,TRIM0# |
55539-58060-C0 |
from US $4.54 |
||
|
55539J
|
55539J
55539-58070-C0 Cover, Spare Switch Hole[09.2012 - 01.2015] ATH20 BLACK,TRIM0#; ANH20..LHD..CVFC TAIWAN SPEC&AUDIO-AM/FM CD USB 8SPEAKER,BLACK,TRIM0#; GGH20..LHD..GEN AUDIO-RADIO LESS 8SPEAKER,BLACK,TRIM0#; GGH20..LHD..GEN AUDIO-AM/FM CD USB 8SPEAKER,BLACK,TRIM0#; GGH20..LHD..GEN AUDIO-AM/FM CD |
55539-58070-C0 |
US $7.35 |
||
|
58803C
|
58803C
58803-58030 Box Sub-Assy, Console Cup Holder[12.2011 -] ATH20 |
58803-58030 |
US $193.60 |
||
|
58810J
|
58810J
58810-58200-A0 Box Assy, Console[12.2011 - 09.2012] ATH20 SHELL,TRIM0# |
58810-58200-A0 |
US $1,389.02 |
||
|
58810J
|
58810J
58810-58240-A0 Box Assy, Console[09.2012 - 01.2015] ATH20 SHELL,TRIM0# |
58810-58240-A0 |
US $1,157.52 |
||
|
58811D
|
58811D
90467-07212-A0 Clip(For Console Box)[12.2011 - 01.2015] ATH20 SHELL,TRIM0# |
90467-07212-A0 |
US $1.16 |
||
|
58815B
|
58815B
58815-58030 Carpet, Console Box[12.2011 -] ATH20 |
58815-58030 |
US $2.91 |
||
|
58821C
|
58821C
58821-58140 Panel, Console, Upper[12.2011 - 01.2015] ATH20 |
58821-58140 |
US $128.13 |
||
|
58822A
|
58822A
58822-58020 Panel, Console, Upper Rear[12.2011 -] ATH20 |
58822-58020 |
US $36.40 |
||
|
58833B
|
58833B
58833-58110 Garnish, Console Upper Panel, No.1[12.2011 - 01.2015] ATH20 |
58833-58110 |
US $36.40 |
||
|
58834B
|
58834B
58834-58080 Garnish, Console Upper Panel, No.2[12.2011 - 01.2015] ATH20 |
58834-58080 |
US $36.40 |
||
|
58839A
|
58839A
58839-58030-A0 Cover, Console Box Hole[12.2011 - 01.2015] ATH20 SHELL,TRIM0# |
58839-58030-A0 |
US $6.12 |
||
|
58858
|
58858
58852-58010 Bracket, Console Support, No.1[12.2011 -] ATH20 |
58852-58010 |
US $15.43 |
||
|
58872A
|
58872A
58872-58020 Cushion, Console Box, No.2[12.2011 -] ATH20 |
58872-58020 |
US $2.62 |
||
|
58880
|
58880
58880-58010 Box Assy, Equipment Set[09.2012 -] ATH20 |
58880-58010 |
US $34.65 |
||
|
58903A
|
58903A
58903-58140-A0 Panel Sub-Assy, Console Rear End[12.2011 - 01.2015] ATH20 SHELL,TRIM0# |
58903-58140-A0 |
US $151.42 |
||
|
58911B
|
58911B
58911-58050-A0 Panel, Box, No.1[12.2011 - 01.2015] ATH20 SHELL,TRIM0# |
58911-58050-A0 |
US $126.67 |
||
|
58912D
|
58912D
58912-58040-A0 Panel, Box, No.2[12.2011 - 01.2015] ATH20 SHELL,TRIM0# |
58912-58040-A0 |
US $126.67 |
||
|
58916
|
58916
58916-58040 Mat, Box Bottom[09.2012 -] ATH20 |
58916-58040 |
US $13.98 |
||
|
58920A
|
58920A
58920-58010-A0 Armrest Assy, Rear Console[12.2011 - 01.2015] ATH20 SHELL,TRIM0# |
58920-58010-A0 |
US $553.15 |
||
|
58924A
|
58924A
58924-58020-A0 Panel, Console Rear End, No.2[12.2011 - 01.2015] ATH20 SHELL,TRIM0# |
58924-58020-A0 |
US $13.69 |
||
|
58925A
|
58925A
58925-58020-A0 Pocket, Console Box, Rear[12.2011 - 01.2015] ATH20 SHELL,TRIM0# |
58925-58020-A0 |
US $26.06 |
||
|
58933
|
58933
58933-58010 Garnish, Console Rear End Panel[12.2011 -] ATH20 |
58933-58010 |
US $48.48 |
||
|
58982B
|
58982B
58982-58030 Retainer, Console Box, No.3[12.2011 -] ATH20 |
58982-58030 |
US $16.31 |
||
|
58995A
|
58995A
58995-58040 Bracket, Console Box Mounting, No.1[12.2011 -] ATH20 |
58995-58040 |
US $11.94 |
||
|
58996A
|
58996A
58996-58030 Bracket, Console Box Mounting, No.2[12.2011 -] ATH20 |
58996-58030 |
US $12.08 |
||
|
9011906983
|
9011906983
90119-06983 New Genuine Part |
90119-06983 |
US $1.08 |
||
|
9155480616
|
9155480616
91554-80616 New Genuine Part |
91554-80616 |
US $0.87 |
||
|
9356855012
|
9356855012
93568-55012 SCREW |
93568-55012 |
US $1.08 |
