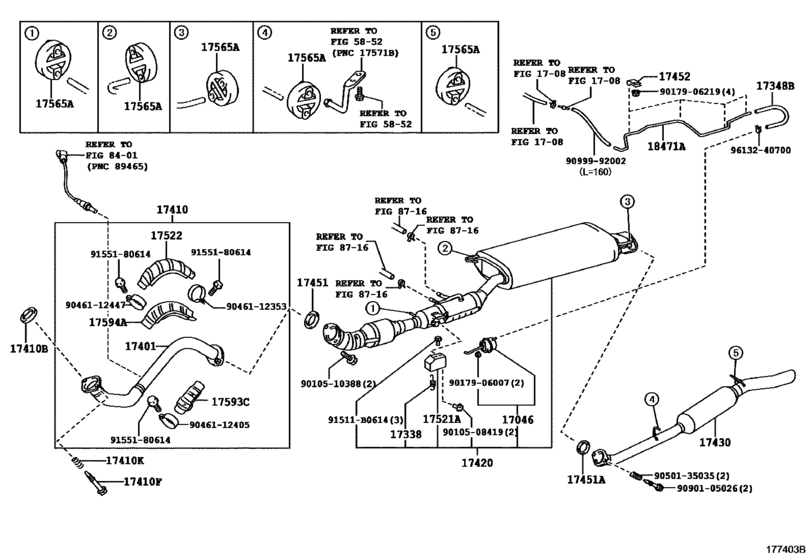

Exhaust Pipe ([12.2011 - ] (1112- )2AZFXE) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2011 - 2015
- Sales region
- General
- Frame
- ATH20
- grade
- 350G
- ENGINE
- 2AZFXE
- DESTINATION
- GEN
- Model
- Alphard II
- From
- 12.2011
- To
- 01.2015
- Gear Shift Type
- CVFC
- Seating Capacity
- 07S
- Vehicle Model
- Alphard
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17046
|
17046
17046-28010 Actuator Sub-Assy, Exhaust Pipe Gas Control[12.2011 - 01.2015] 2AZFXE..ATH20 |
17046-28010 |
US $133.95 |
||
|
17338
|
17338
17338-28020 Spring, Air Control[12.2011 - 07.2013] 2AZFXE..ATH20 |
17338-28020 |
US $9.36 |
||
|
17338
|
17338
17338-28021 Spring, Air Control[07.2013 - 01.2015] 2AZFXE..ATH20 |
17338-28021 |
US $5.97 |
||
|
17348B
|
17348B
17348-28010 Hose, Air, No.8(For Exhaust Pipe)[12.2011 -] 2AZFXE..ATH20 |
17348-28010 |
US $4.51 |
||
|
17401
|
17401
17401-28110 Pipe Sub-Assy, Exhaust, Front[12.2011 - 08.2012] 2AZFXE..ATH20 |
17401-28110 |
US $216.94 |
||
| replacement | |||||
|
17401
|
17401
17401-28111 Pipe Sub-Assy, Exhaust, Front[12.2011 - 08.2012] 2AZFXE..ATH20 |
17401-28111 |
US $163.07 |
||
|
17401
|
17401
17401-28111 Pipe Sub-Assy, Exhaust, Front[09.2012 - 01.2015] 2AZFXE..ATH20 |
17401-28111 |
US $163.07 |
||
|
17410
|
17410
17410-28600 Pipe Assy, Exhaust, Front[12.2011 - 08.2012] 2AZFXE..ATH20 |
17410-28600 |
US $241.70 |
||
| replacement | |||||
|
17410
|
17410
17410-28601 Pipe Assy, Exhaust, Front[12.2011 - 08.2012] 2AZFXE..ATH20 |
17410-28601 |
US $288 |
||
|
17410
|
17410
17410-28601 Pipe Assy, Exhaust, Front[09.2012 - 01.2015] 2AZFXE..ATH20 |
17410-28601 |
US $288 |
||
|
17410B
|
17410B
17451-28040
Gasket, Exhaust Pipe
[10.2011 - 06.2012] 2AZ#..ANH20,ATH20 |
17451-28040 |
— | ||
|
17410B
|
17410B
17451-28080 Gasket, Exhaust Pipe[07.2012 - 09.2014] 2AZ#..ANH20,ATH20 |
17451-28080 |
US $20.24 |
||
| replacement | |||||
|
17410B
|
17410B
17451-28040
Gasket, Exhaust Pipe
[07.2012 - 09.2014] 2AZ#..ANH20,ATH20 |
17451-28040 |
— | ||
|
17410F
|
17410F
90901-05020 Bolt Or Ring, Exhaust Pipe Front (For Front)[10.2011 -] 2AZ#..ANH20,ATH20 |
90901-05020 |
from US $4.12 |
||
|
17410K
|
17410K
90501-35037 Spring, Exhaust Pipe[10.2011 -] 2AZ#..ANH20,ATH20 |
90501-35037 |
from US $3.33 |
||
|
17420
|
17420
17420-28691 Pipe Assy, Exhaust, Center[12.2011 - 02.2012] 2AZFXE..ATH20 |
17420-28691 |
US $1,674.40 |
||
| replacement | |||||
|
17420
|
17420
17420-28692 Pipe Assy, Exhaust, Center[12.2011 - 02.2012] 2AZFXE..ATH20 |
17420-28692 |
US $2,264.80 |
||
|
17420
|
17420
17420-28692 Pipe Assy, Exhaust, Center[03.2012 - 03.2014] 2AZFXE..ATH20 |
17420-28692 |
US $2,264.80 |
||
|
17420
|
17420
17420-28B30 Pipe Assy, Exhaust, Center[03.2014 - 01.2015] 2AZFXE..ATH20 |
17420-28B30 |
US $1,900 |
||
|
17430
|
17430
17430-28890 Pipe Assy, Exhaust, Tail[10.2011 -] 2AZFE..ANH20..GCC;2AZ#..ANH20,ATH20..RHD; 2AZFE..ANH20..LHD..CVFC TAIWAN SPEC |
17430-28890 |
from US $220.27 |
||
|
17451
|
17451
90917-06078 Gasket, Exhaust Pipe[10.2011 -] 2GRFE..GGH20 NO.1; 2AZ#..ANH20,ATH20 |
90917-06078 |
from US $6.09 |
||
| replacement | |||||
|
17451
|
17451
90917-A6003 Gasket, Exhaust Pipe[10.2011 -] 2GRFE..GGH20 NO.1; 2AZ#..ANH20,ATH20 |
90917-A6003 |
US $27.68 |
||
|
17451A
|
17451A
17451-28022 Gasket, Exhaust Pipe[10.2011 -] 2AZ#..ANH20,ATH20 |
17451-28022 |
from US $19.68 |
||
|
17452
|
17452
90461-10763 Clamp, Exhaust Pipe[12.2011 -] 2AZFXE..ATH20 |
90461-10763 |
US $4.12 |
||
|
17521A
|
17521A
17521-28120 Protector, Exhaust Pipe, Upper No.1[12.2011 - 01.2015] 2AZFXE..ATH20 |
17521-28120 |
US $30.28 |
||
|
17522
|
17522
17522-28040 Protector, Exhaust Pipe, Front No.1[10.2011 -] 2AZ#..ANH20,ATH20 |
17522-28040 |
US $44.18 |
||
|
17565A
|
17565A
17565-22040 Support, Exhaust Pipe, No.1[10.2011 - 01.2015] 2AZ#,2GRFE..ANH20,ATH20,GGH20 |
17565-22040 |
from US $9.48 |
||
|
17593C
|
17593C
17593-28040 Protector, Exhaust Pipe, Lower No.1[10.2011 -] 2AZ#..ANH20,ATH20 |
17593-28040 |
US $28.22 |
||
|
17594A
|
17594A
17594-28020 Protector, Exhaust Pipe, No.2[10.2011 -] 2AZ#..ANH20,ATH20 |
17594-28020 |
US $31.08 |
||
|
18471A
|
18471A
18471-28010 Pipe, Converter Air Suction[12.2011 -] 2AZFXE..ATH20 |
18471-28010 |
US $19.80 |
||
|
91511B0614
|
91511B0614
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.68 |
||
|
9010508419
|
9010508419
90105-08419 New Genuine Part |
90105-08419 |
US $1.02 |
||
|
9010510388
|
9010510388
90105-10388 BOLT |
90105-10388 |
from US $0.92 |
||
|
9017906007
|
9017906007
90179-06007 Nut |
90179-06007 |
from US $0.84 |
||
|
9017906219
|
9017906219
90179-06219 Nut |
90179-06219 |
US $1.25 |
||
|
9046112353
|
9046112353
90461-12353 Clamp, Exhaust Pipe |
90461-12353 |
from US $10.93 |
||
|
9046112405
|
9046112405
90461-12405 New Genuine Part |
90461-12405 |
US $7.35 |
||
|
9046112447
|
9046112447
90461-12447 Clamp, Exhaust Pipe |
90461-12447 |
US $8.96 |
||
|
9050135035
|
9050135035
90501-35035 Spring, Exhaust Pipe |
90501-35035 |
from US $3.45 |
||
|
9090105026
|
9090105026
90901-05026 Bolt, Exhaust Pipe Support |
90901-05026 |
from US $5.56 |
||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9155180614
|
9155180614
91551-80614 Bolt(For Vacuum Transmitting Pipe) |
91551-80614 |
from US $0.66 |
||
|
9613240700
|
9613240700
96132-40700 Clip(For Fuel Vapor Feed Hose) |
96132-40700 |
US $1.61 |
||
