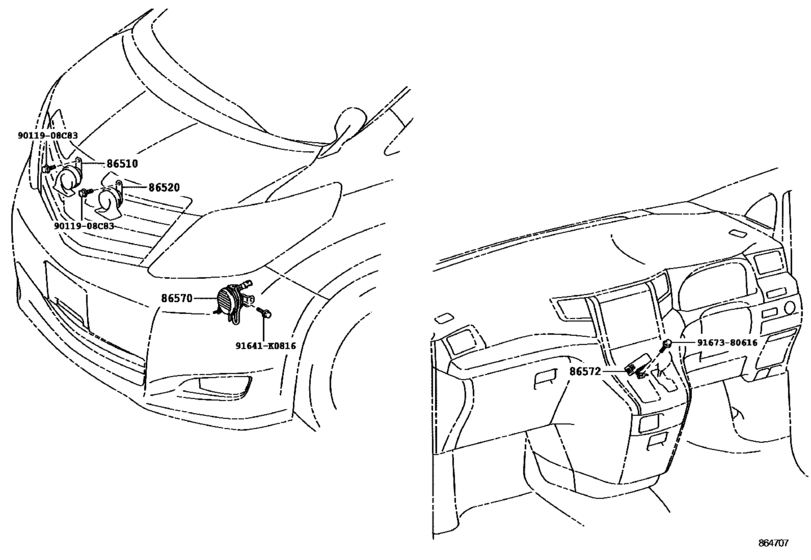

Horn ([11.2011 - ] (1111- )ATH20) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2011 - 2015
- Sales region
- General
- Frame
- ATH20
- grade
- 350G
- ENGINE
- 2AZFXE
- DESTINATION
- GEN
- Model
- Alphard II
- From
- 12.2011
- To
- 01.2015
- Gear Shift Type
- CVFC
- Seating Capacity
- 07S
- Vehicle Model
- Alphard
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86510
|
86510
86510-48150 Horn Assy, High Pitched[10.2011 - 05.2012] ANH20,GGH20..GCC;ANH20,ATH20,GGH20..RHD; ANH20,GGH20..LHD..GEN TAIWAN SPEC; ANH20,GGH20..LHD..GEN PHILIPPINES SPEC; GGH20..LHD..GEN RUSSIA SPEC |
86510-48150 |
from US $35.11 |
||
|
86510
|
86510
86510-48190 Horn Assy, High Pitched[06.2012 -] ANH20..4FC;GGH20..GCC;ANH20,ATH20,GGH20..RHD; ANH20,GGH20..LHD..(6FC,CVFC)..GEN TAIWAN SPEC; GGH20..LHD..GEN PHILIPPINES SPEC; GGH20..LHD..GEN RUSSIA SPEC |
86510-48190 |
from US $34.50 |
||
|
86520
|
86520
86520-30670 Horn Assy, Low Pitched[06.2012 -] ANH20..4FC;GGH20..GCC;ANH20,ATH20,GGH20..RHD; ANH20,GGH20..LHD..(6FC,CVFC)..GEN TAIWAN SPEC; GGH20..LHD..GEN PHILIPPINES SPEC; GGH20..LHD..GEN RUSSIA SPEC |
86520-30670 |
from US $37.70 |
||
|
86520
|
86520
86520-48110 Horn Assy, Low Pitched[10.2011 - 05.2012] ANH20,GGH20..GCC;ANH20,ATH20,GGH20..RHD; ANH20,GGH20..LHD..GEN TAIWAN SPEC; ANH20,GGH20..LHD..GEN PHILIPPINES SPEC; GGH20..LHD..GEN RUSSIA SPEC |
86520-48110 |
from US $35.11 |
||
|
86570
|
86570
86570-58010
Speaker Assy, Vehicle Approaching
[12.2011 - 02.2014] ATH20 |
86570-58010 |
— | ||
|
86570
|
86570
86570-58020
Speaker Assy, Vehicle Approaching
[02.2014 -] ATH20 |
86570-58020 |
— | ||
|
86572
|
86572
86572-58010
Controller, Vehicle Approaching Speaker
[12.2011 - 02.2014] ATH20 |
86572-58010 |
— | ||
|
86572
|
86572
86572-58020
Controller, Vehicle Approaching Speaker
[02.2014 -] ATH20 |
86572-58020 |
— | ||
|
91641K0816
|
91641K0816
91641-K0816 BOLT WWASHER |
91641-K0816 |
US $2.08 |
||
|
9011908C83
|
9011908C83
90119-08C83 New Genuine Part |
90119-08C83 |
US $1.28 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.64 |
