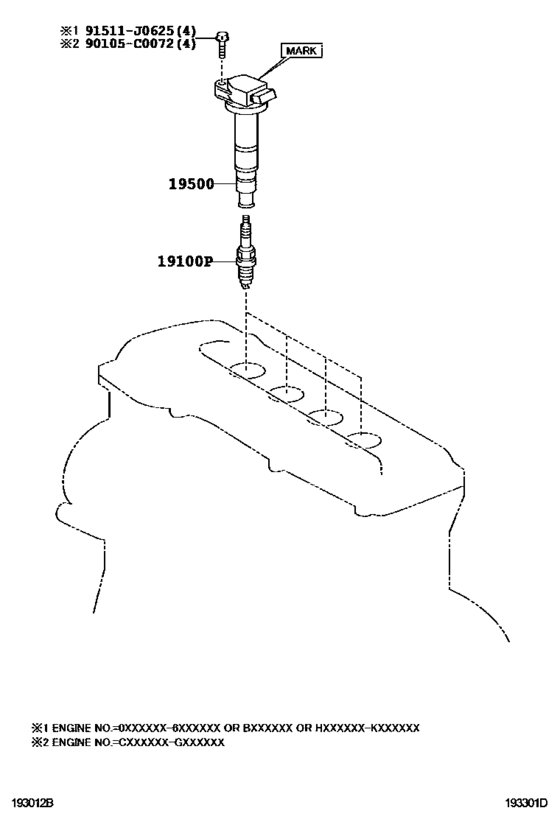

Ignition Coil & Spark Plug ([06.2009 - ] (0906- )2AZ#) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2011 - 2015
- Sales region
- General
- Frame
- ATH20
- grade
- 350G
- ENGINE
- 2AZFXE
- DESTINATION
- GEN
- Model
- Alphard II
- From
- 12.2011
- To
- 01.2015
- Gear Shift Type
- CVFC
- Seating Capacity
- 07S
- Vehicle Model
- Alphard
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
19100P
|
19100P
90919-01237
Spark Plug (Denso SK20R11)
[10.2011 - 06.2012] 2AZ#..ANH20,ATH20..RHD SK20R11,*195; 2AZFE..ANH20..RHD SK20R11,2AZ-FE CHINA,*195 |
90919-01237 |
— | ||
| replacement | |||||
|
19100P
|
19100P
90919-01210 Spark Plug (Denso SK20R11)[10.2011 - 06.2012] 2AZ#..ANH20,ATH20..RHD SK20R11,*195; 2AZFE..ANH20..RHD SK20R11,2AZ-FE CHINA,*195 |
90919-01210 |
from US $16.42 |
||
|
19100P
|
19100P
90919-01240 Spark Plug (DENSO SK16R11)[06.2012 - 01.2015] 2AZ#..ANH20,ATH20..RHD SK16R11,*195; 2AZFE..ANH20..RHD SK16R11,2AZ-FE CHINA,*195 |
90919-01240 |
from US $18.29 |
||
|
19500
|
19500
90919-02266 Coil Assy, Ignition[10.2011 -] 2AZ#..ANH20,ATH20 *195; 2AZFE..ANH20..RHD 2AZ-FE CHINA,*195 |
90919-02266 |
from US $91.51 |
||
|
90105C0072
|
90105C0072
90105-C0072
Bolt(For Cylinder Head Cover)
|
90105-C0072 |
— | ||
|
91511J0625
|
91511J0625
91511-J0625 Bolt(For Cylinder Head Cover) |
91511-J0625 |
from US $0.78 |
||
