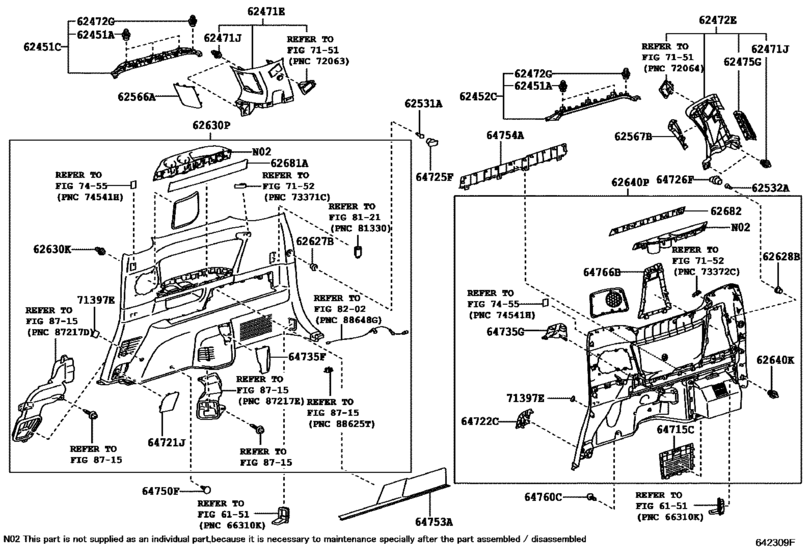

Inside Trim Board ([04.2008 - ] (0804- )) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2011 - 2015
- Sales region
- General
- Frame
- ATH20
- grade
- 350G
- ENGINE
- 2AZFXE
- DESTINATION
- GEN
- Model
- Alphard II
- From
- 12.2011
- To
- 01.2015
- Gear Shift Type
- CVFC
- Seating Capacity
- 07S
- Vehicle Model
- Alphard
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62451A
|
62451A
90467-10188 Clip(For Deck Boad)[10.2011 -] ANH20,ATH20,GGH20 |
90467-10188 |
from US $0.90 |
||
|
62451C
|
62451C
62450-58021-A0 Garnish, Roof Side Rail, Rear Rh[10.2011 - 06.2013] ANH20,ATH20,GGH20..07S..ALPHD SHELL,TRIM0# |
62450-58021-A0 |
US $41.64 |
||
| replacement | |||||
|
62451C
|
62451C
62450-58022-A0 Garnish, Roof Side Rail, Rear Rh[10.2011 - 06.2013] ANH20,ATH20,GGH20..07S..ALPHD SHELL,TRIM0# |
62450-58022-A0 |
US $41.64 |
||
|
62451C
|
62451C
62450-58022-A0 Garnish, Roof Side Rail, Rear Rh[07.2013 - 01.2015] ANH20,ATH20,GGH20..07S..ALPHD SHELL,TRIM0# |
62450-58022-A0 |
US $41.64 |
||
|
62452C
|
62452C
62460-58021-A0 Garnish, Roof Side Rail, Rear Lh[10.2011 - 06.2013] ANH20,ATH20,GGH20..07S..ALPHD SHELL,TRIM0# |
62460-58021-A0 |
US $42.08 |
||
| replacement | |||||
|
62452C
|
62452C
62460-58022-A0 Garnish, Roof Side Rail, Rear Lh[10.2011 - 06.2013] ANH20,ATH20,GGH20..07S..ALPHD SHELL,TRIM0# |
62460-58022-A0 |
US $42.08 |
||
|
62452C
|
62452C
62460-58022-A0 Garnish, Roof Side Rail, Rear Lh[07.2013 - 01.2015] ANH20,ATH20,GGH20..07S..ALPHD SHELL,TRIM0# |
62460-58022-A0 |
US $42.08 |
||
|
62471E
|
62471E
62471-58040-A0 Garnish, Roof Side, Inner Upper Rh[10.2011 - 01.2015] GGH20..ALPHD;ANH20,ATH20..350G SHELL,TRIM0# |
62471-58040-A0 |
US $125.22 |
||
| replacement | |||||
|
62471E
|
62471E
62471-58041-A0 Garnish, Roof Side, Inner Upper Rh[10.2011 - 01.2015] GGH20..ALPHD;ANH20,ATH20..350G SHELL,TRIM0# |
62471-58041-A0 |
US $125.22 |
||
|
62471J
|
62471J
90467-10161 Clip[10.2011 -] ANH20,ATH20,GGH20 |
90467-10161 |
from US $0.76 |
||
|
62472E
|
62472E
62472-58080-A0 Garnish, Roof Side, Inner Upper Lh[10.2011 - 01.2015] ANH20..LHD..GEN;ATH20,GGH20..ALPHD SHELL,TRIM0# |
62472-58080-A0 |
US $147.06 |
||
| replacement | |||||
|
62472E
|
62472E
62472-58081-A0 Garnish, Roof Side, Inner Upper Lh[10.2011 - 01.2015] ANH20..LHD..GEN;ATH20,GGH20..ALPHD SHELL,TRIM0# |
62472-58081-A0 |
US $147.06 |
||
|
62472G
|
62472G
90467-10161 Clip[10.2011 -] ANH20,ATH20,GGH20 |
90467-10161 |
from US $0.76 |
||
|
62475G
|
62475G
62475-58020 Seal, Roof Side, Inner[10.2011 -] ATH20,GGH20;ANH20..LHD..GEN |
62475-58020 |
US $33.72 |
||
|
62531A
|
62531A
62531-60010 Spacer, Quarter Trim, Rh[10.2011 - 01.2015] ANH20,ATH20,GGH20 |
62531-60010 |
from US $1.83 |
||
|
62532A
|
62532A
62531-60010 Spacer, Quarter Trim, Rh[10.2011 - 01.2015] ANH20,ATH20,GGH20 |
62531-60010 |
from US $1.83 |
||
|
62566A
|
62566A
62566-58020-A0 Cover, Rear Pillar, Rh[10.2011 - 01.2015] GGH20..ALPHD;ANH20,ATH20..350G SHELL,TRIM0# |
62566-58020-A0 |
US $41.64 |
||
|
62567B
|
62567B
62567-58020-A0 Cover, Rear Pillar, Lh[10.2011 - 01.2015] GGH20..ALPHD;ANH20,ATH20..350G SHELL,TRIM0# |
62567-58020-A0 |
US $41.64 |
||
|
62627B
|
62627B
62627-60010-A1 Cover, Quarter Trim[10.2011 - 01.2015] ANH20,ATH20,GGH20..07S..ALPHD SHELL,TRIM0# |
62627-60010-A1 |
US $6.12 |
||
|
62628B
|
62628B
62627-60010-A1 Cover, Quarter Trim[10.2011 - 01.2015] ANH20,ATH20,GGH20..07S..ALPHD SHELL,TRIM0# |
62627-60010-A1 |
US $6.12 |
||
|
62630K
|
62630K
90467-10161 Clip[10.2011 - 01.2015] ANH20,ATH20,GGH20 |
90467-10161 |
from US $0.76 |
||
|
62630P
|
62630P
62630-58780-A0 Panel Assy, Quarter Trim, Rear Rh[10.2011 - 05.2012] ATH20,GGH20..RHD..350G SHELL,TRIM0#; ANH20..4FC..GEN PHILIPPINES SPEC&AUDIO-RADIO LESS 8SPEAKER,SHELL,TRIM0#; ANH20..4FC..GEN AUDIO-AM/FM CD USB 8SPEAKER,SHELL,TRIM0# |
62630-58780-A0 |
US $628.99 |
||
|
62630P
|
62630P
62630-58790-A0 Panel Assy, Quarter Trim, Rear Rh[01.2012 - 04.2012] ATH20,GGH20..RHD..350G SPECIAL EDITION,SHELL,TRIM03 |
62630-58790-A0 |
US $630.45 |
||
|
62640K
|
62640K
90467-10161 Clip[10.2011 - 01.2015] ANH20,ATH20,GGH20 |
90467-10161 |
from US $0.76 |
||
|
62640P
|
62640P
62640-58A30-A1
Panel Assy, Quarter Trim, Rear Lh
[12.2011 - 05.2012] ATH20 SHELL,TRIM0# |
62640-58A30-A1 |
— | ||
|
62640P
|
62640P
62640-58A40-A1 Panel Assy, Quarter Trim, Rear Lh[01.2012 - 04.2012] ATH20 SPECIAL EDITION,SHELL,TRIM03 |
62640-58A40-A1 |
US $505.23 |
||
|
62681A
|
62681A
62681-58120 Ornament, Quarter Trim, Rh[10.2011 - 01.2015] ANH20..LHD..GEN;ATH20,GGH20..GEN; ANH20..350X THAILAND SPEC; ANH20..RHD..350G "L EDITION"*(L) OR "L PACKAGE"*(L) |
62681-58120 |
US $64.79 |
||
|
62682
|
62682
62682-58120 Ornament, Quarter Trim, Lh[10.2011 - 01.2015] ANH20..LHD..GEN;ATH20,GGH20..GEN; ANH20..350X THAILAND SPEC; ANH20..RHD..350G "L EDITION"*(L) OR "L PACKAGE"*(L) |
62682-58120 |
US $67.56 |
||
|
64715C
|
64715C
64715-58040-A0 Cover, Deck Side Trim, Lh[12.2011 - 01.2015] ATH20 SHELL,TRIM0# |
64715-58040-A0 |
US $38.29 |
||
|
64721J
|
64721J
64721-58020-A0 Cover, Luggage Compartment Trim, Inner Rh[10.2011 - 01.2015] ANH20,ATH20,GGH20..07S..ALPHD SHELL,TRIM0# |
64721-58020-A0 |
US $9.61 |
||
|
64722C
|
64722C
64722-58020-A0 Cover, Luggage Compartment Trim, Inner Lh[10.2011 - 01.2015] ANH20,ATH20,GGH20..07S..ALPHD SHELL,TRIM0# |
64722-58020-A0 |
US $9.61 |
||
|
64725F
|
64725F
64725-60020-A2 Hook, Luggage Compartment Trim, No.1[10.2011 - 01.2015] ANH20,ATH20,GGH20..07S..ALPHD SHELL,TRIM0# |
64725-60020-A2 |
US $5.42 |
||
|
64726F
|
64726F
64725-60020-A2 Hook, Luggage Compartment Trim, No.1[10.2011 - 01.2015] ANH20,ATH20,GGH20..07S..ALPHD SHELL,TRIM0# |
64725-60020-A2 |
US $5.42 |
||
|
64735F
|
64735F
64735-58030-A0 Cover, Deck Trim Side Service Hole, Rh[10.2011 - 01.2015] ANH20,ATH20,GGH20..07S..ALPHD SHELL,TRIM0# |
64735-58030-A0 |
US $14.41 |
||
|
64735G
|
64735G
64735-58040-A0 Cover, Deck Trim Side Service Hole, Lh[10.2011 - 01.2015] ANH20,ATH20,GGH20..07S..ALPHD SHELL,TRIM0# |
64735-58040-A0 |
US $14.85 |
||
|
64750F
|
64750F
90467-05164-A4 Clip, Roof Headlining[10.2011 - 01.2015] ANH20,ATH20,GGH20..07S..ALPHD SHELL,TRIM0# |
90467-05164-A4 |
from US $0.68 |
||
|
64753A
|
64753A
64753-58021-A0 Garnish, Deck Side, Rear, Rh[10.2011 - 01.2015] ANH20,ATH20,GGH20..07S..ALPHD SHELL,TRIM0# |
64753-58021-A0 |
US $46.88 |
||
|
64754A
|
64754A
64754-58021-A0 Garnish, Deck Side, Rear, Lh[10.2011 - 06.2013] ANH20,ATH20,GGH20..07S..ALPHD SHELL,TRIM0# |
64754-58021-A0 |
US $46.88 |
||
| replacement | |||||
|
64754A
|
64754A
64754-58022-A0 Garnish, Deck Side, Rear, Lh[10.2011 - 06.2013] ANH20,ATH20,GGH20..07S..ALPHD SHELL,TRIM0# |
64754-58022-A0 |
US $46.88 |
||
|
64754A
|
64754A
64754-58022-A0 Garnish, Deck Side, Rear, Lh[07.2013 - 01.2015] ANH20,ATH20,GGH20..07S..ALPHD SHELL,TRIM0# |
64754-58022-A0 |
US $46.88 |
||
|
64760C
|
64760C
90467-05164-A4 Clip, Roof Headlining[10.2011 - 01.2015] ANH20,ATH20,GGH20..07S..ALPHD SHELL,TRIM0# |
90467-05164-A4 |
from US $0.68 |
||
|
64766B
|
64766B
64766-58020-A0 Cover, Quarter Trim JackQUARTER TRIM JACK [10.2011 - 05.2012] ATH20,GGH20..RHD..350G SHELL,TRIM0# |
64766-58020-A0 |
US $44.55 |
||
|
64766B
|
64766B
64766-58030-A0 Cover, Quarter Trim Jack[01.2012 - 04.2012] ATH20,GGH20..RHD..350G SPECIAL EDITION,SHELL,TRIM03 |
64766-58030-A0 |
US $50.33 |
||
|
71397E
|
71397E
71397-28100-A0 Stopper, Rear Seat[10.2011 - 01.2015] ANH20,ATH20,GGH20..07S..ALPHD SHELL,TRIM0# |
71397-28100-A0 |
US $5.38 |
||
