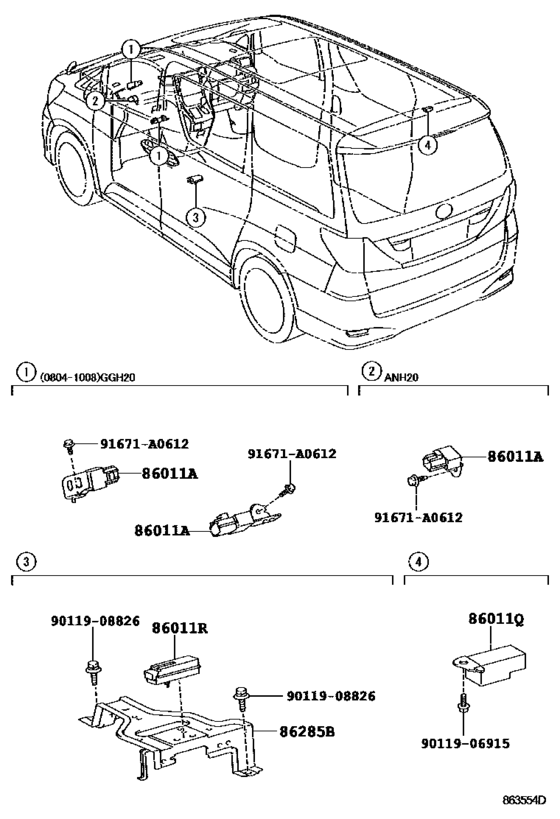

Radio Receiver & Amplifier & Condenser ([04.2008 - ] CONDENSER (0804- )) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2011 - 2015
- Sales region
- General
- Frame
- ATH20
- grade
- 350G
- ENGINE
- 2AZFXE
- DESTINATION
- GEN
- Model
- Alphard II
- From
- 12.2011
- To
- 01.2015
- Gear Shift Type
- CVFC
- Seating Capacity
- 07S
- Vehicle Model
- Alphard
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86011Q
|
86011Q
90980-04171 Condenser, Radio Setting[10.2011 -] ANH20,ATH20,GGH20 |
90980-04171 |
US $8.44 |
||
|
86011R
|
86011R
86516-58030 Condenser, Radio Setting[10.2011 - 05.2012] ATH20,GGH20..RHD..(350G,350S); ANH20..4FC..GEN AUDIO-RADIO LESS 8SPEAKER; ANH20..4FC..GEN AUDIO-AM/FM CD USB 8SPEAKER |
86516-58030 |
US $34.36 |
||
|
86285B
|
86285B
86285-58180 Bracket, Amplifier, No.1[10.2011 - 01.2015] ANH20,ATH20,GGH20 |
86285-58180 |
US $30.43 |
||
|
91671A0612
|
91671A0612
91671-A0612 BOLT FLANGE |
91671-A0612 |
from US $0.64 |
||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.55 |
||
|
9011908826
|
9011908826
90119-08826 BOLT |
90119-08826 |
US $1.31 |
