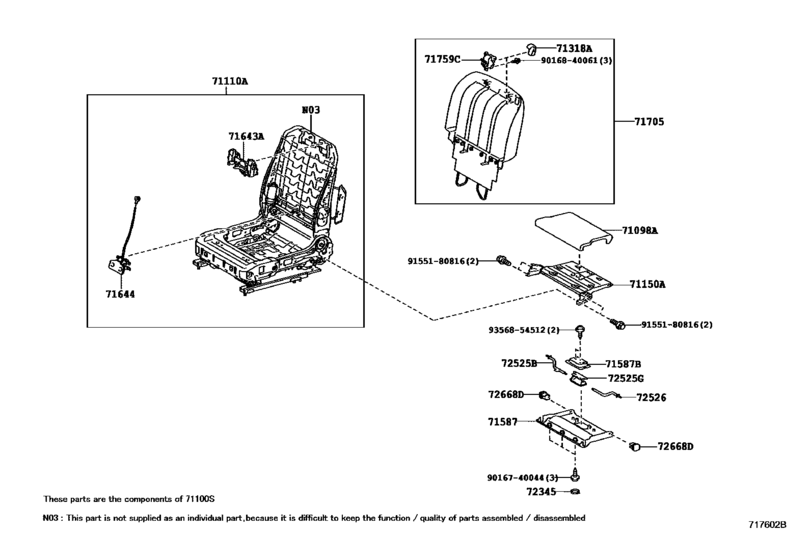

Seat & Seat Track ([10.2011 - ] DRIVER SEAT W(POWER SEAT) (1110- )RHD..07S..350G,350S) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2011 - 2015
- Sales region
- General
- Frame
- ATH20
- grade
- 350G
- ENGINE
- 2AZFXE
- DESTINATION
- GEN
- Model
- Alphard II
- From
- 12.2011
- To
- 01.2015
- Gear Shift Type
- CVFC
- Seating Capacity
- 07S
- Vehicle Model
- Alphard
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71098A
|
71098A
71099-58010-A2 Cover Sub-Assy, Front Seat Back, Lower Rh[10.2011 - 01.2015] ANH20,ATH20,GGH20..350G SHELL,TRIM0# |
71099-58010-A2 |
US $192.19 |
||
|
71110A
|
71110A
71110-58200 Frame Assy, Front Seat W/adjuster, Rh[12.2011 - 05.2012] ATH20 |
71110-58200 |
US $1,863.68 |
||
| replacements | |||||
|
71110A
|
71110A
71110-58201 Frame Assy, Front Seat W/adjuster, Rh[12.2011 - 05.2012] ATH20 |
71110-58201 |
US $1,543.36 |
||
|
71110A
|
71110A
73214-75010 Plate, Front Seat Belt Anchor[12.2011 - 05.2012] ATH20 |
73214-75010 |
US $3.05 |
||
|
71110A
|
71110A
71110-58201 Frame Assy, Front Seat W/adjuster, Rh[05.2012 - 09.2012] ATH20 |
71110-58201 |
US $1,543.36 |
||
|
71150A
|
71150A
71160-58010 Frame Assy, Front Seat Back, Lower Rh[10.2011 - 01.2015] ANH20,ATH20,GGH20..07S..(350G,350S) |
71160-58010 |
US $101.92 |
||
|
71318A
|
71318A
71318-58010-A0 Hook, Front Seat Back Lock[10.2011 - 01.2015] ANH20,ATH20,GGH20..350G SHELL,TRIM0# |
71318-58010-A0 |
US $5.39 |
||
|
71587
|
71587
71587-58020-A0 Protector, Front Seat Back Edge[10.2011 - 01.2015] ANH20,ATH20,GGH20..350G SHELL,TRIM0# |
71587-58020-A0 |
US $80.08 |
||
|
71587B
|
71587B
71587-58030-A1 Protector, Front Seat Back Edge[10.2011 - 01.2015] ANH20,ATH20,GGH20..350G SHELL,TRIM0# |
71587-58030-A1 |
US $16.31 |
||
|
71643A
|
71643A
71643-12011 Unit, Active Headrest, Upr[10.2011 - 01.2015] ANH20,ATH20,GGH20 |
71643-12011 |
US $62.46 |
||
|
71644
|
71644
71644-12030 Unit, Active Headrest, Lwr[10.2011 - 01.2015] ANH20,ATH20,GGH20 |
71644-12030 |
US $50.38 |
||
|
71705
|
71705
71701-58020-A2 Board Sub-Assy, Front Seat Back, Rh[10.2011 - 01.2015] ANH20,ATH20,GGH20..RHD..350G SHELL,TRIM0# |
71701-58020-A2 |
US $182 |
||
|
71759C
|
71759C
71318-58020-A0 Hook, Front Seat Back, No.1[10.2011 - 01.2015] ANH20,ATH20,GGH20..350G SHELL,TRIM0# |
71318-58020-A0 |
US $8.88 |
||
|
72345
|
72345
72345-58040-A0 Cap, Seat Stand Frame[10.2011 - 01.2015] ANH20,ATH20,GGH20..350G SHELL,TRIM0# |
72345-58040-A0 |
US $1.46 |
||
|
72525B
|
72525B
72526-58100-A0 Handle, Reclining Adjuster Release, Rh[10.2011 - 01.2015] ANH20,ATH20,GGH20..350G SHELL,TRIM0# |
72526-58100-A0 |
US $5.10 |
||
|
72525G
|
72525G
72525-58090-A0 Handle, Front Seat Back Lock[10.2011 - 01.2015] ANH20,ATH20,GGH20..350G SHELL,TRIM0# |
72525-58090-A0 |
US $18.93 |
||
|
72526
|
72526
72526-58110-A0 Handle, Reclining Adjuster Release, Lh[10.2011 - 01.2015] ANH20,ATH20,GGH20..350G SHELL,TRIM0# |
72526-58110-A0 |
US $4.80 |
||
|
72668D
|
72668D
72668-58040-A0 Bezel, Front Seat Back Lock, Lower No.3[10.2011 - 01.2015] ANH20,ATH20,GGH20..350G SHELL,TRIM0# |
72668-58040-A0 |
US $0.87 |
||
|
9016740044
|
9016740044
90167-40044 BOLT |
90167-40044 |
from US $0.92 |
||
|
9016840061
|
9016840061
90168-40061 SCREW |
90168-40061 |
from US $0.76 |
||
|
9155180816
|
9155180816
91551-80816 Bolt(For Manual Transmission Oil Separator) |
91551-80816 |
from US $0.99 |
||
|
9356854512
|
9356854512
93568-54512 SCREW |
93568-54512 |
from US $0.64 |
||
