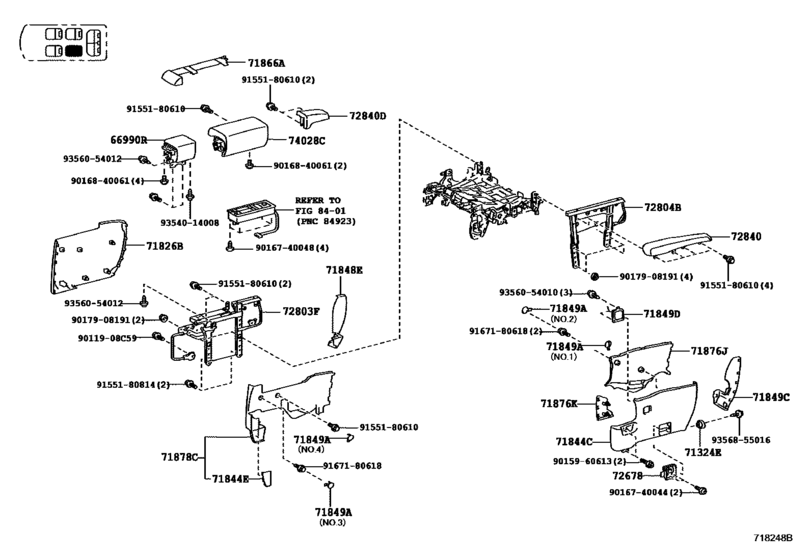

Seat & Seat Track ([09.2012 - ] REAR NO.1 LH W(CLIMATE CONTROL SEAT (1209- )350G) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2011 - 2015
- Sales region
- General
- Frame
- ATH20
- grade
- 350G
- ENGINE
- 2AZFXE
- DESTINATION
- GEN
- Model
- Alphard II
- From
- 12.2011
- To
- 01.2015
- Gear Shift Type
- CVFC
- Seating Capacity
- 07S
- Vehicle Model
- Alphard
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
66990R
|
66990R
66990-58020-A0 Holder Assy, Cup, No.1[10.2011 - 01.2015] ANH20..LHD..GEN;ATH20,GGH20..350G..GEN SHELL,TRIM0#; ANH20..RHD..350G "L EDITION"*(L) OR "L PACKAGE"*(L),SHELL,TRIM0# |
66990-58020-A0 |
US $52.12 |
||
|
71324E
|
71324E
71324-58070 Cushion, Rear Seat, Lh[10.2011 - 01.2015] ANH20..LHD..GEN;ATH20,GGH20..350G..GEN; ANH20..RHD..350G "L EDITION"*(L) OR "L PACKAGE"*(L) |
71324-58070 |
US $5.10 |
||
|
71826B
|
71826B
71826-58040-A0 Moulding, Rear Seat Cushion, Lh[10.2011 - 01.2015] ANH20..LHD..GEN;ATH20,GGH20..350G..GEN SHELL,TRIM0#; ANH20..RHD..350G "L EDITION"*(L) OR "L PACKAGE"*(L),SHELL,TRIM0# |
71826-58040-A0 |
US $100.46 |
||
|
71844C
|
71844C
71844-58050-A0 Cover, Rear Seat Reclining, No.2 Lh[10.2011 - 01.2015] ANH20..LHD..GEN;ATH20,GGH20..350G..GEN SHELL,TRIM0#; ANH20..RHD..350G "L EDITION"*(L) OR "L PACKAGE"*(L),SHELL,TRIM0# |
71844-58050-A0 |
US $101.92 |
||
|
71844E
|
71844E
71844-58060-A0 Cover, Rear Seat Reclining, Rh (For Lh Seat)[10.2011 - 01.2015] GGH20..350G;ANH20,ATH20..07S SHELL,TRIM0#; ANH20..350X THAILAND SPEC,SHELL,TRIM0# |
71844-58060-A0 |
US $15.29 |
||
|
71848E
|
71848E
71848-58030-A0 Cap, Seat Adjuster Cover, Rh(For Lh Seat)[10.2011 - 01.2015] ANH20..LHD..GEN;ATH20,GGH20..350G..GEN SHELL,TRIM0#; ANH20..RHD..350G "L EDITION"*(L) OR "L PACKAGE"*(L),SHELL,TRIM0# |
71848-58030-A0 |
US $26.94 |
||
|
71849A
|
71849A
71849-58040-A0 Cap, Seat Adjuster Cover, Lh[10.2011 - 01.2015] ANH20..LHD..GEN;ATH20,GGH20..350G..GEN SHELL,TRIM0#,NO.1; ANH20..RHD..350G "L EDITION"*(L) OR "L PACKAGE"*(L),SHELL,TRIM0#,NO.1 |
71849-58040-A0 |
US $1.46 |
||
|
71849A
|
71849A
71849-58050-A0 Cap, Seat Adjuster Cover, Lh[10.2011 - 01.2015] ANH20..LHD..GEN;ATH20,GGH20..350G..GEN SHELL,TRIM0#,NO.2; ANH20..RHD..350G "L EDITION"*(L) OR "L PACKAGE"*(L),SHELL,TRIM0#,NO.2 |
71849-58050-A0 |
US $1.46 |
||
|
71849A
|
71849A
71849-58060-A0 Cap, Seat Adjuster Cover, Lh[10.2011 - 01.2015] ANH20..LHD..GEN;ATH20,GGH20..350G..GEN SHELL,TRIM0#,NO.3; ANH20..RHD..350G "L EDITION"*(L) OR "L PACKAGE"*(L),SHELL,TRIM0#,NO.3 |
71849-58060-A0 |
US $1.46 |
||
|
71849A
|
71849A
71849-58070-A0 Cap, Seat Adjuster Cover, Lh[10.2011 - 01.2015] ANH20..LHD..GEN;ATH20,GGH20..350G..GEN SHELL,TRIM0#,NO.4; ANH20..RHD..350G "L EDITION"*(L) OR "L PACKAGE"*(L),SHELL,TRIM0#,NO.4 |
71849-58070-A0 |
US $1.46 |
||
|
71849C
|
71849C
71849-58020-A0 Cap, Seat Adjuster Cover, Lh(For Lh Seat)[10.2011 - 01.2015] ANH20..LHD..GEN;ATH20,GGH20..350G..GEN SHELL,TRIM0#; ANH20..RHD..350G "L EDITION"*(L) OR "L PACKAGE"*(L),SHELL,TRIM0# |
71849-58020-A0 |
US $26.50 |
||
|
71866A
|
71866A
71866-58010-A0 Bezel, Rear Seat Cover, No.2[10.2011 - 01.2015] ANH20..LHD..GEN;ATH20,GGH20..350G..GEN SHELL,TRIM0#; ANH20..RHD..350G "L EDITION"*(L) OR "L PACKAGE"*(L),SHELL,TRIM0# |
71866-58010-A0 |
US $16.60 |
||
|
71876J
|
71876J
71876-58150-A0 Cover, Reclining Adjuster Inside, Lh[10.2011 - 01.2015] ANH20..LHD..GEN;ATH20,GGH20..350G..GEN SHELL,TRIM0#; ANH20..RHD..350G "L EDITION"*(L) OR "L PACKAGE"*(L),SHELL,TRIM0# |
71876-58150-A0 |
US $50.09 |
||
|
71876K
|
71876K
71876-58130-A0 Cover, Reclining Adjuster Inside, Lh[10.2011 - 01.2015] GGH20..350G;ANH20,ATH20..07S SHELL,TRIM0#; ANH20..350X THAILAND SPEC,SHELL,TRIM0# |
71876-58130-A0 |
US $16.31 |
||
|
71878C
|
71878C
71875-58160-A0 Cover, Rear Seat Reclining, Inner Rh[10.2011 - 01.2015] ANH20..LHD..GEN;ATH20,GGH20..350G..GEN SHELL,TRIM0#; ANH20..RHD..350G "L EDITION"*(L) OR "L PACKAGE"*(L),SHELL,TRIM0# |
71875-58160-A0 |
US $84.45 |
||
|
72678
|
72678
72678-58010-A0 Base, Rear Seat Back Lock Control Lever, Lh[10.2011 - 01.2015] ANH20..LHD..GEN;ATH20,GGH20..350G..GEN SHELL,TRIM0#; ANH20..RHD..350G "L EDITION"*(L) OR "L PACKAGE"*(L),SHELL,TRIM0# |
72678-58010-A0 |
US $58.88 |
||
|
72803F
|
72803F
72804-58020 Frame Sub-Assy, Rear Seat Armrest, Rh (For Lh Seat)[10.2011 - 01.2015] ANH20..LHD..GEN;ATH20,GGH20..350G..GEN; ANH20..RHD..350G "L EDITION"*(L) OR "L PACKAGE"*(L) |
72804-58020 |
US $66.10 |
||
|
72804B
|
72804B
72803-58020 Frame Sub-Assy, Rear Seat Armrest, Lh (For Lh Seat)[10.2011 - 09.2012] ANH20..LHD..GEN;ATH20,GGH20..350G..GEN; ANH20,GGH20..GCC;ANH20..RHD..350G "L EDITION"*(L) OR "L PACKAGE"*(L) |
72803-58020 |
US $58.39 |
||
|
72804B
|
72804B
72803-58040 Frame Sub-Assy, Rear Seat Armrest, Lh (For Lh Seat)[09.2012 - 01.2015] ANH20..LHD;ATH20,GGH20..350G; ANH20..RHD..350G "L EDITION"*(L) OR "L PACKAGE"*(L) |
72803-58040 |
US $48.63 |
||
|
72840
|
72840
72840-58030-A1 Armrest Assy, Rear No.1 Seat, Lh[10.2011 - 09.2012] ANH20..LHD..GEN;ATH20,GGH20..350G..GEN SHELL,TRIM0#; ANH20,GGH20..GCC;ANH20..RHD..350G "L EDITION"*(L) OR "L PACKAGE"*(L),SHELL,TRIM0# |
72840-58030-A1 |
US $356.72 |
||
| replacement | |||||
|
72840
|
72840
72840-58030-A3 Armrest Assy, Rear No.1 Seat, Lh[10.2011 - 09.2012] ANH20..LHD..GEN;ATH20,GGH20..350G..GEN SHELL,TRIM0#; ANH20,GGH20..GCC;ANH20..RHD..350G "L EDITION"*(L) OR "L PACKAGE"*(L),SHELL,TRIM0# |
72840-58030-A3 |
US $297.02 |
||
|
72840
|
72840
72840-58030-A3 Armrest Assy, Rear No.1 Seat, Lh[09.2012 - 01.2015] ANH20..LHD;ATH20,GGH20..350G SHELL,TRIM0#; ANH20..RHD..350G "L EDITION"*(L) OR "L PACKAGE"*(L),SHELL,TRIM0# |
72840-58030-A3 |
US $297.02 |
||
|
72840D
|
72840D
72890-58590-A1 Armrest Assy, Rear Seat, Lh[10.2011 - 09.2012] ANH20..LHD..GEN;ATH20,GGH20..350G..GEN SHELL,TRIM0#; ANH20,GGH20..GCC;ANH20..RHD..350G "L EDITION"*(L) OR "L PACKAGE"*(L),SHELL,TRIM0# |
72890-58590-A1 |
US $356.72 |
||
| replacement | |||||
|
72840D
|
72840D
72890-58590-A3 Armrest Assy, Rear Seat, Lh[10.2011 - 09.2012] ANH20..LHD..GEN;ATH20,GGH20..350G..GEN SHELL,TRIM0#; ANH20,GGH20..GCC;ANH20..RHD..350G "L EDITION"*(L) OR "L PACKAGE"*(L),SHELL,TRIM0# |
72890-58590-A3 |
US $297.02 |
||
|
72840D
|
72840D
72890-58590-A3 Armrest Assy, Rear Seat, Lh[09.2012 - 01.2015] ANH20..LHD;ATH20,GGH20..350G SHELL,TRIM0#; ANH20..RHD..350G "L EDITION"*(L) OR "L PACKAGE"*(L),SHELL,TRIM0# |
72890-58590-A3 |
US $297.02 |
||
|
9011908C59
|
9011908C59
90119-08C59 New Genuine Part |
90119-08C59 |
US $1.43 |
||
|
9015960613
|
9015960613
90159-60613 New Genuine Part |
90159-60613 |
US $1.08 |
||
|
9016740044
|
9016740044
90167-40044 BOLT |
90167-40044 |
from US $0.92 |
||
|
9016740048
|
9016740048
90167-40048 SCREW PAN TAPPING |
90167-40048 |
US $0.69 |
||
|
9016840061
|
9016840061
90168-40061 SCREW |
90168-40061 |
from US $0.76 |
||
|
9017908191
|
9017908191
90179-08191 New Genuine Part |
90179-08191 |
US $1.61 |
||
|
9155180610
|
9155180610
91551-80610 BOLT FLANGE |
91551-80610 |
US $1.08 |
||
|
9155180814
|
9155180814
91551-80814 Bolt, Hexagon (For Rear Spring Seat Bolt) |
91551-80814 |
US $1.43 |
||
|
9167180618
|
9167180618
91671-80618 BOLT FLANGE WWSHER |
91671-80618 |
US $1.08 |
||
|
9354014008
|
9354014008
93540-14008 New Genuine Part |
93540-14008 |
US $1.61 |
||
|
9356054010
|
9356054010
93560-54010 SCREW |
93560-54010 |
US $1.25 |
||
|
9356054012
|
9356054012
93560-54012 Screw |
93560-54012 |
from US $0.66 |
||
|
9356855016
|
9356855016
93568-55016 Screw |
93568-55016 |
from US $0.51 |
||
