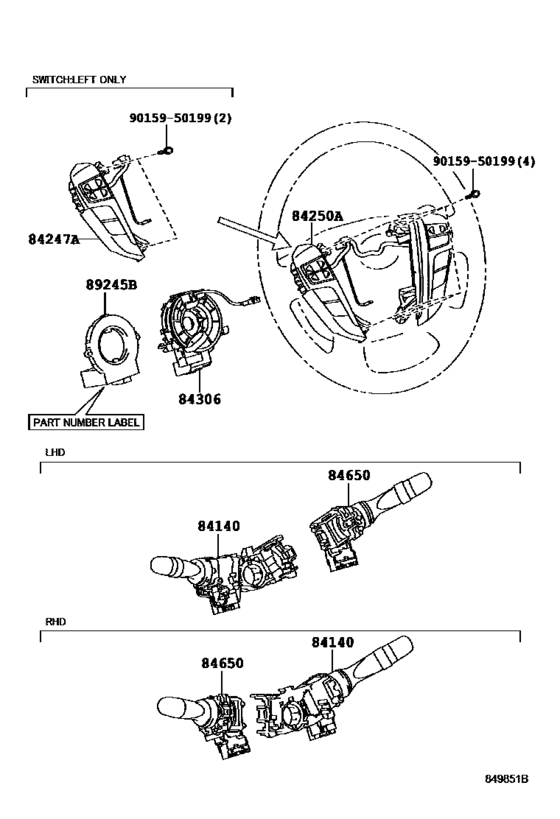

Switch & Relay & Computer ([04.2008 - ] STEERING (0804- )) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2011 - 2015
- Sales region
- General
- Frame
- ATH20
- grade
- 350G
- ENGINE
- 2AZFXE
- DESTINATION
- GEN
- Model
- Alphard II
- From
- 12.2011
- To
- 01.2015
- Gear Shift Type
- CVFC
- Seating Capacity
- 07S
- Vehicle Model
- Alphard
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84140
|
84140
84140-42070 Switch Assy, Headlamp Dimmer[10.2011 - 01.2015] ANH20,ATH20,GGH20..RHD |
84140-42070 |
from US $99.16 |
||
|
84247A
|
84247A
84247-58040-E0
Switch, Steering Pad, Lh
[10.2011 - 01.2015] ANH20,ATH20,GGH20..RHD..07S..ALPHD DK. BROWN,TRIM0# |
84247-58040-E0 |
— | ||
|
84306
|
84306
84306-52090 Cable Sub-Assy, Spiral[10.2011 -] ANH20,ATH20,GGH20 |
84306-52090 |
from US $167.06 |
||
|
84650
|
84650
84652-42140 Switch Assy, Windshield Wiper[10.2011 - 01.2015] ATH20,GGH20..RHD;ANH20..RHD..350G; ANH20..350X THAILAND SPEC |
84652-42140 |
US $116.48 |
||
| replacement | |||||
|
84650
|
84650
84652-42141 Switch Assy, Windshield Wiper[10.2011 - 01.2015] ATH20,GGH20..RHD;ANH20..RHD..350G; ANH20..350X THAILAND SPEC |
84652-42141 |
US $142.68 |
||
|
89245B
|
89245B
89245-33050 Sensor, Steering[12.2011 - 01.2015] ATH20 P/N LABEL=8924533050 |
89245-33050 |
from US $185.72 |
||
|
9015950199
|
9015950199
90159-50199 SCREW |
90159-50199 |
from US $0.49 |
||
