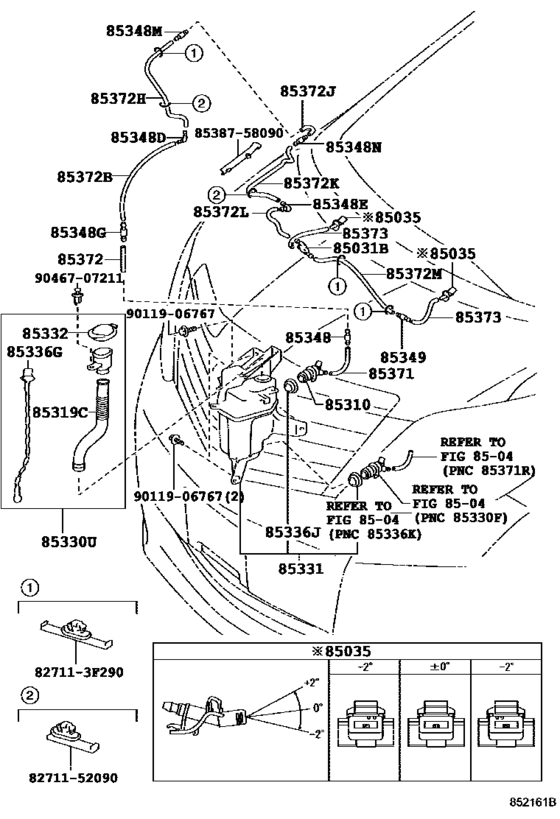

Windshield Washer ([04.2008 - ] (0804- )4FC..GEN ; (0804- )ANH20..RHD ; (0 804- )ATH20,GGH20..GEN) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2011 - 2015
- Sales region
- General
- Frame
- ATH20
- grade
- 350G
- ENGINE
- 2AZFXE
- DESTINATION
- GEN
- Model
- Alphard II
- From
- 12.2011
- To
- 01.2015
- Gear Shift Type
- CVFC
- Seating Capacity
- 07S
- Vehicle Model
- Alphard
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85031B
|
85031B
85321-28020 Valve Sub-Assy, Washer[10.2011 -] ANH20,ATH20,GGH20 |
85321-28020 |
from US $10.20 |
||
|
85035
|
85035
85381-12300 Nozzle Sub-Assy, Washer[10.2011 -] ANH20,ATH20,GGH20 ANGLE 0 |
85381-12300 |
from US $8.39 |
||
|
85035
|
85035
85381-12310 Nozzle Sub-Assy, Washer[10.2011 -] ANH20,ATH20,GGH20 ANGLE -2 |
85381-12310 |
US $13.10 |
||
|
85035
|
85035
85381-12320 Nozzle Sub-Assy, Washer[10.2011 -] ANH20,ATH20,GGH20 ANGLE +2 |
85381-12320 |
from US $8.39 |
||
|
85310
|
85310
85330-71020 Motor And Pump Assy, Windshield Washer[10.2011 -] ANH20,ATH20,GGH20..RHD |
85330-71020 |
from US $54.86 |
||
|
85319C
|
85319C
85319-58020 Hose, Washer[10.2011 -] ANH20,ATH20,GGH20 |
85319-58020 |
US $19.39 |
||
|
85330U
|
85330U
85316-58020 Cap, Washer TankWASHER TANK [10.2011 -] ANH20,ATH20,GGH20..RHD |
85316-58020 |
US $46.70 |
||
|
85331
|
85331
85315-28230 Jar Sub-Assy, Windshield Washer[10.2011 -] ANH20,ATH20,GGH20..RHD |
85315-28230 |
US $80.47 |
||
|
85332
|
85332
85316-26030 Cap, Washer, Inlet[10.2011 -] ANH20,ATH20,GGH20..RHD |
85316-26030 |
from US $1.75 |
||
|
85336G
|
85336G
85318-58020 Gage, Water Level[10.2011 -] ANH20,ATH20,GGH20..RHD |
85318-58020 |
US $8.91 |
||
|
85336J
|
85336J
85336-60300 Bush, Windshield Washer Jar[10.2011 -] ANH20,ATH20,GGH20 |
85336-60300 |
from US $1.92 |
||
|
85348
|
85348
85349-89122 Valve Sub-Assy, Washer[10.2011 -] ANH20,ATH20,GGH20 |
85349-89122 |
from US $1.25 |
||
|
85348D
|
85348D
85355-20200 Joint, Windshield Washer Hose, No.1[10.2011 -] ANH20,ATH20,GGH20 |
85355-20200 |
from US $0.98 |
||
|
85348E
|
85348E
85355-20200 Joint, Windshield Washer Hose, No.1[10.2011 -] ANH20,ATH20,GGH20 |
85355-20200 |
from US $0.98 |
||
|
85348G
|
85348G
85349-89122 Valve Sub-Assy, Washer[10.2011 -] ANH20,ATH20,GGH20 |
85349-89122 |
from US $1.25 |
||
|
85348M
|
85348M
85349-89122 Valve Sub-Assy, Washer[10.2011 -] ANH20,ATH20,GGH20 |
85349-89122 |
from US $1.25 |
||
|
85348N
|
85348N
85349-89122 Valve Sub-Assy, Washer[10.2011 -] ANH20,ATH20,GGH20 |
85349-89122 |
from US $1.25 |
||
|
85349
|
85349
85349-89122 Valve Sub-Assy, Washer[10.2011 -] ANH20,ATH20,GGH20 |
85349-89122 |
from US $1.25 |
||
|
85371
|
85371
90099-33080 Hose, Windshield Washer (From Motor To Joint)[10.2011 -] ANH20,ATH20,GGH20..RHD *H,L=150; ANH20,GGH20..LHD *H,L=210 |
90099-33080 |
from US $5.38 |
||
|
85372
|
85372
90099-33080 Hose, Windshield Washer (From Motor To Joint)[10.2011 -] ANH20,ATH20,GGH20 *H,L=100 |
90099-33080 |
from US $5.38 |
||
|
85372B
|
85372B
90099-33080 Hose, Windshield Washer (From Motor To Joint)[10.2011 -] ANH20,ATH20,GGH20 *H,L=550 |
90099-33080 |
from US $5.38 |
||
|
85372H
|
85372H
90099-33080 Hose, Windshield Washer (From Motor To Joint)[10.2011 -] ANH20,ATH20,GGH20 *H,L=370 |
90099-33080 |
from US $5.38 |
||
|
85372J
|
85372J
85375-33040 Joint, Windshield Washer Elbow, No.1[10.2011 -] ANH20,ATH20,GGH20 |
85375-33040 |
from US $0.70 |
||
|
85372K
|
85372K
90099-33080 Hose, Windshield Washer (From Motor To Joint)[10.2011 -] ANH20,ATH20,GGH20 *H,L=440 |
90099-33080 |
from US $5.38 |
||
|
85372L
|
85372L
90099-33080 Hose, Windshield Washer (From Motor To Joint)[10.2011 -] ANH20,ATH20,GGH20 *H,L=230 |
90099-33080 |
from US $5.38 |
||
|
85372M
|
85372M
90099-33080 Hose, Windshield Washer (From Motor To Joint)[10.2011 -] ANH20,ATH20,GGH20 *H,L=590 |
90099-33080 |
from US $5.38 |
||
|
85373
|
85373
90099-33080 Hose, Windshield Washer (From Motor To Joint)[10.2011 -] ANH20,ATH20,GGH20 *H,L=150 |
90099-33080 |
from US $5.38 |
||
|
827113F290
|
827113F290
82711-3F290 Clamp, Rear Washer Hose |
82711-3F290 |
US $1.79 |
||
|
8271152090
|
8271152090
82711-52090 Clamp |
82711-52090 |
from US $0.90 |
||
|
8538758090
|
8538758090
85387-58090 Clamp No.1 (for Windseield Washer) |
85387-58090 |
US $7.86 |
||
|
9011906767
|
9011906767
90119-06767 Bolt, W/washer(For Engine Under Cover) |
90119-06767 |
from US $0.68 |
||
|
9046707211
|
9046707211
90467-07211 Clip(For Reserve Tank Outlet Hose No.2) |
90467-07211 |
from US $0.84 |
