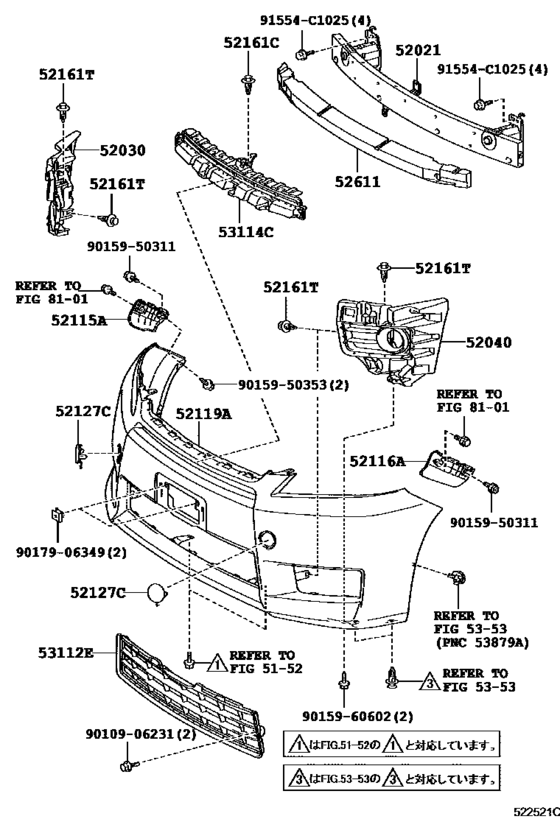

Front Bumper & Bumper Stay ([10.2011 - ] (1110- )VFIRE..24V,24X,35V,HBDV,HBDX) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2011 - 2015
- Sales region
- Japan
- Frame
- ATH20
- grade
- HBDV
- ENGINE
- 2AZFXE
- Model
- Vellfire II
- From
- 12.2011
- To
- 01.2015
- Gear Shift Type
- CVFC
- Seating Capacity
- 07S
- Vehicle Model
- Vellfire
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52021
|
52021
52021-58020 Reinforcement Sub-Assy, Front Bumper[10.2011 -] ANH2#,ATH20,GGH2#..CBU |
52021-58020 |
from US $180.98 |
||
|
52030
|
52030
52030-58030 Cover Assy, Front Bumper Hole, Rh[10.2011 - 01.2015] ANH2#,ATH20,GGH2#..VFIRE..(24V,24X,35V,HBDV,HBDX)..CBU |
52030-58030 |
US $159.08 |
||
|
52040
|
52040
52040-58030 Cover Assy, Front Bumper Hole, Lh[10.2011 - 01.2015] ANH2#,ATH20,GGH2#..VFIRE..(24V,24X,35V,HBDV,HBDX)..CBU |
52040-58030 |
US $159.08 |
||
|
52115A
|
52115A
52115-58050 Support, Front Bumper Side, Rh[10.2011 - 01.2015] ANH2#,ATH20,GGH2#..VFIRE..CBU |
52115-58050 |
from US $47.54 |
||
|
52116A
|
52116A
52116-58050 Support, Front Bumper Side, Lh[10.2011 -] ANH2#,ATH20,GGH2#..VFIRE..CBU |
52116-58050 |
from US $47.54 |
||
|
52119A
|
52119A
52119-58380-A0 Cover, Front Bumper[10.2011 - 01.2015] ANH2#,ATH20,GGH2#..VFIRE..(24V,24X,35V,HBDV,HBDX)..CBU WHITE PEARL CS.,070 |
52119-58380-A0 |
from US $1,391.97 |
||
|
52119A
|
52119A
52119-58380-B1 Cover, Front Bumper[10.2011 - 01.2015] ANH2#,ATH20,GGH2#..VFIRE..(24V,24X,35V,HBDV,HBDX)..CBU SILVER ME.,1F7 |
52119-58380-B1 |
US $1,550.40 |
||
| replacement | |||||
|
52119A
|
52119A
52119-58929 Cover, Front Bumper[10.2011 - 01.2015] ANH2#,ATH20,GGH2#..VFIRE..(24V,24X,35V,HBDV,HBDX)..CBU SILVER ME.,1F7 |
52119-58929 |
US $959.40 |
||
|
52119A
|
52119A
52119-58380-C0 Cover, Front Bumper[10.2011 - 01.2015] ANH2#,ATH20,GGH2#..VFIRE..(24V,24X,35V,HBDV,HBDX)..CBU BLACK,202 |
52119-58380-C0 |
US $1,550.40 |
||
|
52119A
|
52119A
52119-58380-D0 Cover, Front Bumper[10.2011 - 01.2015] ANH2#,ATH20,GGH2#..VFIRE..(24V,24X,35V,HBDV,HBDX)..CBU DEEP RED M.M.,3R9 |
52119-58380-D0 |
US $1,550.40 |
||
| replacement | |||||
|
52119A
|
52119A
52119-58929 Cover, Front Bumper[10.2011 - 01.2015] ANH2#,ATH20,GGH2#..VFIRE..(24V,24X,35V,HBDV,HBDX)..CBU DEEP RED M.M.,3R9 |
52119-58929 |
US $959.40 |
||
|
52119A
|
52119A
52119-58380-J0 Cover, Front Bumper[10.2011 - 01.2015] ANH2#,ATH20,GGH2#..VFIRE..(24V,24X,35V,HBDV,HBDX)..CBU LT.BLUE ME.,8Q6 |
52119-58380-J0 |
US $1,550.40 |
||
| replacement | |||||
|
52119A
|
52119A
52119-58929 Cover, Front Bumper[10.2011 - 01.2015] ANH2#,ATH20,GGH2#..VFIRE..(24V,24X,35V,HBDV,HBDX)..CBU LT.BLUE ME.,8Q6 |
52119-58929 |
US $959.40 |
||
|
52127C
|
52127C
52127-58210-A0 Cover, Front Bumper Hole[10.2011 - 01.2015] ANH2#,ATH20,GGH2#..VFIRE..(24V,24X,35V,HBDV,HBDX)..CBU WHITE PEARL CS.,070 |
52127-58210-A0 |
US $11.11 |
||
|
52127C
|
52127C
52127-58210-B1 Cover, Front Bumper Hole[10.2011 - 01.2015] ANH2#,ATH20,GGH2#..VFIRE..(24V,24X,35V,HBDV,HBDX)..CBU SILVER ME.,1F7 |
52127-58210-B1 |
US $11.11 |
||
|
52127C
|
52127C
52127-58210-C0 Cover, Front Bumper Hole[10.2011 - 01.2015] ANH2#,ATH20,GGH2#..VFIRE..(24V,24X,35V,HBDV,HBDX)..CBU BLACK,202 |
52127-58210-C0 |
US $11.11 |
||
|
52127C
|
52127C
52127-58210-D0 Cover, Front Bumper Hole[10.2011 - 01.2015] ANH2#,ATH20,GGH2#..VFIRE..(24V,24X,35V,HBDV,HBDX)..CBU DEEP RED M.M.,3R9 |
52127-58210-D0 |
US $11.11 |
||
|
52127C
|
52127C
52127-58210-J0 Cover, Front Bumper Hole[10.2011 - 01.2015] ANH2#,ATH20,GGH2#..VFIRE..(24V,24X,35V,HBDV,HBDX)..CBU LT.BLUE ME.,8Q6 |
52127-58210-J0 |
US $11.11 |
||
| replacement | |||||
|
52127C
|
52127C
52127-58907 Cover, Front Bumper Hole[10.2011 - 01.2015] ANH2#,ATH20,GGH2#..VFIRE..(24V,24X,35V,HBDV,HBDX)..CBU LT.BLUE ME.,8Q6 |
52127-58907 |
US $8.96 |
||
|
52161C
|
52161C
52161-16010 Clip[10.2011 -] ANH2#,ATH20,GGH2#..VFIRE..CBU |
52161-16010 |
from US $1.68 |
||
| replacements | |||||
|
52161C
|
52161C
52161-0K040 Clip[10.2011 -] ANH2#,ATH20,GGH2#..VFIRE..CBU |
52161-0K040 |
from US $1.50 |
||
|
52161C
|
52161C
52161-02020 Clip[10.2011 -] ANH2#,ATH20,GGH2#..VFIRE..CBU |
52161-02020 |
US $5.27 |
||
|
52161T
|
52161T
52161-16010 Clip[10.2011 -] ANH2#,ATH20,GGH2#..CBU |
52161-16010 |
from US $1.68 |
||
| replacements | |||||
|
52161T
|
52161T
52161-0K040 Clip[10.2011 -] ANH2#,ATH20,GGH2#..CBU |
52161-0K040 |
from US $1.50 |
||
|
52161T
|
52161T
52161-02020 Clip[10.2011 -] ANH2#,ATH20,GGH2#..CBU |
52161-02020 |
US $5.27 |
||
|
52611
|
52611
52611-58030 Absorber, Front Bumper Energy[10.2011 -] ANH2#,ATH20,GGH2#..CBU |
52611-58030 |
from US $28.61 |
||
|
53112E
|
53112E
53112-58090 Grille, Radiator, Lower No.1[10.2011 -] ANH2#,ATH20,GGH2#..VFIRE..(24V,24X,35V,HBDV,HBDX)..CBU |
53112-58090 |
US $144.32 |
||
|
53114C
|
53114C
53114-58020 Grille, Radiator, Inner[10.2011 -] ANH2#,ATH20,GGH2#..VFIRE..(24V,24X,35V,HBDV,HBDX)..CBU |
53114-58020 |
US $124.64 |
||
|
91554C1025
|
91554C1025
91554-C1025 BOLT FLANGE |
91554-C1025 |
US $1.79 |
||
|
9010906231
|
9010906231
90109-06231 BOLT |
90109-06231 |
from US $0.82 |
||
|
9015950311
|
9015950311
90159-50311 SCREW |
90159-50311 |
from US $0.72 |
||
| replacement | |||||
|
9015950311
|
9015950311
90159-A0034 SCREW WWASHER |
90159-A0034 |
US $22.20 |
||
|
9015950353
|
9015950353
90159-50353 SCREW, W-WASHER |
90159-50353 |
from US $0.66 |
||
|
9015960602
|
9015960602
90159-60602 SCREW |
90159-60602 |
from US $0.62 |
||
|
9017906349
|
9017906349
90179-06349 NUT |
90179-06349 |
from US $1.31 |
||
