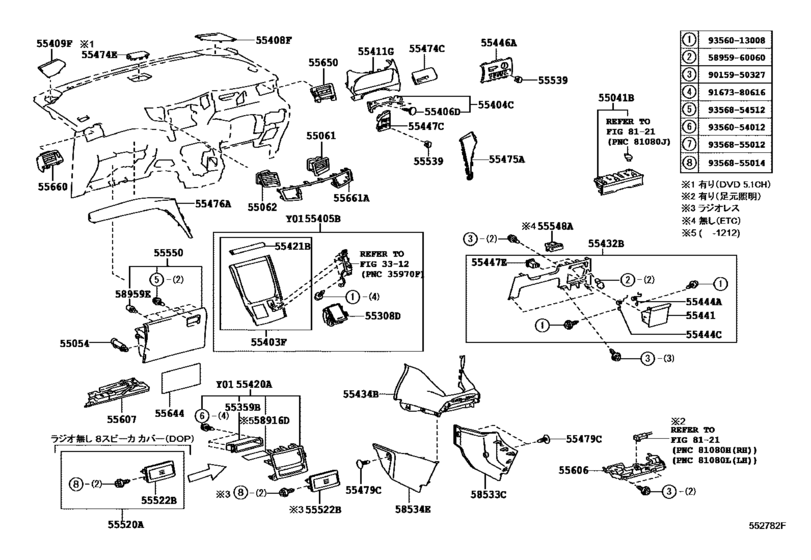

Instrument Panel & Glove Compartment ([12.2011 - ] (1112- )ATH20) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2011 - 2015
- Sales region
- Japan
- Frame
- ATH20
- grade
- HBDV
- ENGINE
- 2AZFXE
- Model
- Vellfire II
- From
- 12.2011
- To
- 01.2015
- Gear Shift Type
- CVFC
- Seating Capacity
- 07S
- Vehicle Model
- Vellfire
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55041B
|
55041B
55041-58030-A0 Door Sub-Assy, Instrument Panel Box, No.1[10.2011 - 01.2015] ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU SHELL,TRIM0# |
55041-58030-A0 |
US $96.10 |
||
|
55054
|
55054
55054-22030 Stopper Sub-Assy, Glove Compartment Door[10.2011 -] ANH2#,ATH20,GGH2#..CBU |
55054-22030 |
from US $6.67 |
||
|
55061
|
55061
55061-58010
Register Sub-Assy, Instrument Panel, No.1
[10.2011 - 09.2012] ANH2#,ATH20,GGH2#..CBU |
55061-58010 |
— | ||
| replacement | |||||
|
55061
|
55061
55061-58011 Register Sub-Assy, Instrument Panel, No.1[10.2011 - 09.2012] ANH2#,ATH20,GGH2#..CBU |
55061-58011 |
US $81.48 |
||
|
55061
|
55061
55061-58011 Register Sub-Assy, Instrument Panel, No.1[09.2012 -] ANH2#,ATH20,GGH2#..CBU |
55061-58011 |
US $81.48 |
||
|
55062
|
55062
55061-58020
Register Sub-Assy, Instrument Panel, N0.2
[10.2011 - 09.2012] ANH2#,ATH20,GGH2#..CBU |
55061-58020 |
— | ||
| replacement | |||||
|
55062
|
55062
55061-58021 Register Sub-Assy, Instrument Panel, N0.2[10.2011 - 09.2012] ANH2#,ATH20,GGH2#..CBU |
55061-58021 |
from US $71.37 |
||
|
55062
|
55062
55061-58021 Register Sub-Assy, Instrument Panel, N0.2[09.2012 -] ANH2#,ATH20,GGH2#..CBU |
55061-58021 |
from US $71.37 |
||
|
55308D
|
55308D
55308-58060 Box Sub-Assy, Instrument Panel, Center[12.2011 -] ATH20 |
55308-58060 |
US $184.91 |
||
|
55359B
|
55359B
55359-58030 Box, Instrument Panel, Center[10.2011 -] ANH2#,ATH20,GGH2#..CBU |
55359-58030 |
US $26.06 |
||
|
55403F
|
55403F
55403-58100 Panel Sub-Assy, Instrument Panel Finish[12.2011 -] ATH20 |
55403-58100 |
US $224.22 |
||
|
55404C
|
55404C
55404-58040 Panel Sub-Assy, Instrument Cluster Finish, No.2[10.2011 -] ANH2#,ATH20,GGH2#..CBU |
55404-58040 |
US $10.77 |
||
|
55405B
|
55405B
55405-58220 Panel Sub-Assy, Instrument Cluster Finish, Center[12.2011 -] ATH20 |
55405-58220 |
US $444.08 |
||
|
55406D
|
55406D
90467-08186-C0 Clip(For Front Bumper), No.1[10.2011 - 01.2015] ANH2#,ATH20,GGH2#..CBU BLACK |
90467-08186-C0 |
from US $0.90 |
||
|
55408F
|
55408F
55472-58020-E0 Panel Sub-Assy, Instrument Panel Speaker, No.1[10.2011 - 01.2015] ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU DK. BROWN,TRIM0# |
55472-58020-E0 |
US $18.20 |
||
|
55409F
|
55409F
55473-58010-E0 Panel Sub-Assy, Instrument Panel Speaker, No.2[10.2011 - 01.2015] ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU DK. BROWN,TRIM0# |
55473-58010-E0 |
US $18.20 |
||
|
55411G
|
55411G
55411-58020 Panel, Instrument Cluster Finish, No.1[10.2011 -] ANH2#,ATH20,GGH2#..CBU |
55411-58020 |
US $56.06 |
||
|
55420A
|
55420A
55420-58120 Panel Assy, Instrument Cluster Finish, Center[10.2011 - 12.2012] ANH2#,ATH20,GGH2#..CBU |
55420-58120 |
US $101.92 |
||
| replacements | |||||
|
55420A
|
55420A
55420-58121 Panel Assy, Instrument Cluster Finish, Center[10.2011 - 12.2012] ANH2#,ATH20,GGH2#..CBU |
55420-58121 |
US $149.24 |
||
|
55420A
|
55420A
58916-58030 Mat, Box Bottom[10.2011 - 12.2012] ANH2#,ATH20,GGH2#..CBU |
58916-58030 |
US $8.06 |
||
|
55420A
|
55420A
55420-58121 Panel Assy, Instrument Cluster Finish, Center[12.2012 -] ANH2#,ATH20,GGH2#..CBU |
55420-58121 |
US $149.24 |
||
|
55421B
|
55421B
55421-58010 Panel, Instrument Cluster Finish, Upper[10.2011 -] ANH2#,ATH20,GGH2#..CBU |
55421-58010 |
US $65.35 |
||
|
55432B
|
55432B
55480-58032-A0 Panel, Instrument Panel Finish, Lower[10.2011 - 01.2015] ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDV)..CBU SHELL,TRIM0# |
55480-58032-A0 |
US $99.01 |
||
|
55434B
|
55434B
55434-58030-A0 Panel, Instrument Panel Finish, Lower Center[12.2011 - 01.2015] ATH20..(HBDG,HBDV,HBDX)..CBU SHELL,TRIM0# |
55434-58030-A0 |
US $121.61 |
||
|
55441
|
55441
55441-58041-A0 Box, Instrument Panel[10.2011 - 01.2015] ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDV)..CBU SHELL,TRIM0# |
55441-58041-A0 |
US $36.40 |
||
|
55444A
|
55444A
55444-58060 Spring, Instrument Panel BoxINSTRUMENT PANEL BOX [10.2011 -] ANH2#,ATH20,GGH2#..CBU |
55444-58060 |
US $1.31 |
||
|
55444C
|
55444C
55445-58090 Spring, Instrument Panel BoxINSTRUMENT PANEL BOX [10.2011 -] ANH2#,ATH20,GGH2#..CBU |
55445-58090 |
US $1.31 |
||
|
55446A
|
55446A
55446-58051-A0 Base, Switch Hole, No.1[10.2011 - 01.2015] ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU SHELL,TRIM0# |
55446-58051-A0 |
US $26.94 |
||
|
55447C
|
55447C
55447-58021-A0 Base, Switch Hole, No.2[10.2011 - 10.2012] ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU SHELL,TRIM0# |
55447-58021-A0 |
US $19.66 |
||
| replacement | |||||
|
55447C
|
55447C
55447-58022-A0 Base, Switch Hole, No.2[10.2011 - 10.2012] ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU SHELL,TRIM0# |
55447-58022-A0 |
US $16.31 |
||
|
55447C
|
55447C
55447-58022-A0 Base, Switch Hole, No.2[11.2012 - 01.2015] ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU SHELL,TRIM0# |
55447-58022-A0 |
US $16.31 |
||
|
55447E
|
55447E
55447-58040 Base, Switch Hole, No.3[10.2011 -] ANH2#,ATH20,GGH2#..CBU |
55447-58040 |
US $2.04 |
||
|
55474C
|
55474C
55474-58080 Garnish, Instrument Cluster Finish Panel, No.1[12.2011 -] ATH20 |
55474-58080 |
US $64.36 |
||
|
55474E
|
55474E
55408-58010-E0 Panel Sub-Assy, Instrument Panel Speaker, No.3[10.2011 - 01.2015] ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU オーディオ−ＡＶＮ １１スピーカ ＋ ＤＶＤ ５．１ＣＨ,DK. BROWN,TRIM0#; ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU オーディオ−ＡＶＮ １８スピーカ ＋ ＤＶＤ ５．１ＣＨ,DK. BROWN,TRIM0# |
55408-58010-E0 |
US $54.86 |
||
|
55475A
|
55475A
55475-58080 Garnish, Instrument Cluster Finish Panel, No.2[12.2011 -] ATH20 |
55475-58080 |
US $64.36 |
||
|
55476A
|
55476A
55476-58080 Garnish, Instrument Cluster Finish Panel, No.3[12.2011 -] ATH20 |
55476-58080 |
US $144.14 |
||
|
55479C
|
55479C
90467-06020-A5 Clip(For Instrument Lower Cover)[10.2011 - 01.2015] ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU SHELL,TRIM0# |
90467-06020-A5 |
from US $1.40 |
||
|
55520A
|
55520A
55520-47020 Cover Assy, Stereo Opening[10.2011 -] ANH2#,ATH20,GGH2#..CBU オーディオ−ラジオ無し ８スピーカ カバー（ＤＯＰ） |
55520-47020 |
US $20.16 |
||
|
55522B
|
55522B
55522-52020 Cover, Stereo Opening[10.2011 - 01.2015] ANH2#,ATH20,GGH2#..CBU オーディオ−ラジオ無し ８スピーカ カバー（ＤＯＰ） |
55522-52020 |
from US $14.14 |
||
|
55539
|
55539
55539-58060-C0 Cover, Spare Switch Hole[10.2011 - 01.2015] ANH2#,ATH20,GGH2#..(240S,24Z,350S,35Z,HBDSR,HBDZR)..CBU BLACK,TRIM1#; ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU BLACK,TRIM0# |
55539-58060-C0 |
from US $4.54 |
||
|
55548A
|
55548A
55548-52030-A0 Cover, Instrument Panel Hole[10.2011 - 01.2015] ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU SHELL,TRIM0# |
55548-52030-A0 |
US $9.03 |
||
|
55550
|
55550
55550-58060-A0 Door Assy, Glove Compartment[10.2011 - 10.2012] ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDV)..CBU SHELL,TRIM0# |
55550-58060-A0 |
US $238.78 |
||
| replacement | |||||
|
55550
|
55550
55550-58061-A0 Door Assy, Glove Compartment[10.2011 - 10.2012] ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDV)..CBU SHELL,TRIM0# |
55550-58061-A0 |
US $198.02 |
||
|
55550
|
55550
55550-58061-A0 Door Assy, Glove Compartment[11.2012 - 01.2015] ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDV)..CBU SHELL,TRIM0# |
55550-58061-A0 |
US $198.02 |
||
|
55606
|
55606
55606-58010 Cover Sub-Assy, Instrument Panel Under, No.1[10.2011 -] ANH2#,ATH20,GGH2#..CBU |
55606-58010 |
US $36.84 |
||
|
55607
|
55607
55607-58010 Cover Sub-Assy, Instrument Panel Under, No.2[10.2011 -] ANH2#,ATH20,GGH2#..CBU |
55607-58010 |
US $46.74 |
||
|
55644
|
55644
55644-58020 Pad, Instrument Panel Under Silencer, No.2[12.2011 -] ATH20 |
55644-58020 |
US $14.12 |
||
|
55650
|
55650
55650-58070-E0 Register Assy, Instrument Panel, No.1[10.2011 - 09.2012] ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU DK. BROWN,TRIM0# |
55650-58070-E0 |
US $107.74 |
||
| replacement | |||||
|
55650
|
55650
55650-58071-E0 Register Assy, Instrument Panel, No.1[10.2011 - 09.2012] ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU DK. BROWN,TRIM0# |
55650-58071-E0 |
US $159.08 |
||
|
55650
|
55650
55650-58071-E0 Register Assy, Instrument Panel, No.1[09.2012 - 01.2015] ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU DK. BROWN,TRIM0# |
55650-58071-E0 |
US $159.08 |
||
|
55660
|
55660
55660-58070-E0 Register Assy, Instrument Panel, No.2[10.2011 - 09.2012] ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU DK. BROWN,TRIM0# |
55660-58070-E0 |
US $107.74 |
||
| replacement | |||||
|
55660
|
55660
55660-58071-E0 Register Assy, Instrument Panel, No.2[10.2011 - 09.2012] ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU DK. BROWN,TRIM0# |
55660-58071-E0 |
US $159.08 |
||
|
55660
|
55660
55660-58071-E0 Register Assy, Instrument Panel, No.2[09.2012 - 01.2015] ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU DK. BROWN,TRIM0# |
55660-58071-E0 |
US $159.08 |
||
|
55661A
|
55661A
55663-58010 Bezel, Instrument Panel Register[10.2011 -] ANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDSR,HBDV,HBDX,HBDZR)..CBU; ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU “Ｇ ＥＤＩＴＩＯＮ”＊（Ｃ） ｏｒ “Ｃパッケージ”＊（Ｃ），＊ＦＡＳ; ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU “Ｇ ＥＤＩＴＩＯＮ”＊（Ｃ） ｏｒ “Ｃパッケージ”＊（Ｃ），＊ＬＥＳ |
55663-58010 |
US $167.28 |
||
|
58533C
|
58533C
58533-58030-A0 Cover, Floor Carpet, Center Rh[12.2011 - 01.2015] ATH20..(HBDG,HBDV,HBDX)..CBU SHELL,TRIM0# |
58533-58030-A0 |
US $55.91 |
||
|
58534E
|
58534E
58534-58030-A0 Cover, Floor Carpet, Center Lh[12.2011 - 01.2015] ATH20..(HBDG,HBDV,HBDX)..CBU SHELL,TRIM0# |
58534-58030-A0 |
US $48.92 |
||
|
58916D
|
58916D
58916-58030 Mat, Box Bottom[10.2011 - 12.2012] ANH2#,ATH20,GGH2#..CBU |
58916-58030 |
US $8.06 |
||
|
58959E
|
58959E
58959-B1010 Grommet(For Instrument Panel)[10.2011 -] ANH2#,ATH20,GGH2#..CBU |
58959-B1010 |
US $3.14 |
||
|
5895960060
|
5895960060
58959-60060 Cushion, Instrument Panel |
58959-60060 |
from US $1.29 |
||
|
9015950327
|
9015950327
90159-50327 SCREW WWASHER |
90159-50327 |
from US $0.72 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.64 |
||
|
9356013008
|
9356013008
93560-13008 New Genuine Part |
93560-13008 |
US $3.05 |
||
|
9356054012
|
9356054012
93560-54012 Screw |
93560-54012 |
from US $0.66 |
||
|
9356854512
|
9356854512
93568-54512 SCREW |
93568-54512 |
from US $0.64 |
||
|
9356855012
|
9356855012
93568-55012 SCREW |
93568-55012 |
US $1.08 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.49 |
||
