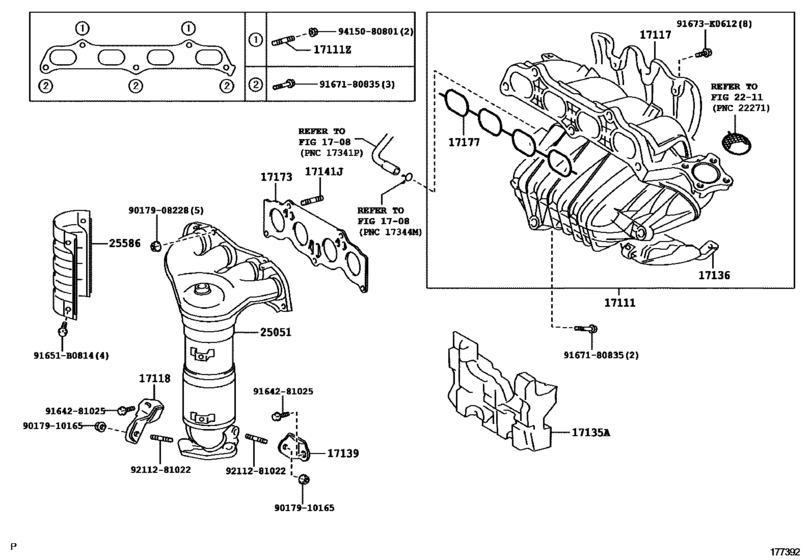

Manifold ([12.2011 - ] (1112- )2AZFXE) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2011 - 2015
- Sales region
- Japan
- Frame
- ATH20
- grade
- HBDV
- ENGINE
- 2AZFXE
- Model
- Vellfire II
- From
- 12.2011
- To
- 01.2015
- Gear Shift Type
- CVFC
- Seating Capacity
- 07S
- Vehicle Model
- Vellfire
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17111
|
17111
17120-28200 Manifold, Intake[12.2011 - 01.2012] 2AZFXE..ATH20 |
17120-28200 |
US $452.82 |
||
| replacement | |||||
|
17111
|
17111
17120-28201 Manifold, Intake[12.2011 - 01.2012] 2AZFXE..ATH20 |
17120-28201 |
US $377.10 |
||
|
17111
|
17111
17120-28201 Manifold, Intake[01.2012 -] 2AZFXE..ATH20 |
17120-28201 |
US $377.10 |
||
|
17111Z
|
17111Z
90126-08026 Bolt, Stud(For Intake Manifold To Cylinder Head)[10.2011 -] 2AZ#..ANH2#,ATH20..CBU ＊１９５; 2AZFE..ANH2#..CBU ２ＡＺ−ＦＥ ＣＨＩＮＡ,＊１９４ |
90126-08026 |
from US $2.61 |
||
|
17117
|
17117
17117-28060 Insulator, Intake Pipe[12.2011 -] 2AZFXE..ATH20 |
17117-28060 |
US $52.42 |
||
|
17118
|
17118
17118-28020 Stay, Manifold[12.2011 -] 2AZFXE..ATH20 |
17118-28020 |
US $16.07 |
||
|
17135A
|
17135A
17135-28011 Insulator, Intake Manifold, No.1[10.2011 -] 2AZ#..ANH2#,ATH20..CBU |
17135-28011 |
US $57.80 |
||
|
17136
|
17136
17136-28020 Insulator, Intake Manifold, No.2[12.2011 -] 2AZFXE..ATH20 |
17136-28020 |
US $92.60 |
||
|
17139
|
17139
17139-28050 Stay, Manifold, No.2[12.2011 -] 2AZFXE..ATH20 |
17139-28050 |
US $13.80 |
||
|
17141J
|
17141J
90126-08037 Bolt, Stud(For Oil Strainer)[10.2011 -] 2AZ#..ANH2#,ATH20..CBU ＊１９５; 2AZFE..ANH2#..CBU ２ＡＺ−ＦＥ ＣＨＩＮＡ,＊１９４ |
90126-08037 |
from US $3.69 |
||
|
17173
|
17173
17173-28010 Gasket, Exhaust Manifold To Head[12.2011 -] 2AZFXE..ATH20 |
17173-28010 |
from US $19.25 |
||
|
17177
|
17177
17177-28010
Gasket, Intake Manifold To Head, No.1
[10.2011 - 01.2012] 2AZFXE..ATH20 |
17177-28010 |
— | ||
| replacement | |||||
|
17177
|
17177
17177-28031 Gasket, Intake Manifold To Head, No.1[10.2011 - 01.2012] 2AZFXE..ATH20 |
17177-28031 |
from US $6.99 |
||
|
17177
|
17177
17177-28031 Gasket, Intake Manifold To Head, No.1[01.2012 -] 2AZ#..ANH2#,ATH20..CBU |
17177-28031 |
from US $6.99 |
||
|
25051
|
25051
25051-28320 Converter Sub-Assy, Exhaust Manifold[12.2011 -] 2AZFXE..ATH20 |
25051-28320 |
US $1,716.16 |
||
|
25586
|
25586
25586-28110 Insulator, Manifold Converter, No.1[12.2011 -] 2AZFXE..ATH20 |
25586-28110 |
US $45.49 |
||
|
91651B0814
|
91651B0814
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.86 |
||
|
91673K0612
|
91673K0612
91673-K0612 New Genuine Part |
91673-K0612 |
US $0.73 |
||
|
9017908228
|
9017908228
90179-08228 NUT |
90179-08228 |
from US $0.82 |
||
|
9017910165
|
9017910165
90179-10165 NUT |
90179-10165 |
from US $0.98 |
||
|
9164281025
|
9164281025
91642-81025 BOLT WWASHER |
91642-81025 |
from US $0.98 |
||
|
9167180835
|
9167180835
91671-80835 Bolt, Compressor, No.1 |
91671-80835 |
US $1.79 |
||
|
9211281022
|
9211281022
92112-81022 BOLT STUD |
92112-81022 |
US $1.43 |
||
|
9415080801
|
9415080801
94150-80801 Nut |
94150-80801 |
US $1.43 |
||
