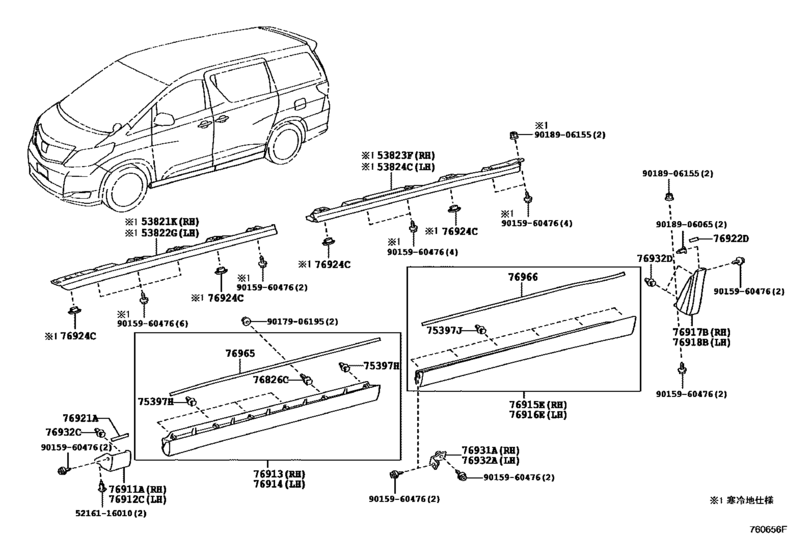

Spoiler & Side Mudguard ([04.2008 - ] (0804- )240G,240X,24V,24X,350G,350X,35V,35X,H BDG,HBDV,HBDX) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2011 - 2015
- Sales region
- Japan
- Frame
- ATH20
- grade
- HBDV
- ENGINE
- 2AZFXE
- Model
- Vellfire II
- From
- 12.2011
- To
- 01.2015
- Gear Shift Type
- CVFC
- Seating Capacity
- 07S
- Vehicle Model
- Vellfire
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53821K
|
53821K
53821-58020 Protector, Front Side Panel, No.1 Rh[10.2011 -] ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU 寒冷地仕様 |
53821-58020 |
US $43.10 |
||
|
53822G
|
53822G
53822-58020 Protector, Front Side Panel, No.1 Lh[10.2011 -] ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU 寒冷地仕様 |
53822-58020 |
US $43.10 |
||
|
53823F
|
53823F
53823-58020 Protector, Front Side Panel, No.2 Rh[10.2011 -] ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU 寒冷地仕様 |
53823-58020 |
US $43.10 |
||
|
53824C
|
53824C
53824-58020 Protector, Front Side Panel, No.2 Lh[10.2011 -] ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU 寒冷地仕様 |
53824-58020 |
US $55.47 |
||
|
75397H
|
75397H
75397-58040 Clip, Front Door Madguard[10.2011 - 01.2015] ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU イエロー |
75397-58040 |
from US $1.07 |
||
|
75397J
|
75397J
75397-58040 Clip, Front Door Madguard[10.2011 - 01.2015] ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU イエロー |
75397-58040 |
from US $1.07 |
||
|
76826C
|
76826C
76826-58020 Retainer, Back Door Garnish, No.1[10.2011 - 01.2015] ANH2#,ATH20,GGH2#..CBU |
76826-58020 |
US $11.47 |
||
|
76911A
|
76911A
76911-58021-A0 Mudguard, Fender Panel, Rh[10.2011 - 01.2015] ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU WHITE PEARL CS.,070 |
76911-58021-A0 |
from US $49.90 |
||
|
76911A
|
76911A
76911-58021-B0 Mudguard, Fender Panel, Rh[10.2011 - 01.2015] ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU SILVER ME.,1F7 |
76911-58021-B0 |
US $83.64 |
||
|
76911A
|
76911A
76911-58021-C0 Mudguard, Fender Panel, Rh[10.2011 - 01.2015] ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU BLACK,202 |
76911-58021-C0 |
US $83.64 |
||
|
76911A
|
76911A
76911-58021-D0 Mudguard, Fender Panel, Rh[10.2011 - 01.2015] ANH2#,ATH20,GGH2#..VFIRE..(24V,24X,35V,HBDV,HBDX)..CBU DEEP RED M.M.,3R9 |
76911-58021-D0 |
US $83.64 |
||
|
76911A
|
76911A
76911-58021-J2 Mudguard, Fender Panel, Rh[10.2011 - 01.2015] ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU LT.BLUE ME.,8Q6 |
76911-58021-J2 |
US $83.64 |
||
|
76912C
|
76912C
76912-58021-A0 Mudguard, Fender Panel, Lh[10.2011 - 01.2015] ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU WHITE PEARL CS.,070 |
76912-58021-A0 |
from US $49.88 |
||
|
76912C
|
76912C
76912-58021-B0 Mudguard, Fender Panel, Lh[10.2011 - 01.2015] ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU SILVER ME.,1F7 |
76912-58021-B0 |
US $83.64 |
||
|
76912C
|
76912C
76912-58021-C0 Mudguard, Fender Panel, Lh[10.2011 - 01.2015] ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU BLACK,202 |
76912-58021-C0 |
US $83.64 |
||
|
76912C
|
76912C
76912-58021-D0 Mudguard, Fender Panel, Lh[10.2011 - 01.2015] ANH2#,ATH20,GGH2#..VFIRE..(24V,24X,35V,HBDV,HBDX)..CBU DEEP RED M.M.,3R9 |
76912-58021-D0 |
US $83.64 |
||
|
76912C
|
76912C
76912-58021-J2 Mudguard, Fender Panel, Lh[10.2011 - 01.2015] ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU LT.BLUE ME.,8Q6 |
76912-58021-J2 |
US $83.64 |
||
|
76913
|
76913
76903-58020-A1 Mudguard, Front Door, Rh[10.2011 - 01.2015] ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU WHITE PEARL CS.,070 |
76903-58020-A1 |
US $284.80 |
||
|
76913
|
76913
76903-58020-B1 Mudguard, Front Door, Rh[10.2011 - 01.2015] ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU SILVER ME.,1F7 |
76903-58020-B1 |
US $284.80 |
||
|
76913
|
76913
76903-58020-C1 Mudguard, Front Door, Rh[10.2011 - 01.2015] ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU BLACK,202 |
76903-58020-C1 |
US $284.80 |
||
|
76913
|
76913
76903-58020-D1 Mudguard, Front Door, Rh[10.2011 - 01.2015] ANH2#,ATH20,GGH2#..VFIRE..(24V,24X,35V,HBDV,HBDX)..CBU DEEP RED M.M.,3R9 |
76903-58020-D1 |
US $284.80 |
||
|
76913
|
76913
76903-58020-J3 Mudguard, Front Door, Rh[10.2011 - 01.2015] ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU LT.BLUE ME.,8Q6 |
76903-58020-J3 |
US $284.80 |
||
|
76914
|
76914
76904-58020-A1 Mudguard, Front Door, Lh[10.2011 - 01.2015] ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU WHITE PEARL CS.,070 |
76904-58020-A1 |
US $284.80 |
||
|
76914
|
76914
76904-58020-B1 Mudguard, Front Door, Lh[10.2011 - 01.2015] ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU SILVER ME.,1F7 |
76904-58020-B1 |
US $284.80 |
||
|
76914
|
76914
76904-58020-C1 Mudguard, Front Door, Lh[10.2011 - 01.2015] ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU BLACK,202 |
76904-58020-C1 |
US $284.80 |
||
|
76914
|
76914
76904-58020-D1 Mudguard, Front Door, Lh[10.2011 - 01.2015] ANH2#,ATH20,GGH2#..VFIRE..(24V,24X,35V,HBDV,HBDX)..CBU DEEP RED M.M.,3R9 |
76904-58020-D1 |
US $284.80 |
||
|
76914
|
76914
76904-58020-J3 Mudguard, Front Door, Lh[10.2011 - 01.2015] ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU LT.BLUE ME.,8Q6 |
76904-58020-J3 |
US $284.80 |
||
|
76915E
|
76915E
76905-58020-A1 Mudguard, Slide Door, Rh[10.2011 - 01.2015] ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU WHITE PEARL CS.,070 |
76905-58020-A1 |
from US $208 |
||
|
76915E
|
76915E
76905-58020-B1 Mudguard, Slide Door, Rh[10.2011 - 01.2015] ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU SILVER ME.,1F7 |
76905-58020-B1 |
US $208 |
||
|
76915E
|
76915E
76905-58020-C1 Mudguard, Slide Door, Rh[10.2011 - 01.2015] ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU BLACK,202 |
76905-58020-C1 |
US $208 |
||
|
76915E
|
76915E
76905-58020-D1 Mudguard, Slide Door, Rh[10.2011 - 01.2015] ANH2#,ATH20,GGH2#..VFIRE..(24V,24X,35V,HBDV,HBDX)..CBU DEEP RED M.M.,3R9 |
76905-58020-D1 |
US $208 |
||
|
76915E
|
76915E
76905-58020-J3 Mudguard, Slide Door, Rh[10.2011 - 01.2015] ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU LT.BLUE ME.,8Q6 |
76905-58020-J3 |
US $208 |
||
|
76916E
|
76916E
76906-58020-A1 Mudguard, Slide Door, Lh[10.2011 - 01.2015] ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU WHITE PEARL CS.,070 |
76906-58020-A1 |
from US $208 |
||
|
76916E
|
76916E
76906-58020-B1 Mudguard, Slide Door, Lh[10.2011 - 01.2015] ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU SILVER ME.,1F7 |
76906-58020-B1 |
US $208 |
||
|
76916E
|
76916E
76906-58020-C1 Mudguard, Slide Door, Lh[10.2011 - 01.2015] ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU BLACK,202 |
76906-58020-C1 |
US $208 |
||
|
76916E
|
76916E
76906-58020-D1 Mudguard, Slide Door, Lh[10.2011 - 01.2015] ANH2#,ATH20,GGH2#..VFIRE..(24V,24X,35V,HBDV,HBDX)..CBU DEEP RED M.M.,3R9 |
76906-58020-D1 |
US $208 |
||
|
76916E
|
76916E
76906-58020-J3 Mudguard, Slide Door, Lh[10.2011 - 01.2015] ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU LT.BLUE ME.,8Q6 |
76906-58020-J3 |
US $208 |
||
|
76917B
|
76917B
76907-58050-A0 Mudguard, Quarter Panel, Rh[07.2013 - 01.2015] ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU WHITE PEARL CS.,070 |
76907-58050-A0 |
US $93.48 |
||
|
76917B
|
76917B
76907-58050-B0 Mudguard, Quarter Panel, Rh[07.2013 - 01.2015] ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU SILVER ME.,1F7 |
76907-58050-B0 |
US $93.48 |
||
|
76917B
|
76917B
76907-58050-C0 Mudguard, Quarter Panel, Rh[07.2013 - 01.2015] ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU BLACK,202 |
76907-58050-C0 |
US $93.48 |
||
|
76917B
|
76917B
76907-58050-D0 Mudguard, Quarter Panel, Rh[07.2013 - 01.2015] ANH2#,ATH20,GGH2#..VFIRE..(24V,24X,35V,HBDV,HBDX)..CBU DEEP RED M.M.,3R9 |
76907-58050-D0 |
US $53.58 |
||
|
76917B
|
76917B
76907-58050-J1 Mudguard, Quarter Panel, Rh[07.2013 - 01.2015] ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU LT.BLUE ME.,8Q6 |
76907-58050-J1 |
US $53.58 |
||
|
76917B
|
76917B
76917-58021-A0
Mudguard, Quarter Panel, Rh
[10.2011 - 06.2013] ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU WHITE PEARL CS.,070 |
76917-58021-A0 |
— | ||
| replacement | |||||
|
76917B
|
76917B
76907-58050-A0 Mudguard, Quarter Panel, Rh[10.2011 - 06.2013] ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU WHITE PEARL CS.,070 |
76907-58050-A0 |
US $93.48 |
||
|
76917B
|
76917B
76917-58021-B0 Mudguard, Quarter Panel, Rh[10.2011 - 06.2013] ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU SILVER ME.,1F7 |
76917-58021-B0 |
US $53.58 |
||
| replacement | |||||
|
76917B
|
76917B
76907-58050-B0 Mudguard, Quarter Panel, Rh[10.2011 - 06.2013] ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU SILVER ME.,1F7 |
76907-58050-B0 |
US $93.48 |
||
|
76917B
|
76917B
76917-58021-C0 Mudguard, Quarter Panel, Rh[10.2011 - 06.2013] ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU BLACK,202 |
76917-58021-C0 |
US $53.58 |
||
| replacement | |||||
|
76917B
|
76917B
76907-58050-C0 Mudguard, Quarter Panel, Rh[10.2011 - 06.2013] ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU BLACK,202 |
76907-58050-C0 |
US $93.48 |
||
|
76917B
|
76917B
76917-58021-D0 Mudguard, Quarter Panel, Rh[10.2011 - 06.2013] ANH2#,ATH20,GGH2#..VFIRE..(24V,24X,35V,HBDV,HBDX)..CBU DEEP RED M.M.,3R9 |
76917-58021-D0 |
US $53.58 |
||
| replacement | |||||
|
76917B
|
76917B
76907-58050-D0 Mudguard, Quarter Panel, Rh[10.2011 - 06.2013] ANH2#,ATH20,GGH2#..VFIRE..(24V,24X,35V,HBDV,HBDX)..CBU DEEP RED M.M.,3R9 |
76907-58050-D0 |
US $53.58 |
||
|
76917B
|
76917B
76917-58021-J2 Mudguard, Quarter Panel, Rh[10.2011 - 06.2013] ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU LT.BLUE ME.,8Q6 |
76917-58021-J2 |
US $53.58 |
||
| replacement | |||||
|
76917B
|
76917B
76907-58050-J1 Mudguard, Quarter Panel, Rh[10.2011 - 06.2013] ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU LT.BLUE ME.,8Q6 |
76907-58050-J1 |
US $53.58 |
||
|
76918B
|
76918B
76908-58050-A0 Mudguard, Quarter Panel, Lh[07.2013 - 01.2015] ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU WHITE PEARL CS.,070 |
76908-58050-A0 |
US $93.48 |
||
|
76918B
|
76918B
76908-58050-B0 Mudguard, Quarter Panel, Lh[07.2013 - 01.2015] ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU SILVER ME.,1F7 |
76908-58050-B0 |
US $93.48 |
||
|
76918B
|
76918B
76908-58050-C0 Mudguard, Quarter Panel, Lh[07.2013 - 01.2015] ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU BLACK,202 |
76908-58050-C0 |
US $93.48 |
||
|
76918B
|
76918B
76908-58050-D0 Mudguard, Quarter Panel, Lh[07.2013 - 01.2015] ANH2#,ATH20,GGH2#..VFIRE..(24V,24X,35V,HBDV,HBDX)..CBU DEEP RED M.M.,3R9 |
76908-58050-D0 |
US $93.48 |
||
|
76918B
|
76918B
76908-58050-J1 Mudguard, Quarter Panel, Lh[07.2013 - 01.2015] ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU LT.BLUE ME.,8Q6 |
76908-58050-J1 |
US $93.48 |
||
|
76918B
|
76918B
76918-58021-A0 Mudguard, Quarter Panel, Lh[10.2011 - 06.2013] ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU WHITE PEARL CS.,070 |
76918-58021-A0 |
US $53.58 |
||
| replacement | |||||
|
76918B
|
76918B
76908-58050-A0 Mudguard, Quarter Panel, Lh[10.2011 - 06.2013] ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU WHITE PEARL CS.,070 |
76908-58050-A0 |
US $93.48 |
||
|
76918B
|
76918B
76918-58021-B0 Mudguard, Quarter Panel, Lh[10.2011 - 06.2013] ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU SILVER ME.,1F7 |
76918-58021-B0 |
US $53.58 |
||
| replacement | |||||
|
76918B
|
76918B
76908-58050-B0 Mudguard, Quarter Panel, Lh[10.2011 - 06.2013] ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU SILVER ME.,1F7 |
76908-58050-B0 |
US $93.48 |
||
|
76918B
|
76918B
76918-58021-C0 Mudguard, Quarter Panel, Lh[10.2011 - 06.2013] ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU BLACK,202 |
76918-58021-C0 |
US $53.58 |
||
| replacement | |||||
|
76918B
|
76918B
76908-58050-C0 Mudguard, Quarter Panel, Lh[10.2011 - 06.2013] ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU BLACK,202 |
76908-58050-C0 |
US $93.48 |
||
|
76918B
|
76918B
76918-58021-D0 Mudguard, Quarter Panel, Lh[10.2011 - 06.2013] ANH2#,ATH20,GGH2#..VFIRE..(24V,24X,35V,HBDV,HBDX)..CBU DEEP RED M.M.,3R9 |
76918-58021-D0 |
US $53.58 |
||
| replacement | |||||
|
76918B
|
76918B
76908-58050-D0 Mudguard, Quarter Panel, Lh[10.2011 - 06.2013] ANH2#,ATH20,GGH2#..VFIRE..(24V,24X,35V,HBDV,HBDX)..CBU DEEP RED M.M.,3R9 |
76908-58050-D0 |
US $93.48 |
||
|
76918B
|
76918B
76918-58021-J2 Mudguard, Quarter Panel, Lh[10.2011 - 06.2013] ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU LT.BLUE ME.,8Q6 |
76918-58021-J2 |
US $53.58 |
||
| replacement | |||||
|
76918B
|
76918B
76908-58050-J1 Mudguard, Quarter Panel, Lh[10.2011 - 06.2013] ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU LT.BLUE ME.,8Q6 |
76908-58050-J1 |
US $93.48 |
||
|
76921A
|
76921A
76921-58020 Protector, Side Mudguard, No.1[10.2011 - 01.2015] ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU |
76921-58020 |
US $12.19 |
||
|
76922D
|
76922D
76922-58030 Protector, Side Mudguard, No.2[10.2011 - 01.2015] ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU |
76922-58030 |
US $12.19 |
||
|
76924C
|
76924C
76924-52021 Retainer, Side Mudguard[10.2011 -] ANH2#,ATH20,GGH2#..CBU 寒冷地仕様 |
76924-52021 |
from US $1.19 |
||
|
76931A
|
76931A
76931-28040 Bracket, Side Mudguard, No.1 Rh[10.2011 -] ANH2#,ATH20,GGH2#..CBU |
76931-28040 |
US $3.94 |
||
|
76932A
|
76932A
76932-28070 Bracket, Side Mudguard, No.1 Lh[10.2011 -] ANH2#,ATH20,GGH2#..CBU |
76932-28070 |
US $3.94 |
||
|
76932C
|
76932C
76932-28030 Retainer, Outside Moulding[10.2011 - 01.2015] ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU ブルー |
76932-28030 |
from US $1.54 |
||
|
76932D
|
76932D
76932-28030 Retainer, Outside Moulding[10.2011 - 01.2015] ANH2#,ATH20,GGH2#..CBU ブルー |
76932-28030 |
from US $1.54 |
||
|
76965
|
76965
76965-58020 Protector, Front Door Lower Mudguard[10.2011 - 01.2015] ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU |
76965-58020 |
US $9.90 |
||
|
76966
|
76966
76966-58020 Protector, Slide Door Lower Mudguard[10.2011 - 01.2015] ANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU |
76966-58020 |
US $17.98 |
||
|
5216116010
|
5216116010
52161-16010 Clip |
52161-16010 |
from US $1.68 |
||
| replacements | |||||
|
5216116010
|
5216116010
52161-0K040 Clip |
52161-0K040 |
from US $1.50 |
||
|
5216116010
|
5216116010
52161-02020 Clip |
52161-02020 |
US $5.27 |
||
|
9015960476
|
9015960476
90159-60476 SCREW WWASHER |
90159-60476 |
from US $0.68 |
||
|
9017906195
|
9017906195
90179-06195 New Genuine Part |
90179-06195 |
US $2.15 |
||
|
9018906065
|
9018906065
90189-06065 CLIP |
90189-06065 |
from US $0.76 |
||
|
9018906155
|
9018906155
90189-06155 GROMMET SCREW |
90189-06155 |
US $1.43 |
||
