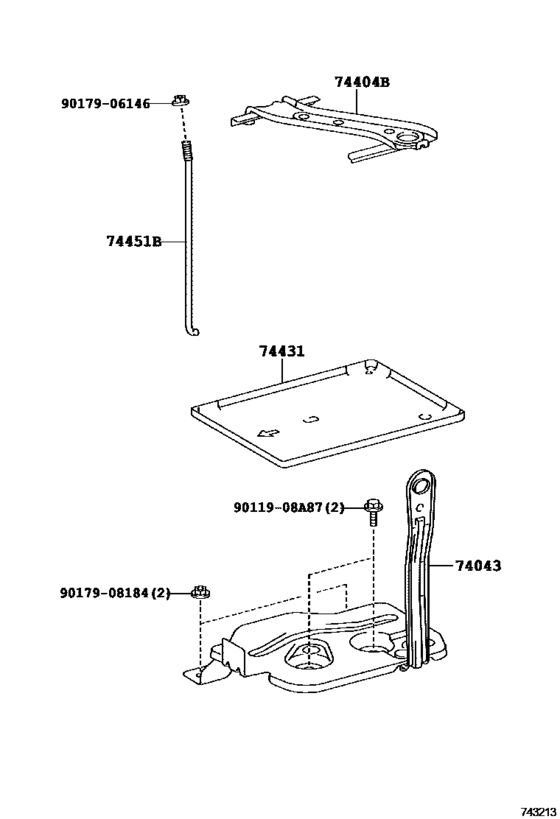

Battery Carrier ([12.2011 - ] (1112- )ATH20) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2011 - 2015
- Sales region
- Japan
- Frame
- ATH20
- grade
- HBDG
- ENGINE
- 2AZFXE
- Model
- Alphard II
- From
- 12.2011
- To
- 01.2015
- Gear Shift Type
- CVFC
- Seating Capacity
- 07S
- Vehicle Model
- Alphard
- Building Condition
- CBU
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
74043
|
74043
74043-58010 Carrier Sub-Assy, Battery, No.2[12.2011 -] ATH20 |
74043-58010 |
US $44.70 |
||
|
74404B
|
74404B
74404-58060 Clamp Sub-Assy, Battery[12.2011 -] ATH20 |
74404-58060 |
US $21.99 |
||
|
74431
|
74431
74431-28030 Tray, Battery[12.2011 -] ATH20 |
74431-28030 |
US $19.07 |
||
|
74451B
|
74451B
74451-58020 Bolt, Battery Clamp[12.2011 -] ATH20 |
74451-58020 |
US $2.18 |
||
|
9011908A87
|
9011908A87
90119-08A87 BOLT W-WASHER |
90119-08A87 |
from US $0.92 |
||
|
9017906146
|
9017906146
90179-06146 Nut |
90179-06146 |
US $1.79 |
||
|
9017908184
|
9017908184
90179-08184 NUT |
90179-08184 |
US $1.61 |
