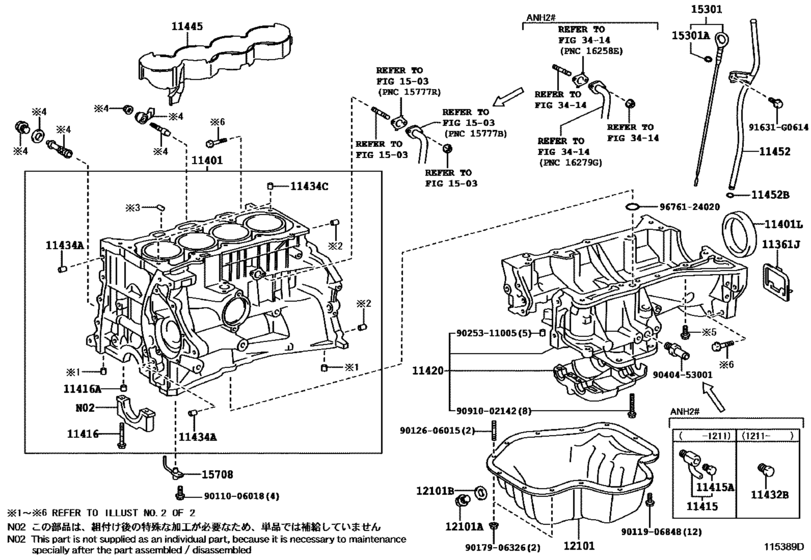

Cylinder Block ([04.2008 - ] *195 (0804- )2AZ#) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2011 - 2015
- Sales region
- Japan
- Frame
- ATH20
- grade
- HBDG
- ENGINE
- 2AZFXE
- Model
- Alphard II
- From
- 12.2011
- To
- 01.2015
- Gear Shift Type
- CVFC
- Seating Capacity
- 07S
- Vehicle Model
- Alphard
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11361J
|
11361J
11361-28010 Cover, Flywheel Housing Under[10.2011 -] 2AZ#..ANH2#,ATH20..CBU |
11361-28010 |
from US $5.28 |
||
|
11401
|
11401
11410-29345
Block Sub-Assy, Cylinder
[10.2011 - 12.2012] 2AZ#..ANH2#,ATH20..CBU ＊１９５; 2AZFE..ANH2#..CBU ２ＡＺ−ＦＥ ＣＨＩＮＡ,＊１９５ |
11410-29345 |
— | ||
| replacement | |||||
|
11401
|
11401
11410-29346 Block Sub-Assy, Cylinder[10.2011 - 12.2012] 2AZ#..ANH2#,ATH20..CBU ＊１９５; 2AZFE..ANH2#..CBU ２ＡＺ−ＦＥ ＣＨＩＮＡ,＊１９５ |
11410-29346 |
US $2,401.96 |
||
|
11401
|
11401
11410-29346 Block Sub-Assy, Cylinder[12.2012 -] 2AZ#..ANH2#,ATH20..CBU ＊１９５; 2AZFE..ANH2#..CBU ２ＡＺ−ＦＥ ＣＨＩＮＡ,＊１９５ |
11410-29346 |
US $2,401.96 |
||
|
11401L
|
11401L
90311-89003
Seal, Engine Rear Oil
[10.2011 - 04.2012] 2AZ#..ANH2#,ATH20..CBU ＊１９５; 2AZFE..ANH2#..CBU ２ＡＺ−ＦＥ ＣＨＩＮＡ,＊１９５ |
90311-89003 |
— | ||
| replacement | |||||
|
11401L
|
11401L
90311-89010 Seal, Engine Rear Oil[10.2011 - 04.2012] 2AZ#..ANH2#,ATH20..CBU ＊１９５; 2AZFE..ANH2#..CBU ２ＡＺ−ＦＥ ＣＨＩＮＡ,＊１９５ |
90311-89010 |
from US $21.13 |
||
|
11401L
|
11401L
90311-89007
Seal, Engine Rear Oil
[04.2012 - 05.2013] 2AZ#..ANH2#,ATH20..CBU ＊１９５; 2AZFE..ANH2#..CBU ２ＡＺ−ＦＥ ＣＨＩＮＡ,＊１９５ |
90311-89007 |
— | ||
| replacement | |||||
|
11401L
|
11401L
90311-89010 Seal, Engine Rear Oil[04.2012 - 05.2013] 2AZ#..ANH2#,ATH20..CBU ＊１９５; 2AZFE..ANH2#..CBU ２ＡＺ−ＦＥ ＣＨＩＮＡ,＊１９５ |
90311-89010 |
from US $21.13 |
||
|
11401L
|
11401L
90311-89010 Seal, Engine Rear Oil[05.2013 -] 2AZ#..ANH2#,ATH20..CBU; 2AZFE..ANH2#..CBU ２ＡＺ−ＦＥ ＣＨＩＮＡ |
90311-89010 |
from US $21.13 |
||
|
11416
|
11416
90910-02124
Bolt(For Crankshaft Bearing Cap Set)
[10.2011 -] 2AZ#..ANH2#,ATH20..CBU ＊１９５; 2AZFE..ANH2#..CBU ２ＡＺ−ＦＥ ＣＨＩＮＡ,＊１９４ |
90910-02124 |
— | ||
| replacement | |||||
|
11416
|
11416
90910-02206 BOLT[10.2011 -] 2AZ#..ANH2#,ATH20..CBU ＊１９５; 2AZFE..ANH2#..CBU ２ＡＺ−ＦＥ ＣＨＩＮＡ,＊１９４ |
90910-02206 |
US $3.52 |
||
|
11416A
|
11416A
90253-13017 Pin, Ring W/head[10.2011 -] 2AZ#..ANH2#,ATH20..CBU ＊１９５; 2AZFE..ANH2#..CBU ２ＡＺ−ＦＥ ＣＨＩＮＡ,＊１９５ |
90253-13017 |
from US $1.40 |
||
|
11420
|
11420
11420-0H051
Crankcase Assy, Stiffening
[10.2011 -] 2AZ#..ANH2#,ATH20..CBU （Ｌ），＊１９５; 2AZFE..ANH2#..CBU ２ＡＺ−ＦＥ ＣＨＩＮＡ,＊１９４ |
11420-0H051 |
— | ||
|
11420
|
11420
11420-28021 Crankcase Assy, Stiffening[10.2011 -] 2AZ#..ANH2#,ATH20..CBU （Ｊ），＊１９５ |
11420-28021 |
from US $422.94 |
||
|
11434A
|
11434A
90250-08120 Pin, Straight, No.1[10.2011 -] 2AZ#..ANH2#,ATH20..CBU 長さ＝１８，外径＝８,＊１９５; 2AZFE..ANH2#..CBU 長さ＝１８，外径＝８,２ＡＺ−ＦＥ ＣＨＩＮＡ,＊１９５ |
90250-08120 |
from US $1.07 |
||
|
11434C
|
11434C
90253-14003 Pin, Ring(For Crankshaft Bearing Cap Set)[10.2011 -] 2AZ#..ANH2#,ATH20..CBU 長さ＝１２，外径＝１４,＊１９５; 2AZFE..ANH2#..CBU 長さ＝１２，外径＝１４,２ＡＺ−ＦＥ ＣＨＩＮＡ,＊１９４ |
90253-14003 |
from US $1.37 |
||
|
11445
|
11445
11445-28020 Spacer, Cylinder Block Water Jacket[10.2011 -] 2AZ#..ANH2#,ATH20..CBU ＊１９５ |
11445-28020 |
US $22.86 |
||
|
11452
|
11452
11452-28040 Guide, Oil Level Gage[10.2011 -] 2AZ#..ANH2#,ATH20..CBU ＊１９５ |
11452-28040 |
US $18.93 |
||
|
11452B
|
11452B
96721-19010 Ring, O(For Oil Level Gage Guide)[10.2011 -] 2AZ#..ANH2#,ATH20..CBU ＊１９５; 2AZFE..ANH2#..CBU ２ＡＺ−ＦＥ ＣＨＩＮＡ,＊１９５ |
96721-19010 |
from US $1.64 |
||
|
12101
|
12101
12101-28060 Pan Sub-Assy, Oil[10.2011 -] 2AZ#..ANH2#,ATH20..CBU ＊１９５ |
12101-28060 |
US $201.60 |
||
|
12101A
|
12101A
90341-12012 Plug(For Oil Pan Drain)[10.2011 -] 2AZ#..ANH2#,ATH20..CBU ＊１９５; 2GRFE..GGH2#..CBU; 2AZFE..ANH2#..CBU ２ＡＺ−ＦＥ ＣＨＩＮＡ,＊１９４ |
90341-12012 |
from US $2.56 |
||
| replacement | |||||
|
12101A
|
12101A
90341-T0004 Plug(For Oil Pan Drain)[10.2011 -] 2AZ#..ANH2#,ATH20..CBU ＊１９５; 2GRFE..GGH2#..CBU; 2AZFE..ANH2#..CBU ２ＡＺ−ＦＥ ＣＨＩＮＡ,＊１９４ |
90341-T0004 |
US $4.49 |
||
|
12101B
|
12101B
90430-12031 Gasket (For Oil Pan Drain Plug)[10.2011 -] 2AZ#..ANH2#,ATH20..CBU ＊１９５; 2GRFE..GGH2#..CBU |
90430-12031 |
from US $0.88 |
||
|
15301
|
15301
15301-28030 Gage Sub-Assy, Oil Level[10.2011 - 01.2013] 2AZ#..ANH2#,ATH20..CBU ＊１９５ |
15301-28030 |
US $13.40 |
||
| replacement | |||||
|
15301
|
15301
15301-28031 Gage Sub-Assy, Oil Level[10.2011 - 01.2013] 2AZ#..ANH2#,ATH20..CBU ＊１９５ |
15301-28031 |
from US $10.78 |
||
|
15301
|
15301
15301-28031 Gage Sub-Assy, Oil Level[01.2013 -] 2AZ#..ANH2#,ATH20..CBU ＊１９５ |
15301-28031 |
from US $10.78 |
||
|
15301A
|
15301A
96741-19005 O-Ring (For Oil Level Gage)[10.2011 - 01.2013] 2AZ#..ANH2#,ATH20..CBU ＊１９５ |
96741-19005 |
from US $2.24 |
||
|
15708
|
15708
15708-28011 Nozzle Sub-Assy, Oil, No.1[10.2011 -] 2AZ#..ANH2#,ATH20..CBU ＊１９５; 2AZFE..ANH2#..CBU ２ＡＺ−ＦＥ ＣＨＩＮＡ,＊１９４ |
15708-28011 |
US $13.21 |
||
|
91631G0614
|
91631G0614
91631-G0614 BOT WWASHER |
91631-G0614 |
US $0.96 |
||
|
9011006018
|
9011006018
90110-06018 Bolt(For Rear Steering Worm Control Cam) |
90110-06018 |
from US $0.76 |
||
|
9011906848
|
9011906848
90119-06848 BOLT WWASHER |
90119-06848 |
US $0.96 |
||
|
9012606015
|
9012606015
90126-06015 Bolt, Stud(For Oil Pan) |
90126-06015 |
from US $1.76 |
||
|
9017906326
|
9017906326
90179-06326 NUT W-WASHER |
90179-06326 |
from US $0.70 |
||
| replacement | |||||
|
9017906326
|
9017906326
90182-A0010 New Genuine Part |
90182-A0010 |
US $2.13 |
||
|
9025311005
|
9025311005
90253-11005 Pin, Ring(For Camshaft Bearing Cap Setting) |
90253-11005 |
US $0.96 |
||
|
9040453001
|
9040453001
90404-53001 Union(For Cylinder Block) |
90404-53001 |
US $5.76 |
||
|
9091002142
|
9091002142
90910-02142 New Genuine Part |
90910-02142 |
US $2.88 |
||
|
9676124020
|
9676124020
96761-24020 RING O |
96761-24020 |
from US $2.34 |
||
