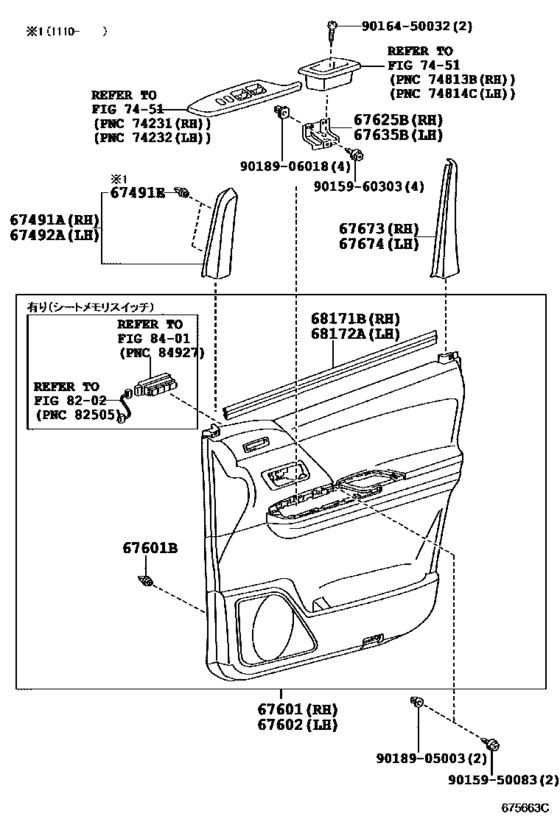

Front Door Panel & Glass ([04.2008 - ] ﾄﾞｱﾄﾘﾑ (0804- )) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2011 - 2015
- Sales region
- Japan
- Frame
- ATH20
- grade
- HBDG
- ENGINE
- 2AZFXE
- Model
- Alphard II
- From
- 12.2011
- To
- 01.2015
- Gear Shift Type
- CVFC
- Seating Capacity
- 07S
- Vehicle Model
- Alphard
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67491A
|
67491A
67491-58021 Garnish, Front Door Lower Frame Bracket, Rh[10.2011 - 06.2013] ANH2#,ATH20,GGH2#..CBU |
67491-58021 |
US $20.24 |
||
| replacement | |||||
|
67491A
|
67491A
67491-58022 Garnish, Front Door Lower Frame Bracket, Rh[10.2011 - 06.2013] ANH2#,ATH20,GGH2#..CBU |
67491-58022 |
US $36.46 |
||
|
67491A
|
67491A
67491-58022 Garnish, Front Door Lower Frame Bracket, Rh[07.2013 -] ANH2#,ATH20,GGH2#..CBU |
67491-58022 |
US $36.46 |
||
|
67491E
|
67491E
67771-12060 Retainer, Door Trim[10.2011 -] ANH2#,ATH20,GGH2#..CBU |
67771-12060 |
US $1.79 |
||
|
67492A
|
67492A
67492-58021 Garnish, Front Door Lower Frame Bracket, Lh[10.2011 - 06.2013] ANH2#,ATH20,GGH2#..CBU |
67492-58021 |
US $20.24 |
||
| replacement | |||||
|
67492A
|
67492A
67492-58022 Garnish, Front Door Lower Frame Bracket, Lh[10.2011 - 06.2013] ANH2#,ATH20,GGH2#..CBU |
67492-58022 |
US $36.46 |
||
|
67492A
|
67492A
67492-58022 Garnish, Front Door Lower Frame Bracket, Lh[07.2013 -] ANH2#,ATH20,GGH2#..CBU |
67492-58022 |
US $36.46 |
||
|
67601
|
67601
67610-58400-E0 Board Sub-Assy, Front Door Trim, Rh[10.2011 - 01.2015] ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “Ｌ ＥＤＩＴＩＯＮ”＊（Ｌ） ｏｒ “Ｌパッケージ”＊（Ｌ）,SHELL,TRIM0# |
67610-58400-E0 |
US $714.90 |
||
|
67601
|
67601
67610-58470-E0 Board Sub-Assy, Front Door Trim, Rh[12.2011 - 01.2015] ATH20..HBDG,HBDV SHELL,TRIM0# |
67610-58470-E0 |
US $661.02 |
||
|
67601B
|
67601B
90467-09206 Clip, Front Air Shutter Seal[10.2011 -] ANH2#,ATH20,GGH2#..CBU |
90467-09206 |
from US $0.47 |
||
|
67602
|
67602
67620-58360-E1 Board Sub-Assy, Front Door Trim, Lh[10.2011 - 01.2015] ATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU “Ｌ ＥＤＩＴＩＯＮ”＊（Ｌ） ｏｒ “Ｌパッケージ”＊（Ｌ）,SHELL,TRIM0# |
67620-58360-E1 |
US $647.92 |
||
|
67602
|
67602
67620-58430-E0 Board Sub-Assy, Front Door Trim, Lh[12.2011 - 01.2015] ATH20..HBDG,HBDV SHELL,TRIM0# |
67620-58430-E0 |
US $595.50 |
||
|
67625B
|
67625B
67625-58020 Bracket, Door Trim, No.1 Rh[10.2011 -] ANH2#,ATH20,GGH2#..CBU |
67625-58020 |
US $12.38 |
||
|
67635B
|
67635B
67635-58010 Bracket, Door Trim, No.1 Lh[10.2011 -] ANH2#,ATH20,GGH2#..CBU |
67635-58010 |
US $12.08 |
||
|
67673
|
67673
67673-58010 Garnish, Door Frame, Lower Rh[10.2011 -] ANH2#,ATH20,GGH2#..CBU |
67673-58010 |
US $28.38 |
||
|
67674
|
67674
67674-58010 Garnish, Door Frame, Lower Lh[10.2011 -] ANH2#,ATH20,GGH2#..CBU |
67674-58010 |
US $39.82 |
||
|
68171B
|
68171B
68171-58020 Weatherstrip, Front Door Glass, Inner Rh[10.2011 - 01.2015] ANH2#,ATH20,GGH2#..CBU |
68171-58020 |
US $36.69 |
||
|
68172A
|
68172A
68172-58020 Weatherstrip, Front Door Glass, Inner Lh[10.2011 - 01.2015] ANH2#,ATH20,GGH2#..CBU |
68172-58020 |
US $36.69 |
||
|
9015950083
|
9015950083
90159-50083 SCREW |
90159-50083 |
from US $0.72 |
||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
US $1.25 |
||
|
9016450032
|
9016450032
90164-50032 Screw |
90164-50032 |
US $1.61 |
||
|
9018905003
|
9018905003
90189-05003 CLIP |
90189-05003 |
from US $1.13 |
||
|
9018906018
|
9018906018
90189-06018 GROMMET |
90189-06018 |
from US $0.99 |
||
