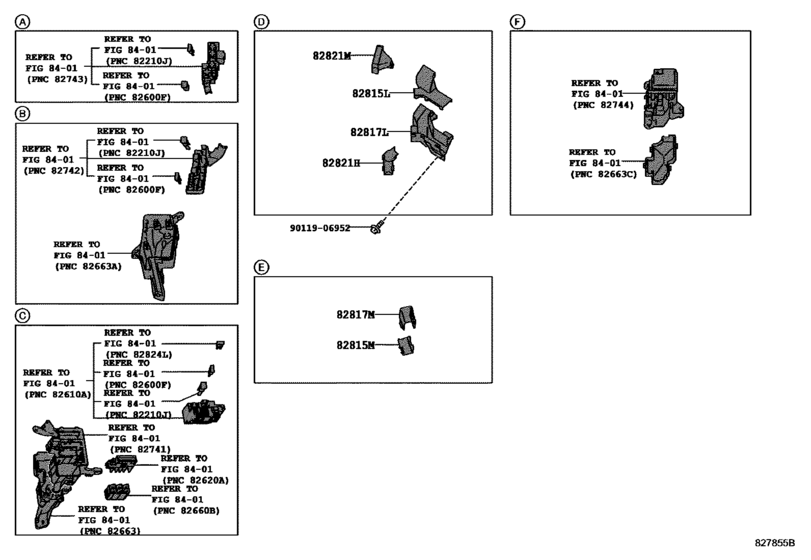

Wiring & Clamp ([12.2011 - ] ｴﾝｼﾞﾝﾙｰﾑ 2/2 (1112- )ATH20) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2011 - 2015
- Sales region
- Japan
- Frame
- ATH20
- grade
- HBDG
- ENGINE
- 2AZFXE
- Model
- Alphard II
- From
- 12.2011
- To
- 01.2015
- Gear Shift Type
- CVFC
- Seating Capacity
- 07S
- Vehicle Model
- Alphard
- Building Condition
- CBU
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82815L
|
82815L
82815-58340 Cover, Wiring Harness Protector, No.9[12.2011 - 01.2015] ATH20..CBU |
82815-58340 |
US $9.61 |
||
|
82815M
|
82815M
82815-58350 Cover, Wiring Harness Protector, No.10[12.2011 - 01.2015] ATH20..CBU |
82815-58350 |
US $3.06 |
||
|
82817L
|
82817L
82817-58510 Protector, Wiring Harness, No.11[12.2011 - 01.2015] ATH20..CBU |
82817-58510 |
US $20.82 |
||
|
82817M
|
82817M
82817-58520 Protector, Wiring Harness, No.12[12.2011 - 01.2015] ATH20..CBU |
82817-58520 |
US $6.84 |
||
|
82821H
|
82821H
82821-58040 Cover, Connector[12.2011 - 01.2015] ATH20..CBU |
82821-58040 |
US $3.64 |
||
|
82821M
|
82821M
82821-75070 Cover, ConnectorCONNECTOR [12.2011 - 01.2015] ATH20..CBU |
82821-75070 |
US $6.12 |
||
|
9011906952
|
9011906952
90119-06952 New Genuine Part |
90119-06952 |
US $1.08 |
