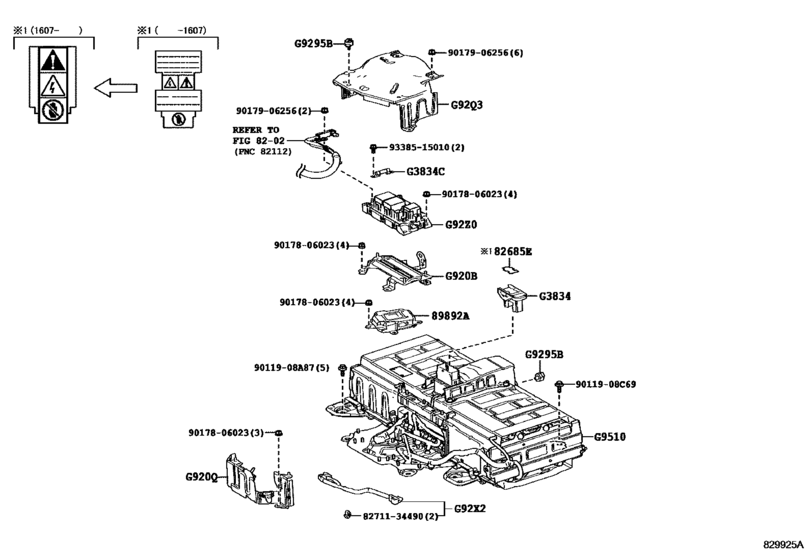

Battery & Battery Cable ([01.2015 - ] HVﾊﾞｯﾃﾘ(2/2) (1501- )AYH30) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2015 - 2018
- Sales region
- Japan
- Frame
- AYH30
- grade
- EL
- ENGINE
- 2ARFXE
- TRANSMISSION
- CVT
- Model
- Alphard III
- From
- 01.2015
- Seating Capacity
- 07S
- Vehicle Model
- ALPHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82685E
|
82685E
82685-50050 Plate, Service Plug CautionSERVICE PLUG CAUTION [01.2015 - 07.2016] AYH30 |
82685-50050 |
US $2.04 |
||
|
82685E
|
82685E
82685-76020 Plate, Service Plug Caution[07.2016 -] AYH30 |
82685-76020 |
US $2.04 |
||
|
89892A
|
89892A
89892-48050 Sensor, Battery Voltage[01.2015 -] AYH30 |
89892-48050 |
US $691.60 |
||
|
9011908A87
|
9011908A87
90119-08A87 BOLT W-WASHER |
90119-08A87 |
from US $0.96 |
||
|
9011908C69
|
9011908C69
90119-08C69 New Genuine Part |
90119-08C69 |
US $1.31 |
||
|
8271134490
|
8271134490
82711-34490 Wire, Fuse To Fuse(for Combustion Heater) |
82711-34490 |
US $1.76 |
||
|
9017806023
|
9017806023
90178-06023 New Genuine Part |
90178-06023 |
US $0.96 |
||
|
9017906256
|
9017906256
90179-06256 NUT |
90179-06256 |
from US $0.88 |
||
|
9338515010
|
9338515010
93385-15010 Screw(For Steering Tilt Lever) |
93385-15010 |
US $1.12 |
||
|
G92Q3
|
G92Q3
G92Q3-58010 Panel, Hv Battery Shield, No.3[01.2015 -] AYH30 |
G92Q3-58010 |
US $23 |
||
|
G92X2
|
G92X2
G92X2-58010 Wire, Hv Battery Pack, No.2[01.2015 -] AYH30 |
G92X2-58010 |
US $20.53 |
||
|
G92Z0
|
G92Z0
G92Z0-58010 Block Assy, Hv Battery Junction[01.2015 -] AYH30 |
G92Z0-58010 |
US $408.80 |
||
|
G920B
|
G920B
G920B-58010 Bracket Sub-Assy, Hv Battery Carrier, No.1[01.2015 -] AYH30 |
G920B-58010 |
US $16.45 |
||
|
G920Q
|
G920Q
G920Q-58010 Shield Sub-Assy, Hybrid Battery, No.1[01.2015 -] AYH30 |
G920Q-58010 |
US $16.45 |
||
|
G3834
|
G3834
G3834-48010 Grip, Service PlugSERVICE PLUG [01.2015 -] AYH30 |
G3834-48010 |
US $34.50 |
||
|
G3834C
|
G3834C
90982-11051 Fuse, High Voltage[01.2015 -] AYH30 |
90982-11051 |
US $8.12 |
||
|
G9295B
|
G9295B
G9295-30020 Striker, Battery Cover Lock[01.2015 -] AYH30 |
G9295-30020 |
US $3.20 |
||
|
G9510
|
G9510
G9510-58030
Battery Assy, Hv Supply
[01.2015 - 05.2015] AYH30 |
G9510-58030 |
— | ||
| replacement | |||||
|
G9510
|
G9510
G9510-58040
Battery Assy, Hv Supply
[01.2015 - 05.2015] AYH30 |
G9510-58040 |
— | ||
|
G9510
|
G9510
G9510-58040
Battery Assy, Hv Supply
[05.2015 -] AYH30 |
G9510-58040 |
— | ||
