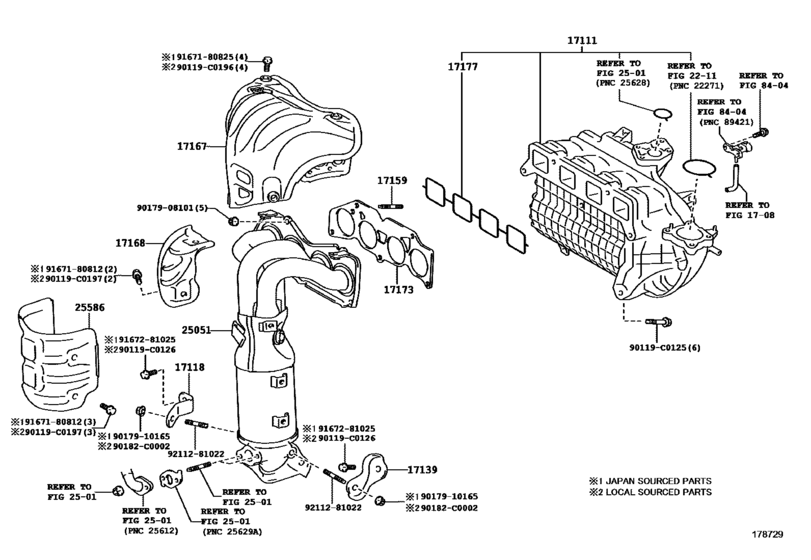

Manifold ([01.2015 - ] (1501- )2ARFXE) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2015 - 2018
- Sales region
- Japan
- Frame
- AYH30
- grade
- EL
- ENGINE
- 2ARFXE
- TRANSMISSION
- CVT
- Model
- Alphard III
- From
- 01.2015
- Seating Capacity
- 07S
- Vehicle Model
- ALPHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17111
|
17111
17120-36050 Manifold, Intake[01.2015 -] 2ARFXE..AYH30 ＊３４７ |
17120-36050 |
US $356.72 |
||
|
17118
|
17118
17118-0V030
Stay, Manifold
[01.2015 -] 2ARFXE..AYH30 ＊３４７ |
17118-0V030 |
— | ||
|
17139
|
17139
17139-0V030
Stay, Manifold, No.2
[01.2015 -] 2ARFXE..AYH30 ＊３４７ |
17139-0V030 |
— | ||
|
17159
|
17159
90126-08052 Bolt, Stud(For Oil Pan)[01.2015 -] 2AR#..AGH3#,AYH30 ＊３４７ |
90126-08052 |
from US $0.90 |
||
|
17167
|
17167
17167-0V020
Insulator, Exhaust Manifold Heat, No.1
[01.2015 -] 2AR#..AGH3#,AYH30 ＊３４７ |
17167-0V020 |
— | ||
|
17168
|
17168
17168-0V020
Insulator, Exhaust Manifold Heat, No.2
[01.2015 -] 2AR#..AGH3#,AYH30 ＊３４７ |
17168-0V020 |
— | ||
|
17173
|
17173
17173-0V020
Gasket, Exhaust Manifold To Head
[01.2015 -] 2AR#..AGH3#,AYH30 ＊３４７ |
17173-0V020 |
— | ||
|
17177
|
17177
17171-36020 Gasket, Intake Manifold To Head, No.1[01.2015 -] 2ARFXE..AYH30 ＊３４７ |
17171-36020 |
US $13.47 |
||
|
25051
|
25051
25051-0V260 Converter Sub-Assy, Exhaust Manifold[01.2015 -] 2ARFXE..AYH30 ＊１１４＝ＴＯＹＯＴＡ／−／Ｙ,＊３４７ |
25051-0V260 |
US $1,324.07 |
||
|
25586
|
25586
25586-0V070
Insulator, Manifold Converter, No.1
[01.2015 -] 2ARFXE..AYH30 ＊３４７ |
25586-0V070 |
— | ||
|
90119C0125
|
90119C0125
90119-C0125
New Genuine Part
|
90119-C0125 |
— | ||
|
90119C0126
|
90119C0126
90119-C0126
New Genuine Part
|
90119-C0126 |
— | ||
|
90119C0196
|
90119C0196
90119-C0196
New Genuine Part
|
90119-C0196 |
— | ||
|
90119C0197
|
90119C0197
90119-C0197
New Genuine Part
|
90119-C0197 |
— | ||
|
90182C0002
|
90182C0002
90182-C0002
New Genuine Part
|
90182-C0002 |
— | ||
|
9017908101
|
9017908101
90179-08101 NUT |
90179-08101 |
from US $0.84 |
||
|
9017910165
|
9017910165
90179-10165 NUT |
90179-10165 |
from US $1.03 |
||
|
9167180812
|
9167180812
91671-80812 BOLT FLANGE |
91671-80812 |
US $1.28 |
||
|
9167180825
|
9167180825
91671-80825 Bolt, Compressor, No.1 |
91671-80825 |
from US $0.80 |
||
|
9167281025
|
9167281025
91672-81025 Bolt, Center Support Bearing Bracket |
91672-81025 |
from US $1.17 |
||
|
9211281022
|
9211281022
92112-81022 BOLT STUD |
92112-81022 |
from US $1.05 |
