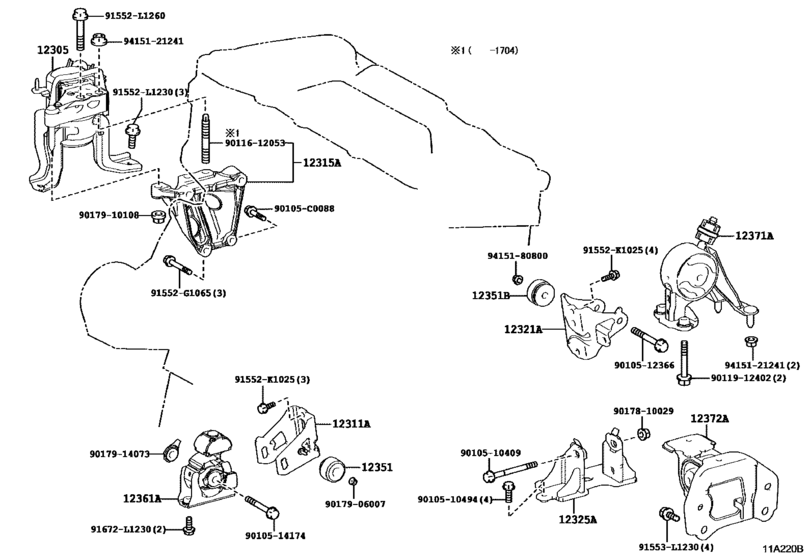

Mounting ([01.2015 - ] (1501- )2ARFXE) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2015 - 2018
- Sales region
- Japan
- Frame
- AYH30
- grade
- EL
- ENGINE
- 2ARFXE
- TRANSMISSION
- CVT
- Model
- Alphard III
- From
- 01.2015
- Seating Capacity
- 07S
- Vehicle Model
- ALPHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12305
|
12305
12305-36080 Insulator Sub-Assy, Engine Mounting, Rh[01.2015 -] 2ARFXE..AYH30 |
12305-36080 |
US $167.04 |
||
|
12311A
|
12311A
12311-28301 Bracket, Engine Mounting, Front(For Transverse Engine)[01.2015 -] 2ARFXE..AYH30 |
12311-28301 |
from US $31.67 |
||
|
12315A
|
12315A
12315-0V030
Bracket, Engine Mounting, Rh(For Transverse Engine)
[01.2015 - 04.2017] 2AR#..AGH3#,AYH30 （Ｌ），＊３４７ |
12315-0V030 |
— | ||
|
12315A
|
12315A
12315-0V031
Bracket, Engine Mounting, Rh(For Transverse Engine)
[04.2017 -] 2AR#..AGH3#,AYH30 （Ｌ），＊３４７ |
12315-0V031 |
— | ||
|
12315A
|
12315A
12315-36010 Bracket, Engine Mounting, Rh(For Transverse Engine)ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) [01.2015 - 04.2017] 2AR#..AGH3#,AYH30 （Ｊ），＊３４７ |
12315-36010 |
US $46.01 |
||
|
12315A
|
12315A
12315-36011 Bracket, Engine Mounting, Rh(For Transverse Engine)[04.2017 -] 2AR#..AGH3#,AYH30 （Ｊ），＊３４７ |
12315-36011 |
US $55.65 |
||
|
12321A
|
12321A
12321-36090 Bracket, Engine Mounting, Rear(For Transverse Engine)[01.2015 -] 2ARFXE..AYH30 |
12321-36090 |
US $28.38 |
||
|
12325A
|
12325A
12325-36070 Bracket, Engine Mounting, Lh(For Transverse Engine)[01.2015 -] 2ARFXE..AYH30 |
12325-36070 |
from US $31.62 |
||
|
12351
|
12351
12351-74010 Damper, Engine Mounting[01.2015 -] 2ARFXE..AYH30 |
12351-74010 |
US $36.16 |
||
|
12351B
|
12351B
12351-23040 Damper, Engine Mounting[01.2015 -] 2ARFXE..AYH30; 2GRFE..GGH3# |
12351-23040 |
US $25.68 |
||
|
12361A
|
12361A
12361-36200 Insulator, Engine Mounting, Front(For Transverse Engine)[01.2015 -] 2ARFXE..AYH30 |
12361-36200 |
US $85.84 |
||
|
12371A
|
12371A
12371-36170 Insulator, Engine Mounting, Rear[01.2015 -] 2ARFXE..AYH30 |
12371-36170 |
US $97.68 |
||
|
12372A
|
12372A
12372-36100 Insulator, Engine Mounting, Lh(For Transverse Engine)[01.2015 -] 2ARFXE..AYH30 |
12372-36100 |
US $103.60 |
||
|
90105C0088
|
90105C0088
90105-C0088
New Genuine Part
|
90105-C0088 |
— | ||
|
91552G1065
|
91552G1065
91552-G1065 BOLT FLANGE |
91552-G1065 |
US $1.93 |
||
|
91552K1025
|
91552K1025
91552-K1025 BOLT FLANGE |
91552-K1025 |
US $1.60 |
||
|
91552L1230
|
91552L1230
91552-L1230 BOLT FLANGE |
91552-L1230 |
US $2.56 |
||
|
91552L1260
|
91552L1260
91552-L1260 BOLT FLANGE |
91552-L1260 |
US $4.32 |
||
|
91553L1230
|
91553L1230
91553-L1230 New Genuine Part |
91553-L1230 |
US $3.36 |
||
|
91672L1230
|
91672L1230
91672-L1230 BOLT FLANGE |
91672-L1230 |
US $3.04 |
||
|
9010510409
|
9010510409
90105-10409 New Genuine Part |
90105-10409 |
US $4.32 |
||
|
9010510494
|
9010510494
90105-10494 BOLT FLANGE |
90105-10494 |
US $1.60 |
||
|
9010512366
|
9010512366
90105-12366 BOLT FLANGE |
90105-12366 |
US $3.84 |
||
|
9010514174
|
9010514174
90105-14174 New Genuine Part |
90105-14174 |
US $6.40 |
||
|
9011612053
|
9011612053
90116-12053 BOLT STUD |
90116-12053 |
US $4.96 |
||
|
9011912402
|
9011912402
90119-12402 New Genuine Part |
90119-12402 |
US $4.32 |
||
|
9017810029
|
9017810029
90178-10029 Nut(For Front Suspension Support) |
90178-10029 |
from US $0.94 |
||
|
9017906007
|
9017906007
90179-06007 Nut |
90179-06007 |
from US $0.86 |
||
|
9017910108
|
9017910108
90179-10108 NUT |
90179-10108 |
US $2.40 |
||
|
9017914073
|
9017914073
90179-14073 New Genuine Part |
90179-14073 |
US $3.84 |
||
|
9415121241
|
9415121241
94151-21241 Nut(For Front Stabilizer Link) |
94151-21241 |
from US $0.94 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.82 |
