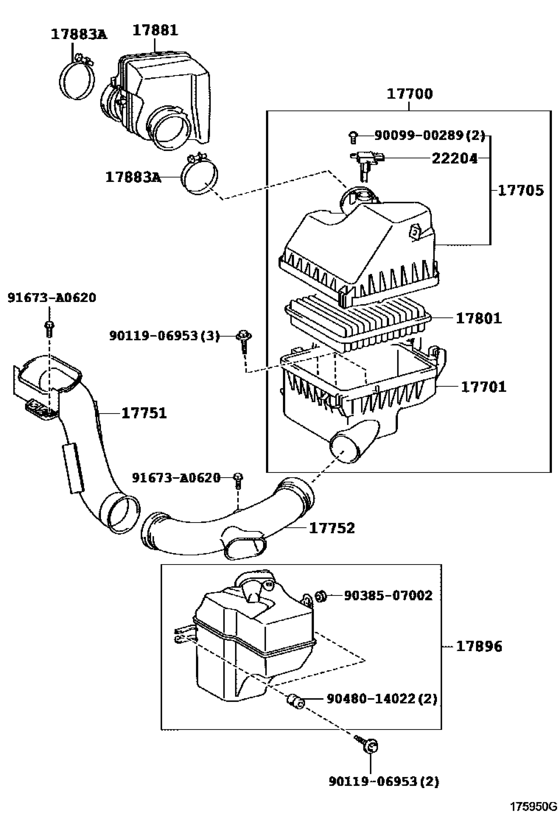

Air Cleaner ([04.2008 - ] (0804- )2GRFE) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2008 - 2015
- Sales region
- Japan
- Frame
- GGH20
- grade
- 350S
- ENGINE
- 2GRFE
- Model
- Alphard II
- From
- 04.2008
- To
- 01.2015
- Gear Shift Type
- 6FC
- Seating Capacity
- 08S
- Vehicle Model
- Alphard
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17700
|
17700
17700-31661 Cleaner Assy, Air[04.2008 - 10.2011] 2GRFE..GGH2#..CBU |
17700-31661 |
US $279.55 |
||
| replacement | |||||
|
17700
|
17700
17700-31662 Cleaner Assy, Air[04.2008 - 10.2011] 2GRFE..GGH2#..CBU |
17700-31662 |
US $261.12 |
||
|
17700
|
17700
17700-31662 Cleaner Assy, Air[10.2011 -] 2GRFE..GGH2#..CBU |
17700-31662 |
US $261.12 |
||
|
17701
|
17701
17701-31570 Case Sub-Assy, Air Cleaner[04.2008 - 10.2011] 2GRFE..GGH2#..CBU |
17701-31570 |
US $105.42 |
||
|
17705
|
17705
17705-31201
Cap Sub-Assy, Air Cleaner
[04.2008 - 10.2011] 2GRFE..GGH2#..CBU |
17705-31201 |
— | ||
| replacement | |||||
|
17705
|
17705
17705-31202 Cap Sub-Assy, Air Cleaner[04.2008 - 10.2011] 2GRFE..GGH2#..CBU |
17705-31202 |
US $249.23 |
||
|
17705
|
17705
17705-31202 Cap Sub-Assy, Air Cleaner[10.2011 -] 2GRFE..GGH2#..CBU |
17705-31202 |
US $249.23 |
||
|
17751
|
17751
17751-31280 Inlet, Air Cleaner, No.1[04.2008 - 10.2011] 2GRFE..GGH2#..CBU |
17751-31280 |
US $84.48 |
||
|
17752
|
17752
17752-31090 Inlet, Air Cleaner, No.2[04.2008 - 10.2011] 2GRFE..GGH2#..CBU |
17752-31090 |
US $47.90 |
||
|
17801
|
17801
17801-31120 Element Sub-Assy, Air Cleaner Filter[04.2008 - 10.2011] 2GRFE..GGH2#..CBU; 2AZFE..ANH2#..CBU |
17801-31120 |
from US $49.10 |
||
|
17881
|
17881
17880-31200 Hose, Air Cleaner, No.1[04.2008 - 10.2011] 2GRFE..GGH2#..CBU |
17880-31200 |
US $46.16 |
||
|
17883A
|
17883A
96111-10900 Clamp, Hose[04.2008 - 10.2011] 2GRFE..GGH2#..CBU |
96111-10900 |
from US $1.19 |
||
|
17896
|
17896
17896-31020 Resonator Sub-Assy, Intake Air[04.2008 - 10.2011] 2GRFE..GGH2#..CBU |
17896-31020 |
from US $79.33 |
||
|
22204
|
22204
22204-0H010
Meter Sub-Assy, Intake Air Flow
[10.2011 -] 2AZ#..ANH2#,ATH20..CBU マーク ２２２０４−０Ｈ０１０; 2GRFE..GGH2#..CBU マーク ２２２０４−０Ｈ０１０ |
22204-0H010 |
— | ||
|
22204
|
22204
22204-0P010 Meter Sub-Assy, Intake Air Flow[10.2011 -] 2AZ#..ANH2#,ATH20..CBU マーク ２２２０４−０Ｐ０１０; 2GRFE..GGH2#..CBU マーク ２２２０４−０Ｐ０１０ |
22204-0P010 |
US $139.91 |
||
|
22204
|
22204
22204-0T010
Meter Sub-Assy, Intake Air Flow
[10.2011 -] 2AZ#..ANH2#,ATH20..CBU マーク ２２２０４−０Ｔ０１０; 2GRFE..GGH2#..CBU マーク ２２２０４−０Ｔ０１０ |
22204-0T010 |
— | ||
|
22204
|
22204
22204-31020 Meter Sub-Assy, Intake Air Flow[04.2008 - 10.2011] 2GRFE..GGH2#..CBU; 2AZFE..ANH2#..CBU |
22204-31020 |
from US $138.61 |
||
|
91673A0620
|
91673A0620
91673-A0620 BOLT FLANGE |
91673-A0620 |
from US $0.66 |
||
|
9009900289
|
9009900289
90099-00289 SCREW |
90099-00289 |
from US $0.66 |
||
|
9011906953
|
9011906953
90119-06953 BOLT WWASHER |
90119-06953 |
US $1.28 |
||
|
9038507002
|
9038507002
90385-07002 Clamp, Hose(For Intake Air Resonator, No.3) |
90385-07002 |
US $1.14 |
||
|
9048014022
|
9048014022
90480-14022 Grommet |
90480-14022 |
US $2.24 |
||
