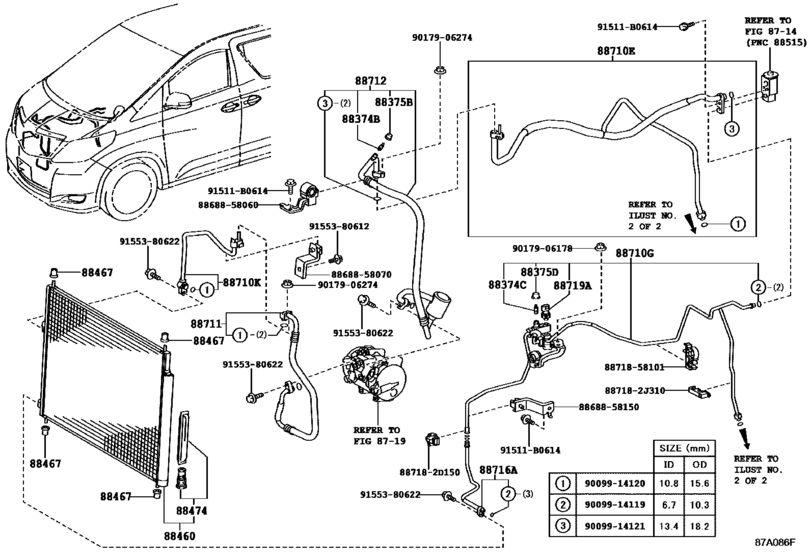

Heating & Air Conditioning - Cooler Piping ([04.2008 - ] ﾌﾛﾝﾄ (0804- )GGH2#) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2008 - 2015
- Sales region
- Japan
- Frame
- GGH20
- grade
- 350S
- ENGINE
- 2GRFE
- Model
- Alphard II
- From
- 04.2008
- To
- 01.2015
- Gear Shift Type
- 6FC
- Seating Capacity
- 08S
- Vehicle Model
- Alphard
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88374B
|
88374B
88374-30010 Valve, Service, No.1[04.2008 - 10.2011] ANH2#,GGH2#..CBU |
88374-30010 |
from US $3.37 |
||
|
88374C
|
88374C
88374-30010 Valve, Service, No.1[04.2008 - 10.2011] ANH2#,GGH2#..CBU |
88374-30010 |
from US $3.37 |
||
|
88375B
|
88375B
88375-30290 Cap, Service Valve (For Cooler Pipe)[04.2008 - 10.2011] ANH2#,GGH2#..CBU |
88375-30290 |
from US $0.94 |
||
|
88375D
|
88375D
88375-30280 Cap, Service Valve (For Cooler Pipe)[04.2008 - 10.2011] ANH2#,GGH2#..CBU |
88375-30280 |
from US $0.98 |
||
|
88460
|
88460
88460-58011 Condenser Assy, Cooler[04.2008 - 10.2011] ANH2#,GGH2#..CBU |
88460-58011 |
from US $706 |
||
|
88467
|
88467
16716-28010 Cushion, Fan Shroud[04.2008 - 10.2011] ANH2#,GGH2#..CBU |
16716-28010 |
from US $2.22 |
||
|
88474
|
88474
88474-12030 Dryer, Cooler[04.2008 - 10.2011] ANH2#,GGH2#..CBU |
88474-12030 |
from US $66.04 |
||
|
88710E
|
88710E
88710-58090 Tube & Accessory Assy, Air Conditioner[04.2008 - 10.2011] ANH2#,GGH2#..CBU |
88710-58090 |
US $308.67 |
||
|
88710E
|
88710E
88710-58170 Tube & Accessory Assy, Air Conditioner[10.2011 -] ANH2#,ATH20,GGH2#..CBU |
88710-58170 |
US $324.69 |
||
|
88710G
|
88710G
88710-58100 Tube & Accessory Assy, Air Conditioner, No.2[04.2008 - 10.2011] ANH2#,GGH2#..CBU |
88710-58100 |
US $445.20 |
||
|
88710K
|
88710K
88710-58111 Tube & Accessory Assy, Air Conditioner, No.3[04.2008 - 10.2011] GGH2#..CBU |
88710-58111 |
from US $56.49 |
||
|
88711
|
88711
88711-58080 Hose, Cooler Refrigerant Discharge, No.1[04.2008 - 10.2011] GGH2#..CBU |
88711-58080 |
US $179.52 |
||
|
88712
|
88712
88712-58050 Hose, Cooler Refrigerant Suction, No.1[04.2008 - 10.2011] GGH2#..CBU |
88712-58050 |
US $243.15 |
||
|
88712
|
88712
88712-58051 Hose, Cooler Refrigerant Suction, No.1[10.2011 -] GGH2#..CBU |
88712-58051 |
US $202.38 |
||
|
88716A
|
88716A
88716-58160 Pipe, Cooler Refrigerant Liquid, A[04.2008 - 01.2010] ANH2#,GGH2#..CBU |
88716-58160 |
US $48.34 |
||
| replacement | |||||
|
88716A
|
88716A
88716-58210 Pipe, Cooler Refrigerant Liquid, ACOOLER REFRIGERANT LIQUID, A [04.2008 - 01.2010] ANH2#,GGH2#..CBU |
88716-58210 |
US $65.06 |
||
|
88716A
|
88716A
88716-58210 Pipe, Cooler Refrigerant Liquid, ACOOLER REFRIGERANT LIQUID, A [02.2010 - 10.2011] ANH2#,GGH2#..CBU |
88716-58210 |
US $65.06 |
||
|
88719A
|
88719A
88719-33020 Sensor, Airconditioner Pressure[04.2008 - 10.2011] ANH2#,GGH2#..CBU |
88719-33020 |
from US $124.05 |
||
|
91511B0614
|
91511B0614
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.74 |
||
|
887182D150
|
887182D150
88718-2D150 Clamp(For Cooler Refrigerant Pipe), No.1 |
88718-2D150 |
from US $6.12 |
||
|
887182J310
|
887182J310
88718-2J310
Pipe, Cooler Refrigerant Suction, No.2
|
88718-2J310 |
— | ||
|
8868858060
|
8868858060
88688-58060
Bracket, Cooler Diaphragm
|
88688-58060 |
— | ||
|
8868858070
|
8868858070
88688-58070
Bracket, Cooler Diaphragm
|
88688-58070 |
— | ||
|
8868858150
|
8868858150
88688-58150
Bracket, Cooler Diaphragm
|
88688-58150 |
— | ||
|
8871858101
|
8871858101
88718-58101
Clamp(For Cooler Refrigerant Hose), No.2
|
88718-58101 |
— | ||
|
9017906178
|
9017906178
90179-06178 Nut (For Rear Wiper Arm Setting) |
90179-06178 |
from US $0.80 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
|
9155380612
|
9155380612
91553-80612 BOLT FLANGE |
91553-80612 |
from US $0.72 |
||
|
9155380622
|
9155380622
91553-80622 BOLT FLANGE |
91553-80622 |
from US $0.74 |
||
