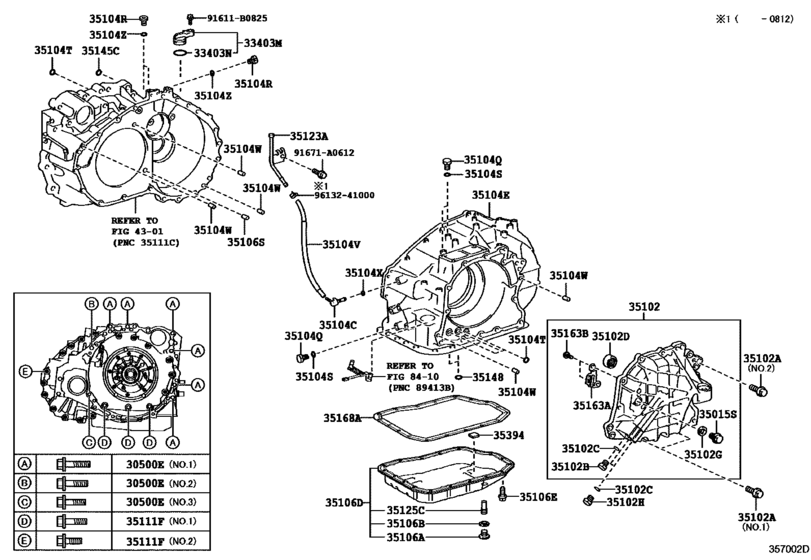

Transmission Case & Oil Pan (Atm) ([04.2008 - ] U660E,U660F (0804- )GGH2#) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2008 - 2015
- Sales region
- Japan
- Frame
- GGH20
- grade
- 350S
- ENGINE
- 2GRFE
- Model
- Alphard II
- From
- 04.2008
- To
- 01.2015
- Gear Shift Type
- 6FC
- Seating Capacity
- 08S
- Vehicle Model
- Alphard
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
30500E
|
30500E
90105-10425 Bolt(For Transaxle & Engine Setting)[04.2008 - 10.2011] GGH2#..CBU ＊１０−１．２５ＰＸ４１−２８,ＮＯ．３ |
90105-10425 |
US $1.60 |
||
|
30500E
|
30500E
90119-12168 Bolt(For Transaxle & Engine Setting)[04.2008 - 10.2011] GGH2#..CBU ＊１２−１．２５ＰＸ５５−３０,ＮＯ．１ |
90119-12168 |
from US $2.13 |
||
|
30500E
|
30500E
90119-12250 Bolt(For Transaxle & Engine Setting)[04.2008 - 10.2011] GGH2#..CBU ＊１２−１．２５ＰＸ５０−３０,ＮＯ．２ |
90119-12250 |
from US $1.60 |
||
|
33403M
|
33403M
33403-35230 Cover Sub-Assy, Speedometer Driven Hole[04.2008 - 10.2011] GGH2#..CBU |
33403-35230 |
US $17.94 |
||
|
33403N
|
33403N
96711-24030 Ring,o (For Speedometer Driven Hole Cover)[04.2008 - 10.2011] GGH2#..CBU |
96711-24030 |
from US $2.32 |
||
|
35015S
|
35015S
90341-18064 Plug, Straight(For Transmission Case Adapter)[04.2008 - 10.2011] GGH2#..CBU |
90341-18064 |
from US $3.04 |
||
|
35102
|
35102
35102-28041 Cover Sub-Assy, Transaxle Rear[04.2008 - 10.2011] GGH2#..CBU |
35102-28041 |
US $269.36 |
||
| replacement | |||||
|
35102
|
35102
35102-28042 Cover Sub-Assy, Transaxle Rear[04.2008 - 10.2011] GGH2#..CBU |
35102-28042 |
US $244.61 |
||
|
35102
|
35102
35102-28042 Cover Sub-Assy, Transaxle Rear[09.2013 -] GGH2#..CBU |
35102-28042 |
US $244.61 |
||
|
35102A
|
35102A
90105-08431 Bolt (For Transaxle Rear Cover Setting)[04.2008 - 10.2011] GGH2#..CBU ＊８−１．２５ＰＸ２８−２２,ＮＯ．１ |
90105-08431 |
US $1.44 |
||
|
35102A
|
35102A
91551-00828 Bolt (For Transaxle Rear Cover Setting)[04.2008 - 10.2011] GGH2#..CBU ＊８−１．２５Ｐ×２８−２２,ＮＯ．２ |
91551-00828 |
US $1.02 |
||
|
35102B
|
35102B
90341-08001 Plug, Transaxle Case, No.1[04.2008 - 10.2011] GGH2#..CBU |
90341-08001 |
from US $1.92 |
||
|
35102C
|
35102C
90301-06196 O Ring, Transaxle Case, No.1[04.2008 - 10.2011] GGH2#..CBU |
90301-06196 |
from US $2.26 |
||
|
35102D
|
35102D
90364-18010 Bearing, Needle Roller(For Transaxle Rear Cover)[04.2008 - 10.2011] GGH2#..CBU |
90364-18010 |
from US $11.20 |
||
|
35102G
|
35102G
90430-18008 Gasket[04.2008 - 10.2011] GGH2#..CBU |
90430-18008 |
from US $0.92 |
||
| replacement | |||||
|
35102G
|
35102G
90430-T0021 Gasket(For Manual Transmission Filler Plug)[04.2008 - 10.2011] GGH2#..CBU |
90430-T0021 |
US $1.15 |
||
|
35102H
|
35102H
90341-08001 Plug, Transaxle Case, No.1[04.2008 - 10.2011] GGH2#..CBU |
90341-08001 |
from US $1.92 |
||
|
35104C
|
35104C
90930-03187 Plug, Breather, No.2 (Atm)[04.2008 - 10.2011] GGH2#..CBU |
90930-03187 |
from US $5.12 |
||
|
35104E
|
35104E
35141-33070 Case Sub-Assy, Automatic Transaxle[04.2008 - 05.2008] GGH2#..CBU |
35141-33070 |
US $895.44 |
||
| replacements | |||||
|
35104E
|
35104E
35141-33073 Case Sub-Assy, Automatic Transaxle[04.2008 - 05.2008] GGH2#..CBU |
35141-33073 |
from US $658.69 |
||
|
35104E
|
35104E
35557-33021 Pawl, Parking Lock[04.2008 - 05.2008] GGH2#..CBU |
35557-33021 |
US $37.86 |
||
|
35104E
|
35104E
90369-72002 Bearing(For Counter Drive Gear)[04.2008 - 05.2008] GGH2#..CBU |
90369-72002 |
from US $100.64 |
||
|
35104E
|
35104E
90520-99154 Ring, Hole Snap(For Counter Drive Gear)[04.2008 - 05.2008] GGH2#..CBU |
90520-99154 |
US $1.79 |
||
|
35104E
|
35104E
35141-33071 Case Sub-Assy, Automatic Transaxle[05.2008 - 10.2011] GGH2#..CBU |
35141-33071 |
US $748.38 |
||
| replacements | |||||
|
35104E
|
35104E
35141-33073 Case Sub-Assy, Automatic Transaxle[05.2008 - 10.2011] GGH2#..CBU |
35141-33073 |
from US $658.69 |
||
|
35104E
|
35104E
35557-33021 Pawl, Parking Lock[05.2008 - 10.2011] GGH2#..CBU |
35557-33021 |
US $37.86 |
||
|
35104E
|
35104E
90369-72002 Bearing(For Counter Drive Gear)[05.2008 - 10.2011] GGH2#..CBU |
90369-72002 |
from US $100.64 |
||
|
35104E
|
35104E
90520-99154 Ring, Hole Snap(For Counter Drive Gear)[05.2008 - 10.2011] GGH2#..CBU |
90520-99154 |
US $1.79 |
||
|
35104E
|
35104E
35141-33072 Case Sub-Assy, Automatic Transaxle[03.2012 - 02.2014] GGH2#..CBU |
35141-33072 |
US $627.54 |
||
| replacements | |||||
|
35104E
|
35104E
35141-33073 Case Sub-Assy, Automatic Transaxle[03.2012 - 02.2014] GGH2#..CBU |
35141-33073 |
from US $658.69 |
||
|
35104E
|
35104E
90369-72002 Bearing(For Counter Drive Gear)[03.2012 - 02.2014] GGH2#..CBU |
90369-72002 |
from US $100.64 |
||
|
35104E
|
35104E
90520-99154 Ring, Hole Snap(For Counter Drive Gear)[03.2012 - 02.2014] GGH2#..CBU |
90520-99154 |
US $1.79 |
||
|
35104E
|
35104E
35141-33073 Case Sub-Assy, Automatic Transaxle[02.2014 -] GGH2#..CBU |
35141-33073 |
from US $658.69 |
||
|
35104Q
|
35104Q
90341-08001 Plug, Transaxle Case, No.1[04.2008 - 10.2011] GGH2#..CBU |
90341-08001 |
from US $1.92 |
||
|
35104R
|
35104R
90341-14015 Plug, W/head Straight Screw, No.1[04.2008 - 10.2011] GGH2#..CBU |
90341-14015 |
from US $1.92 |
||
|
35104S
|
35104S
90301-06196 O Ring, Transaxle Case, No.1[04.2008 - 10.2011] GGH2#..CBU |
90301-06196 |
from US $2.26 |
||
|
35104T
|
35104T
90301-10018 Ring, O(For Oil Cooler Tube Union)[10.2011 -] GGH2#..CBU |
90301-10018 |
from US $2.24 |
||
|
35104T
|
35104T
90301-10189 Ring, O(For Oil Cooler Tube Union)[04.2008 - 10.2011] GGH2#..CBU |
90301-10189 |
from US $2.72 |
||
|
35104V
|
35104V
35121-58010 Hose(For Transaxle)[04.2008 - 10.2011] GGH2#..CBU |
35121-58010 |
US $10.88 |
||
|
35104W
|
35104W
90250-10017 Pin, Straight(For Clutch Housing Set)[04.2008 - 10.2011] GGH2#..CBU |
90250-10017 |
from US $2.08 |
||
|
35104X
|
35104X
90301-06005 Ring, O (For Breather Plug)[04.2008 - 05.2011] GGH2#..CBU |
90301-06005 |
from US $2.40 |
||
|
35104X
|
35104X
90301-06021 Ring, O (For Breather Plug)[05.2011 - 10.2011] GGH2#..CBU |
90301-06021 |
US $2.24 |
||
|
35104Z
|
35104Z
90430-14008 Gasket(For Water Hole)[04.2008 - 10.2011] GGH2#..CBU |
90430-14008 |
from US $1.01 |
||
|
35106A
|
35106A
90341-12034 Plug Sub-Assy, Drain (Atm)[04.2008 - 10.2011] GGH2#..CBU |
90341-12034 |
from US $3.04 |
||
|
35106B
|
35106B
90430-12008 Gasket (For Shift Inter Lock Plate)[04.2008 - 10.2011] GGH2#..CBU |
90430-12008 |
from US $0.88 |
||
|
35106D
|
35106D
35106-33061
Pan Sub-Assy, Automatic Transaxle Oil
[04.2008 - 10.2011] GGH2#..CBU |
35106-33061 |
— | ||
| replacement | |||||
|
35106D
|
35106D
35106-48011 Pan Sub-Assy, Automatic Transaxle Oil[04.2008 - 10.2011] GGH2#..CBU |
35106-48011 |
from US $54.72 |
||
|
35106D
|
35106D
35106-48010 Pan Sub-Assy, Automatic Transaxle Oil[10.2013 - 01.2015] GGH2#..CBU |
35106-48010 |
US $48.48 |
||
| replacement | |||||
|
35106D
|
35106D
35106-48011 Pan Sub-Assy, Automatic Transaxle Oil[10.2013 - 01.2015] GGH2#..CBU |
35106-48011 |
from US $54.72 |
||
|
35106E
|
35106E
90119-06173 Bolt, Stud (For Automatic Transmission Oil Pan Setting)[04.2008 - 10.2011] GGH2#..CBU |
90119-06173 |
from US $0.90 |
||
|
35106S
|
35106S
90253-11007
Pin, Ring (For Transaxle Case)
[04.2008 - 10.2011] GGH2#..CBU |
90253-11007 |
— | ||
|
35111F
|
35111F
90105-08432 Bolt (For Transaxle Housing & Transaxle Case Setting)[04.2008 - 10.2011] GGH2#..CBU ＊８−１．２５ＰＸ４５−２２,ＮＯ．１ |
90105-08432 |
US $1.31 |
||
|
35111F
|
35111F
91551-10845 Bolt (For Transaxle Housing & Transaxle Case Setting)[04.2008 - 10.2011] GGH2#..CBU ＊８−１．２５Ｐ×４５−２２,ＮＯ．２ |
91551-10845 |
US $1.31 |
||
|
35123A
|
35123A
35123-28010 Skirt, Transmission Breather[04.2008 - 10.2011] GGH2#..CBU |
35123-28010 |
US $3.35 |
||
|
35125C
|
35125C
35125-33130 Tube, Transmission Oil Filler, No.1[04.2008 - 10.2011] GGH2#..CBU |
35125-33130 |
from US $1.93 |
||
|
35145C
|
35145C
35145-33010 Gasket, Transaxle Case[04.2008 - 10.2011] GGH2#..CBU |
35145-33010 |
US $5.76 |
||
|
35148
|
35148
35145-33010 Gasket, Transaxle Case[04.2008 - 10.2011] GGH2#..CBU |
35145-33010 |
US $5.76 |
||
|
35163A
|
35163A
35163-33010 Plate, Transaxle Rear Cover[04.2008 - 10.2011] GGH2#..CBU |
35163-33010 |
US $3.06 |
||
|
35163B
|
35163B
90148-60055 Screw, Hex Lobular(For Transaxle Rear Cover Plate)[04.2008 - 10.2011] GGH2#..CBU |
90148-60055 |
US $0.73 |
||
|
35168A
|
35168A
35168-33080 Gasket, Automatic Transaxle Oil Pan[04.2008 - 10.2011] GGH2#..CBU |
35168-33080 |
from US $8.32 |
||
|
35394
|
35394
35394-30011 Magnet, Oil Cleaner (For Transmission)[04.2008 - 10.2011] GGH2#..CBU |
35394-30011 |
from US $5.76 |
||
|
91611B0825
|
91611B0825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.93 |
||
|
91671A0612
|
91671A0612
91671-A0612 BOLT FLANGE |
91671-A0612 |
from US $0.66 |
||
|
9613241000
|
9613241000
96132-41000 Clip, No.1(For Idle-Up Hose) |
96132-41000 |
from US $1.28 |
||
