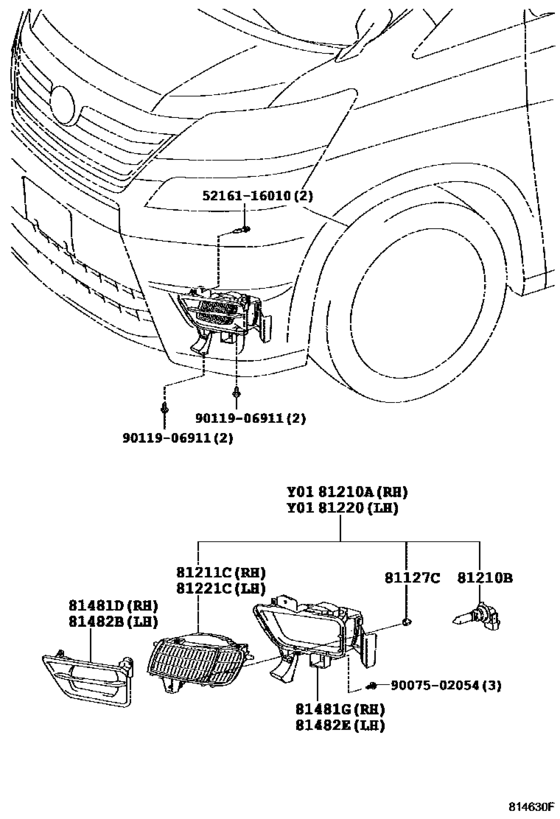

Fog Lamp ([04.2008 - 10.2011] (0804-1110)24Z,35Z) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2008 - 2015
- Sales region
- Japan
- Frame
- GGH25
- grade
- 35Z
- ENGINE
- 2GRFE
- Model
- Vellfire II
- From
- 04.2008
- To
- 01.2015
- Gear Shift Type
- 6FC
- Seating Capacity
- 08S
- Vehicle Model
- Vellfire
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81127C
|
81127C
90075-10811 Bearing Fog Lamp[04.2008 - 10.2011] ANH2#,GGH2#..(240G,240X,24Z,350G,350X,35Z)..CBU |
90075-10811 |
US $4.48 |
||
|
81210A
|
81210A
81210-0W060 Lamp Assy, Fog, RhFOG, RH [10.2011 -] ANH2#,ATH20,GGH2#..CBU |
81210-0W060 |
from US $165.44 |
||
|
81210A
|
81210A
81210-44100 Lamp Assy, Fog, Rh[04.2008 - 08.2010] ANH2#,GGH2#..(240G,240X,24Z,350G,350X,35Z)..CBU |
81210-44100 |
US $205.30 |
||
|
81210A
|
81210A
81210-44101 Lamp Assy, Fog, Rh[08.2010 - 10.2011] ANH2#,GGH2#..(240G,240X,24Z,350G,350X,35Z)..CBU |
81210-44101 |
US $205.30 |
||
|
81210B
|
81210B
90981-13047 Bulb (HB4)[04.2008 - 10.2011] ANH2#,GGH2#..CBU １２Ｖ ５５Ｗ，ハロゲン |
90981-13047 |
from US $17.76 |
||
|
81210B
|
81210B
90981-13075 Bulb(For Headlamp, No.1)[10.2011 -] ANH2#,ATH20,GGH2#..CBU １２Ｖ ５５Ｗ，ハロゲン |
90981-13075 |
from US $17.86 |
||
|
81211C
|
81211C
81211-12180 Lamp Unit, Fog Lamp, Rh[04.2008 - 08.2010] ANH2#,GGH2#..(240G,240X,24Z,350G,350X,35Z)..CBU |
81211-12180 |
from US $177.80 |
||
|
81211C
|
81211C
81211-44101 Lamp Unit, Fog Lamp, Rh[08.2010 - 10.2011] ANH2#,GGH2#..(240G,240X,24Z,350G,350X,35Z)..CBU |
81211-44101 |
US $183.60 |
||
|
81220
|
81220
81220-0W050 Lamp Assy, Fog, LhFOG, LH [10.2011 -] ANH2#,ATH20,GGH2#..CBU |
81220-0W050 |
from US $158.05 |
||
|
81220
|
81220
81220-44100 Lamp Assy, Fog, Lh[04.2008 - 08.2010] ANH2#,GGH2#..(240G,240X,24Z,350G,350X,35Z)..CBU |
81220-44100 |
US $205.30 |
||
|
81220
|
81220
81220-44101 Lamp Assy, Fog, Lh[08.2010 - 10.2011] ANH2#,GGH2#..(240G,240X,24Z,350G,350X,35Z)..CBU |
81220-44101 |
US $205.30 |
||
|
81221C
|
81221C
81221-12180 Lamp Unit, Fog Lamp, Lh[04.2008 - 08.2010] ANH2#,GGH2#..(240G,240X,24Z,350G,350X,35Z)..CBU |
81221-12180 |
from US $175.87 |
||
|
81221C
|
81221C
81221-44101 Lamp Unit, Fog Lamp, Lh[08.2010 - 10.2011] ANH2#,GGH2#..(240G,240X,24Z,350G,350X,35Z)..CBU |
81221-44101 |
US $207.36 |
||
|
81481D
|
81481D
81481-58100 Cover, Fog Lamp, Rh[04.2008 - 10.2011] ANH2#,GGH2#..24Z,35Z |
81481-58100 |
US $59.89 |
||
|
81481G
|
81481G
81481-58090 Bracket, Fog Lamp, Rh[04.2008 - 10.2011] ANH2#,GGH2#..(24Z,35Z)..CBU |
81481-58090 |
US $85.84 |
||
|
81482B
|
81482B
81482-58080 Cover, Fog Lamp, Lh[04.2008 - 10.2011] ANH2#,GGH2#..24Z,35Z |
81482-58080 |
US $59.89 |
||
|
81482E
|
81482E
81482-58070 Bracket, Fog Lamp, Lh[04.2008 - 10.2011] ANH2#,GGH2#..(24Z,35Z)..CBU |
81482-58070 |
US $85.84 |
||
|
5216116010
|
5216116010
52161-16010 Clip |
52161-16010 |
from US $1.68 |
||
| replacements | |||||
|
5216116010
|
5216116010
52161-0K040 Clip |
52161-0K040 |
from US $1.46 |
||
|
5216116010
|
5216116010
52161-02020 Clip |
52161-02020 |
US $5.27 |
||
|
9007502054
|
9007502054
90075-02054 New Genuine Part |
90075-02054 |
US $1.12 |
||
|
9011906911
|
9011906911
90119-06911 BOLT WWASHER |
90119-06911 |
US $1.28 |
||
