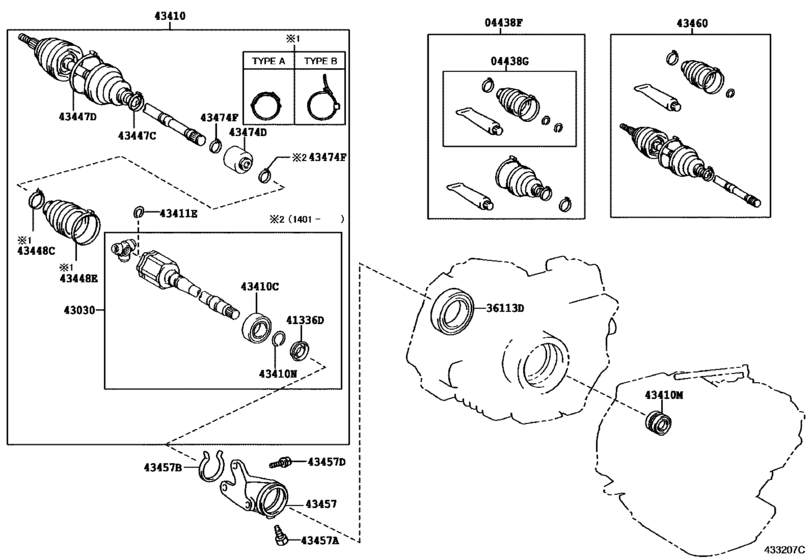

Front Drive Shaft ([04.2008 - ] RH (0804- )ANH25,GGH25) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2008 - 2015
- Sales region
- Japan
- Frame
- GGH25
- grade
- 350S
- ENGINE
- 2GRFE
- Model
- Alphard II
- From
- 04.2008
- To
- 01.2015
- Gear Shift Type
- 6FC
- Seating Capacity
- 08S
- Vehicle Model
- Alphard
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04438F
|
04438F
04427-42010
Boot Kit, Front Drive Shaft, In & Outboard, Rh
[04.2008 - 10.2011] GGH25..CBU |
04427-42010 |
— | ||
| replacement | |||||
|
04438F
|
04438F
04427-42011 Boot Kit, Front Drive Shaft, In & Outboard, Rh[04.2008 - 10.2011] GGH25..CBU |
04427-42011 |
US $117.06 |
||
|
04438F
|
04438F
04427-42011 Boot Kit, Front Drive Shaft, In & Outboard, Rh[10.2014 - 01.2015] ATH20,GGH25 |
04427-42011 |
US $117.06 |
||
|
04438G
|
04438G
04438-42180 Boot Kit, Front Drive Shaft Inboard Joint[04.2008 - 10.2011] ANH2#,GGH2#..CBU |
04438-42180 |
from US $68.15 |
||
|
36113D
|
36113D
90311-35056 Seal, Oil (For Transfer Case Rh)[04.2008 - 10.2011] ANH25,GGH25..CBU |
90311-35056 |
from US $3.15 |
||
|
41336D
|
41336D
41336-52020 Cover, Front Drive Shaft Dust, Rh[04.2008 - 10.2011] ANH25,GGH25..CBU |
41336-52020 |
US $4 |
||
|
43030
|
43030
43030-42070 Joint Assy, Front Drive Inboard, Rh[04.2008 - 10.2011] GGH25..CBU |
43030-42070 |
US $384.38 |
||
|
43410
|
43410
43410-42200 Shaft Assy, Front Drive, Rh[04.2008 - 10.2011] GGH25..CBU |
43410-42200 |
US $725.09 |
||
|
43410C
|
43410C
90363-36006 Bearing (For Front Drive Shaft)[04.2008 - 10.2011] ANH25,GGH25 |
90363-36006 |
from US $26.48 |
||
|
43410M
|
43410M
90316-34001 Oil Seal, Front Drive Shaft, Rh[04.2008 - 10.2011] GGH25..CBU |
90316-34001 |
from US $7.20 |
||
|
43410N
|
43410N
90520-33008 Ring, Hole Snap (For Differential Side Gear Shaft)[04.2008 - 10.2011] ANH25,GGH25..CBU |
90520-33008 |
from US $1.76 |
||
|
43411E
|
43411E
43425-28010 Ring, Shaft Snap (For Front Drive Inner Shaft Inner Rh)[04.2008 - 10.2011] ANH2#,GGH2#..CBU |
43425-28010 |
US $0.64 |
||
|
43447C
|
43447C
42345-42120 Clamp (For Front Axle Outboard Joint Boot Rh)[04.2008 - 10.2011] GGH2#..CBU |
42345-42120 |
US $2.91 |
||
|
43447D
|
43447D
42345-42110 Clamp, No.2 (For Front Axle Outboard Joint Boot)[04.2008 - 10.2011] GGH2#..CBU |
42345-42110 |
US $5.42 |
||
|
43448C
|
43448C
42345-42010 Clamp (For Axle Inboard Joint Boot)Small [04.2008 - 10.2011] ANH2#,GGH2#..CBU タイプ Ａ |
42345-42010 |
from US $0.84 |
||
|
43448C
|
43448C
90949-01559 Clamp, No.1 (For Axle Outboard Joint Boot Setting)[04.2008 - 10.2011] ANH2#,GGH2#..CBU タイプ Ｂ |
90949-01559 |
US $5.12 |
||
|
43448E
|
43448E
42345-12160 Clamp, No.2 (For Drive Shaft Inboard Joint Boot)Big [04.2008 - 10.2011] ANH2#,GGH2#..CBU タイプ Ｂ,タイプ Ａ |
42345-12160 |
from US $4.62 |
||
|
43457
|
43457
43457-42070 Bracket, Drive Shaft Bearing[04.2008 - 10.2011] GGH25..CBU |
43457-42070 |
US $49.80 |
||
|
43457A
|
43457A
90119-10461 Bolt (For Drive Shaft Bearing Bracket Setting No.1)[04.2008 - 10.2011] ANH25,GGH25..CBU ＊１０−１．２５ＰＸ１９．８−８．３ |
90119-10461 |
from US $1.13 |
||
|
43457B
|
43457B
90521-75002 Ring, Hole Snap (For Drive Shaft Bearing Bracket)[04.2008 - 10.2011] ANH25,GGH25 |
90521-75002 |
from US $2.03 |
||
|
43457D
|
43457D
90105-10381 Bolt (For Drive Shaft Bearing Bracket Setting No.1)[04.2008 - 10.2011] ANH2#,GGH2#..CBU |
90105-10381 |
US $1.60 |
||
|
43460
|
43460
43470-49655 Shaft Assy, Front Drive Outboard Joint, Rh[04.2008 - 10.2011] GGH2#..CBU |
43470-49655 |
US $505.23 |
||
| replacement | |||||
|
43460
|
43460
43470-49656 Shaft Assy, Front Drive Outboard Joint, Rh[04.2008 - 10.2011] GGH2#..CBU |
43470-49656 |
US $458.64 |
||
|
43460
|
43460
43470-49656 Shaft Assy, Front Drive Outboard Joint, Rh[10.2014 - 01.2015] GGH25..CBU; ATH20..CBU |
43470-49656 |
US $458.64 |
||
|
43474D
|
43474D
43474-48030 Damper, Front Drive Shaft, Rh[04.2008 - 10.2011] ANH25,GGH25 |
43474-48030 |
US $55.74 |
||
|
43474D
|
43474D
43474-48090
Damper, Front Drive Shaft, Rh
[10.2014 - 01.2015] ANH25,ATH20,GGH25 |
43474-48090 |
— | ||
|
43474F
|
43474F
42345-14010 Clamp, Rear Drive Shaft Boot[04.2008 - 10.2011] ANH25,GGH25..CBU |
42345-14010 |
US $11.20 |
||
