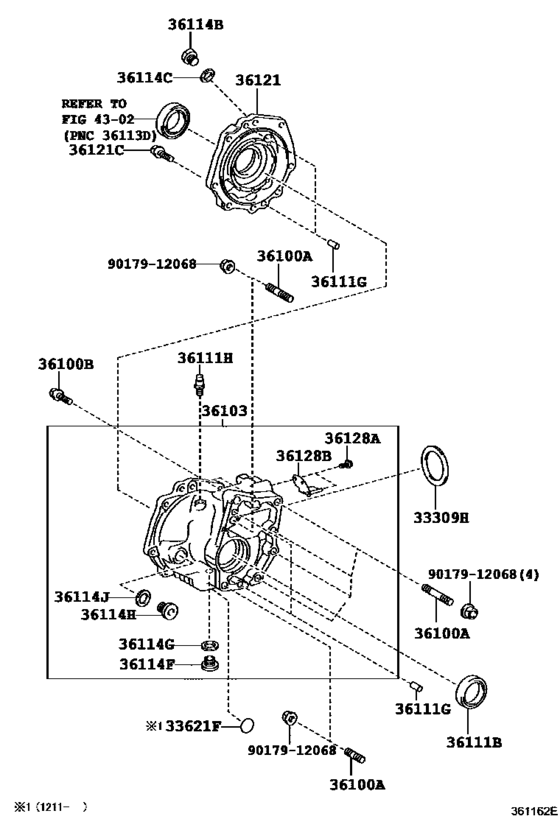

Transfer Case & Extension Housing ([04.2008 - ] (0804- )GGH25) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2008 - 2015
- Sales region
- Japan
- Frame
- GGH25
- grade
- 350S
- ENGINE
- 2GRFE
- Model
- Alphard II
- From
- 04.2008
- To
- 01.2015
- Gear Shift Type
- 6FC
- Seating Capacity
- 08S
- Vehicle Model
- Alphard
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33309H
|
33309H
36275-52010 Washer, Transfer Output Shaft[04.2008 - 10.2011] ANH25,GGH25 厚さ＝１．０２，マーク ０１ |
36275-52010 |
US $2.18 |
||
|
33309H
|
33309H
36275-52020 Washer, Transfer Output Shaft[04.2008 - 10.2011] ANH25,GGH25 厚さ＝１．０４，マーク ０２ |
36275-52020 |
US $2.18 |
||
|
33309H
|
33309H
36275-52030 Washer, Transfer Output Shaft[04.2008 - 10.2011] ANH25,GGH25 厚さ＝１．０６，マーク ０３ |
36275-52030 |
US $2.18 |
||
|
33309H
|
33309H
36275-52040 Washer, Transfer Output Shaft[04.2008 - 10.2011] ANH25,GGH25 厚さ＝１．０８，マーク ０４ |
36275-52040 |
US $2.18 |
||
|
33309H
|
33309H
36275-52050 Washer, Transfer Output Shaft[04.2008 - 10.2011] ANH25,GGH25 厚さ＝１．１０，マーク ０５ |
36275-52050 |
US $2.18 |
||
|
33309H
|
33309H
36275-52060 Washer, Transfer Output Shaft[04.2008 - 10.2011] ANH25,GGH25 厚さ＝１．１２，マーク ０６ |
36275-52060 |
US $2.18 |
||
|
33309H
|
33309H
36275-52070 Washer, Transfer Output Shaft[04.2008 - 10.2011] ANH25,GGH25 厚さ＝１．１４，マーク ０７ |
36275-52070 |
US $2.18 |
||
|
33309H
|
33309H
36275-52080 Washer, Transfer Output Shaft[04.2008 - 10.2011] ANH25,GGH25 厚さ＝１．１６，マーク ０８ |
36275-52080 |
US $2.18 |
||
|
33309H
|
33309H
36275-52090 Washer, Transfer Output Shaft[04.2008 - 10.2011] ANH25,GGH25 厚さ＝１．１８，マーク ０９ |
36275-52090 |
US $2.18 |
||
|
33309H
|
33309H
36275-52100 Washer, Transfer Output Shaft[04.2008 - 10.2011] ANH25,GGH25 厚さ＝１．２０，マーク １０ |
36275-52100 |
US $2.18 |
||
|
33309H
|
33309H
36275-52110 Washer, Transfer Output Shaft[04.2008 - 10.2011] ANH25,GGH25 厚さ＝１．２２，マーク １１ |
36275-52110 |
US $2.18 |
||
|
33309H
|
33309H
36275-52120 Washer, Transfer Output Shaft[04.2008 - 10.2011] ANH25,GGH25 厚さ＝１．２４，マーク １２ |
36275-52120 |
US $2.18 |
||
|
33309H
|
33309H
36275-52130 Washer, Transfer Output Shaft[04.2008 - 10.2011] ANH25,GGH25 厚さ＝１．２６，マーク １３ |
36275-52130 |
US $2.48 |
||
|
33309H
|
33309H
36275-52140 Washer, Transfer Output Shaft[04.2008 - 10.2011] ANH25,GGH25 厚さ＝１．２８，マーク １４ |
36275-52140 |
US $2.48 |
||
|
33309H
|
33309H
36275-52150 Washer, Transfer Output Shaft[04.2008 - 10.2011] ANH25,GGH25 厚さ＝１．３０，マーク １５ |
36275-52150 |
US $2.48 |
||
|
33309H
|
33309H
36275-52160 Washer, Transfer Output Shaft[04.2008 - 10.2011] ANH25,GGH25 厚さ＝１．３２，マーク １６ |
36275-52160 |
US $2.62 |
||
|
33309H
|
33309H
36275-52170 Washer, Transfer Output Shaft[04.2008 - 10.2011] ANH25,GGH25 厚さ＝１．３４，マーク １７ |
36275-52170 |
US $2.62 |
||
|
33309H
|
33309H
36275-52180 Washer, Transfer Output Shaft[04.2008 - 10.2011] ANH25,GGH25 厚さ＝１．３６，マーク １８ |
36275-52180 |
US $2.62 |
||
|
33309H
|
33309H
36275-52190 Washer, Transfer Output Shaft[04.2008 - 10.2011] ANH25,GGH25 厚さ＝１．３８，マーク １９ |
36275-52190 |
US $2.77 |
||
|
33309H
|
33309H
36275-52200 Washer, Transfer Output Shaft[04.2008 - 10.2011] ANH25,GGH25 厚さ＝１．４０，マーク ２０ |
36275-52200 |
US $2.48 |
||
|
33309H
|
33309H
36275-52210 Washer, Transfer Output Shaft[04.2008 - 10.2011] ANH25,GGH25 厚さ＝１．４２，マーク ２１ |
36275-52210 |
US $2.48 |
||
|
33309H
|
33309H
36275-52220 Washer, Transfer Output Shaft[04.2008 - 10.2011] ANH25,GGH25 厚さ＝１．４４，マーク ２２ |
36275-52220 |
US $2.48 |
||
|
33309H
|
33309H
36275-52230 Washer, Transfer Output Shaft[04.2008 - 10.2011] ANH25,GGH25 厚さ＝１．４６，マーク ２３ |
36275-52230 |
US $2.48 |
||
|
33309H
|
33309H
36275-52240 Washer, Transfer Output Shaft[04.2008 - 10.2011] ANH25,GGH25 厚さ＝１．４８，マーク ２４ |
36275-52240 |
US $2.62 |
||
|
33309H
|
33309H
36275-52250 Washer, Transfer Output Shaft[04.2008 - 10.2011] ANH25,GGH25 厚さ＝１．５０，マーク ２５ |
36275-52250 |
US $2.62 |
||
|
33309H
|
33309H
36275-52260 Washer, Transfer Output Shaft[04.2008 - 10.2011] ANH25,GGH25 厚さ＝１．５２，マーク ２６ |
36275-52260 |
US $2.62 |
||
|
33309H
|
33309H
36275-52270 Washer, Transfer Output Shaft[04.2008 - 10.2011] ANH25,GGH25 厚さ＝１．５４，マーク ２７ |
36275-52270 |
US $2.62 |
||
|
33309H
|
33309H
36275-52280 Washer, Transfer Output Shaft[04.2008 - 10.2011] ANH25,GGH25 厚さ＝１．５６，マーク ２８ |
36275-52280 |
US $2.62 |
||
|
33621F
|
33621F
33621-42040 Label, Transaxle Oil Information[11.2012 -] ANH25,GGH25 |
33621-42040 |
US $0.58 |
||
| replacement | |||||
|
33621F
|
33621F
33621-48020 Label, Transaxle Oil Information[11.2012 -] ANH25,GGH25 |
33621-48020 |
US $0.44 |
||
|
36100A
|
36100A
90116-12028 Bolt, Stud (For Transfer & Transaxle Setting)[04.2008 - 10.2011] ANH25,GGH25..CBU ネジ部長さ＝２２ ＆ ２２，長さ＝６９ |
90116-12028 |
from US $3.59 |
||
|
36100A
|
36100A
90116-12034 Bolt, Stud (For Transfer & Transaxle Setting)[04.2008 - 10.2011] ANH25,GGH25..CBU ネジ部長さ＝１９ ＆ １９，長さ＝４７ |
90116-12034 |
from US $1.72 |
||
|
36100A
|
36100A
90116-12041 Bolt, Stud (For Transfer & Transaxle Setting)[04.2008 - 10.2011] ANH25,GGH25..CBU ネジ部長さ＝３０ ＆ ２２，長さ＝６４ |
90116-12041 |
from US $2.85 |
||
|
36100B
|
36100B
90105-12298 Bolt (For Transfer & Transaxle Setting)[04.2008 - 10.2011] GGH25..CBU ＊１２−１．２５ＰＸ５３−３５ |
90105-12298 |
US $3.04 |
||
|
36103
|
36103
36103-42021 Case Sub-Assy, Transfer[04.2008 - 10.2011] GGH25 |
36103-42021 |
US $410.59 |
||
| replacements | |||||
|
36103
|
36103
33621-48020 Label, Transaxle Oil Information[04.2008 - 10.2011] GGH25 |
33621-48020 |
US $0.44 |
||
|
36103
|
36103
36103-42023 Case Sub-Assy, Transfer[04.2008 - 10.2011] GGH25 |
36103-42023 |
US $310.13 |
||
|
36103
|
36103
36103-42022 Case Sub-Assy, Transfer[11.2012 -] GGH25 アリ（ＰＮＣ ３３６２１Ｆ） |
36103-42022 |
US $342.16 |
||
| replacement | |||||
|
36103
|
36103
36103-42023 Case Sub-Assy, Transfer[11.2012 -] GGH25 アリ（ＰＮＣ ３３６２１Ｆ） |
36103-42023 |
US $310.13 |
||
|
36111B
|
36111B
90311-55002 Seal, Oil (For Transfer Case)[04.2008 - 10.2011] GGH25 |
90311-55002 |
from US $3.83 |
||
|
36111G
|
36111G
90250-10017 Pin, Straight(For Clutch Housing Set)[04.2008 - 10.2011] ANH25,GGH25 長さ＝２０，外径＝１０ |
90250-10017 |
from US $2.08 |
||
|
36111H
|
36111H
90930-03133 Plug, Breather[04.2008 - 10.2011] ANH25,GGH25 |
90930-03133 |
from US $5.92 |
||
|
36114B
|
36114B
90341-18006 Plug (No magnet)[04.2008 - 10.2011] ANH25,GGH25..CBU |
90341-18006 |
from US $2.76 |
||
|
36114C
|
36114C
12157-10010 Gasket (For Drain Plug)[04.2008 - 10.2011] ANH25,GGH25..CBU |
12157-10010 |
from US $1.09 |
||
|
36114F
|
36114F
90341-18051 Plug, Drain(Hv)[04.2008 - 10.2011] ANH25,GGH25 |
90341-18051 |
from US $3.04 |
||
|
36114G
|
36114G
12157-10010 Gasket (For Drain Plug)[04.2008 - 10.2011] ANH25,GGH25..CBU |
12157-10010 |
from US $1.09 |
||
|
36114H
|
36114H
90341-18023 Plug, W/head Straight Screw, No.1[04.2008 - 10.2011] ANH25,GGH25 |
90341-18023 |
from US $3.04 |
||
|
36114J
|
36114J
12157-10010 Gasket (For Drain Plug)[04.2008 - 10.2011] ANH25,GGH25..CBU |
12157-10010 |
from US $1.09 |
||
|
36121
|
36121
36121-42011 Cover, Transfer Case, No.1[04.2008 - 10.2011] GGH25 |
36121-42011 |
US $91.73 |
||
|
36121C
|
36121C
91552-81030 Bolt, Washer Based Head Hexagon (For Transfer Case Cover)[04.2008 - 10.2011] ANH25,GGH25 |
91552-81030 |
from US $1.07 |
||
|
36128A
|
36128A
91621-60614 Bolt(For Transaxle & Engine Setting)[04.2008 - 10.2011] ANH25,GGH25 |
91621-60614 |
from US $1.48 |
||
|
36128B
|
36128B
36128-42010
Deflector, Breather Oil
[04.2008 - 10.2011] GGH25 |
36128-42010 |
— | ||
|
9017912068
|
9017912068
90179-12068 Nut(For Transaxle Case Cover) |
90179-12068 |
US $1.76 |
||
