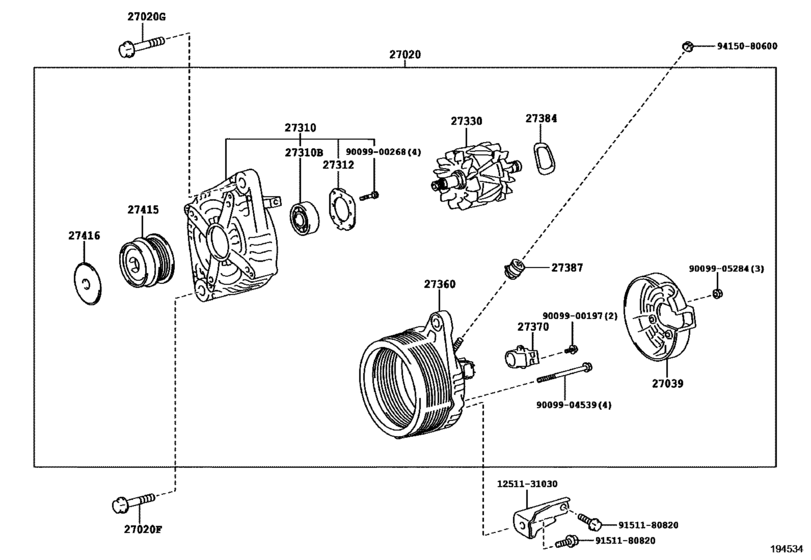

Alternator ([01.2015 - ] 12V 150A (1501- )2GRFE) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- GGH30
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- Model
- Alphard III
- From
- 01.2015
- Gear Shift Type
- 6FC
- Seating Capacity
- 07S
- Vehicle Model
- ALPHD
- Model Mark
- L
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-31331
Alternator Assy
[01.2015 -] 2GRFE..GGH30..LHD 12V 150A |
27060-31331 |
— | ||
|
27020F
|
27020F
91552-81040 Bolt(For Alternator)[01.2015 -] 2GRFE..GGH30 |
91552-81040 |
from US $1.21 |
||
|
27020G
|
27020G
91552-81070 Bolt(For Alternator)[01.2015 -] 2GRFE..GGH30 |
91552-81070 |
from US $1.33 |
||
|
27039
|
27039
27039-31390
Cover, Alternator Rear End
[01.2015 -] 2GRFE..GGH30 |
27039-31390 |
— | ||
|
27310
|
27310
27310-31290
Frame Assy, Drive End, Alternator
[01.2015 -] 2GRFE..GGH30 |
27310-31290 |
— | ||
|
27310B
|
27310B
90099-10223 Bearing(For Alternator Drive End Frame)[01.2015 -] 2GRFE..GGH30 |
90099-10223 |
from US $10.31 |
||
|
27312
|
27312
27312-72100 Plate, Bearing Retainer, Alternator[01.2015 -] 2GRFE..GGH30 |
27312-72100 |
US $4.06 |
||
|
27330
|
27330
27330-58460
Rotor Assy, Alternator
[01.2015 -] 2GRFE..GGH30 |
27330-58460 |
— | ||
|
27360
|
27360
27360-31491
Coil Assy, Alternator
[01.2015 -] 2GRFE..GGH30..LHD |
27360-31491 |
— | ||
|
27370
|
27370
27370-31220 Holder Assy, Alternator Brush[01.2015 -] 2GRFE..GGH30 |
27370-31220 |
from US $22.54 |
||
|
27384
|
27384
27384-50030 Holder, Alternator Brush, A[01.2015 -] 2GRFE..GGH30 |
27384-50030 |
from US $2.80 |
||
|
27387
|
27387
27387-20130 Insulator, Terminal[01.2015 -] 2GRFE..GGH30 |
27387-20130 |
from US $4.02 |
||
|
27415
|
27415
27415-0W131 Pulley, Alternator W/clutch[01.2015 -] 2GRFE..GGH30 |
27415-0W131 |
from US $62.50 |
||
|
27416
|
27416
27416-0W050 Cap, Alternator Pulley[01.2015 -] 2ARFE,2GRFE..AGH30,GGH30 |
27416-0W050 |
from US $4.08 |
||
|
1251131030
|
1251131030
12511-31030 Bracket, Alternator, No.1 |
12511-31030 |
US $12.38 |
||
|
9009900197
|
9009900197
90099-00197 Screw |
90099-00197 |
from US $0.28 |
||
|
9009900268
|
9009900268
90099-00268
Screw(For Alternator Drive End Frame)
|
90099-00268 |
— | ||
|
9009904539
|
9009904539
90099-04539 BOLT |
90099-04539 |
US $1.50 |
||
|
9009905284
|
9009905284
90099-05284 NUT |
90099-05284 |
US $0.82 |
||
|
9151180820
|
9151180820
91511-80820 BOLT FLANGE |
91511-80820 |
from US $0.86 |
||
|
9415080600
|
9415080600
94150-80600 NUT FLANGE |
94150-80600 |
from US $0.72 |
