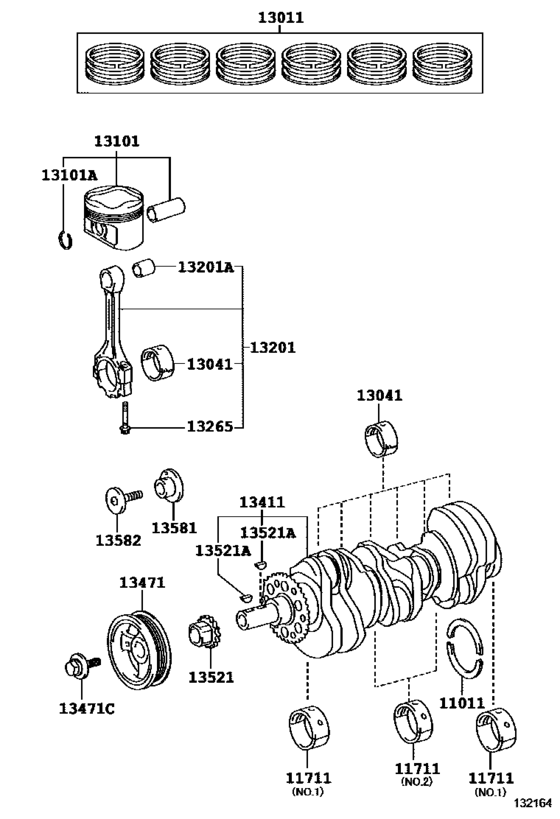

Crankshaft & Piston ([01.2015 - ] (1501- )2GRFE) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- GGH30
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- Model
- Alphard III
- From
- 01.2015
- Gear Shift Type
- 6FC
- Seating Capacity
- 07S
- Vehicle Model
- ALPHD
- Model Mark
- L
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-31080 Washer Set, Crankshaft Thrust[01.2015 -] 2GRFE..GGH30 STD |
11011-31080 |
from US $19.76 |
||
|
11711
|
11711
11071-31031-01 Bearing, Crankshaft[01.2015 - 02.2015] 2GRFE..GGH30 MARK1,NO.2,REFER R/M |
11071-31031-01 |
US $23.01 |
||
| replacement | |||||
|
11711
|
11711
11071-31060-A1 Bearing, Crankshaft[01.2015 - 02.2015] 2GRFE..GGH30 MARK1,NO.2,REFER R/M |
11071-31060-A1 |
from US $18.66 |
||
|
11711
|
11711
11071-31031-02 Bearing, Crankshaft[01.2015 - 02.2015] 2GRFE..GGH30 MARK2,NO.2,REFER R/M |
11071-31031-02 |
US $23.01 |
||
| replacement | |||||
|
11711
|
11711
11071-31060-B2 Bearing, Crankshaft[01.2015 - 02.2015] 2GRFE..GGH30 MARK2,NO.2,REFER R/M |
11071-31060-B2 |
from US $17.71 |
||
|
11711
|
11711
11071-31031-03
Bearing, Crankshaft
[01.2015 - 02.2015] 2GRFE..GGH30 MARK3,NO.2,REFER R/M |
11071-31031-03 |
— | ||
| replacement | |||||
|
11711
|
11711
11071-31060-C3 Bearing, Crankshaft[01.2015 - 02.2015] 2GRFE..GGH30 MARK3,NO.2,REFER R/M |
11071-31060-C3 |
from US $17.88 |
||
|
11711
|
11711
11071-31031-04 Bearing, Crankshaft[01.2015 - 02.2015] 2GRFE..GGH30 MARK4,NO.2,REFER R/M |
11071-31031-04 |
US $33.63 |
||
| replacement | |||||
|
11711
|
11711
11071-31060-D4 Bearing, Crankshaft[01.2015 - 02.2015] 2GRFE..GGH30 MARK4,NO.2,REFER R/M |
11071-31060-D4 |
from US $17.88 |
||
|
11711
|
11711
11071-31031-05 Bearing, Crankshaft[01.2015 - 02.2015] 2GRFE..GGH30 MARK5,NO.2,REFER R/M |
11071-31031-05 |
US $33.63 |
||
| replacement | |||||
|
11711
|
11711
11071-31060-E5 Bearing, Crankshaft[01.2015 - 02.2015] 2GRFE..GGH30 MARK5,NO.2,REFER R/M |
11071-31060-E5 |
from US $21.08 |
||
|
11711
|
11711
11071-31060-01
Bearing, Crankshaft
[03.2015 -] 2GRFE..GGH30 MARK 1,NO.2,REFER R/M |
11071-31060-01 |
— | ||
| replacement | |||||
|
11711
|
11711
11071-31060-A1 Bearing, Crankshaft[03.2015 -] 2GRFE..GGH30 MARK 1,NO.2,REFER R/M |
11071-31060-A1 |
from US $18.66 |
||
|
11711
|
11711
11071-31060-02
Bearing, Crankshaft
[03.2015 -] 2GRFE..GGH30 MARK 2,NO.2,REFER R/M |
11071-31060-02 |
— | ||
| replacement | |||||
|
11711
|
11711
11071-31060-B2 Bearing, Crankshaft[03.2015 -] 2GRFE..GGH30 MARK 2,NO.2,REFER R/M |
11071-31060-B2 |
from US $17.71 |
||
|
11711
|
11711
11071-31060-03 Bearing, Crankshaft[03.2015 -] 2GRFE..GGH30 MARK 3,NO.2,REFER R/M |
11071-31060-03 |
US $35.96 |
||
| replacement | |||||
|
11711
|
11711
11071-31060-C3 Bearing, Crankshaft[03.2015 -] 2GRFE..GGH30 MARK 3,NO.2,REFER R/M |
11071-31060-C3 |
from US $17.88 |
||
|
11711
|
11711
11071-31060-04 Bearing, Crankshaft[03.2015 -] 2GRFE..GGH30 MARK 4,NO.2,REFER R/M |
11071-31060-04 |
US $35.96 |
||
| replacement | |||||
|
11711
|
11711
11071-31060-D4 Bearing, Crankshaft[03.2015 -] 2GRFE..GGH30 MARK 4,NO.2,REFER R/M |
11071-31060-D4 |
from US $17.88 |
||
|
11711
|
11711
11071-31060-05 Bearing, Crankshaft[03.2015 -] 2GRFE..GGH30 MARK 5,NO.2,REFER R/M |
11071-31060-05 |
US $35.96 |
||
| replacement | |||||
|
11711
|
11711
11071-31060-E5 Bearing, Crankshaft[03.2015 -] 2GRFE..GGH30 MARK 5,NO.2,REFER R/M |
11071-31060-E5 |
from US $21.08 |
||
|
11711
|
11711
11701-31090-01 Bearing, CrankshaftCRANKSHAFT [01.2015 - 02.2015] 2GRFE..GGH30 MARK 1,NO.1,REFER R/M |
11701-31090-01 |
US $38.15 |
||
| replacement | |||||
|
11711
|
11711
11701-31100-A1 Bearing, Crankshaft[01.2015 - 02.2015] 2GRFE..GGH30 MARK 1,NO.1,REFER R/M |
11701-31100-A1 |
from US $19.48 |
||
|
11711
|
11711
11701-31090-02
Bearing, Crankshaft
[01.2015 - 02.2015] 2GRFE..GGH30 MARK 2,NO.1,REFER R/M |
11701-31090-02 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-31100-B2 Bearing, Crankshaft[01.2015 - 02.2015] 2GRFE..GGH30 MARK 2,NO.1,REFER R/M |
11701-31100-B2 |
from US $18.74 |
||
|
11711
|
11711
11701-31090-03
Bearing, Crankshaft
[01.2015 - 02.2015] 2GRFE..GGH30 MARK 3,NO.1,REFER R/M |
11701-31090-03 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-31100-C3 Bearing, Crankshaft[01.2015 - 02.2015] 2GRFE..GGH30 MARK 3,NO.1,REFER R/M |
11701-31100-C3 |
from US $19.05 |
||
|
11711
|
11711
11701-31090-04 Bearing, CrankshaftCRANKSHAFT [01.2015 - 02.2015] 2GRFE..GGH30 MARK 4,NO.1,REFER R/M |
11701-31090-04 |
US $38.15 |
||
| replacement | |||||
|
11711
|
11711
11701-31100-D4 Bearing, Crankshaft[01.2015 - 02.2015] 2GRFE..GGH30 MARK 4,NO.1,REFER R/M |
11701-31100-D4 |
from US $20.51 |
||
|
11711
|
11711
11701-31090-05 Bearing, CrankshaftCRANKSHAFT [01.2015 - 02.2015] 2GRFE..GGH30 MARK 5,NO.1,REFER R/M |
11701-31090-05 |
US $38.15 |
||
| replacement | |||||
|
11711
|
11711
11701-31100-E5 Bearing, Crankshaft[01.2015 - 02.2015] 2GRFE..GGH30 MARK 5,NO.1,REFER R/M |
11701-31100-E5 |
from US $19.23 |
||
|
11711
|
11711
11701-31100-01 Bearing, Crankshaft[03.2015 -] 2GRFE..GGH30 MARK 1,NO.1,REFER R/M |
11701-31100-01 |
US $38.15 |
||
| replacement | |||||
|
11711
|
11711
11701-31100-A1 Bearing, Crankshaft[03.2015 -] 2GRFE..GGH30 MARK 1,NO.1,REFER R/M |
11701-31100-A1 |
from US $19.48 |
||
|
11711
|
11711
11701-31100-02 Bearing, Crankshaft[03.2015 -] 2GRFE..GGH30 MARK 2,NO.1,REFER R/M |
11701-31100-02 |
US $38.15 |
||
| replacement | |||||
|
11711
|
11711
11701-31100-B2 Bearing, Crankshaft[03.2015 -] 2GRFE..GGH30 MARK 2,NO.1,REFER R/M |
11701-31100-B2 |
from US $18.74 |
||
|
11711
|
11711
11701-31100-03 Bearing, Crankshaft[03.2015 -] 2GRFE..GGH30 MARK 3,NO.1,REFER R/M |
11701-31100-03 |
US $38.15 |
||
| replacement | |||||
|
11711
|
11711
11701-31100-C3 Bearing, Crankshaft[03.2015 -] 2GRFE..GGH30 MARK 3,NO.1,REFER R/M |
11701-31100-C3 |
from US $19.05 |
||
|
11711
|
11711
11701-31100-04 Bearing, Crankshaft[03.2015 -] 2GRFE..GGH30 MARK 4,NO.1,REFER R/M |
11701-31100-04 |
US $38.15 |
||
| replacement | |||||
|
11711
|
11711
11701-31100-D4 Bearing, Crankshaft[03.2015 -] 2GRFE..GGH30 MARK 4,NO.1,REFER R/M |
11701-31100-D4 |
from US $20.51 |
||
|
11711
|
11711
11701-31100-05 Bearing, Crankshaft[03.2015 -] 2GRFE..GGH30 MARK 5,NO.1,REFER R/M |
11701-31100-05 |
US $38.15 |
||
| replacement | |||||
|
11711
|
11711
11701-31100-E5 Bearing, Crankshaft[03.2015 -] 2GRFE..GGH30 MARK 5,NO.1,REFER R/M |
11701-31100-E5 |
from US $19.23 |
||
|
13011
|
13011
13011-31151 Ring Set, Piston[01.2015 -] 2GRFE..GGH30 STD |
13011-31151 |
from US $226.57 |
||
|
13041
|
13041
13041-31070-01 Bearing, Connecting Rod[01.2015 - 02.2015] 2GRFE..GGH30 MARK 1,REFER REPAIR MANUAL |
13041-31070-01 |
US $20.38 |
||
| replacement | |||||
|
13041
|
13041
13041-31100-01 Bearing, Connecting Rod[01.2015 - 02.2015] 2GRFE..GGH30 MARK 1,REFER REPAIR MANUAL |
13041-31100-01 |
from US $11.45 |
||
|
13041
|
13041
13041-31070-02
Bearing, Connecting Rod
[01.2015 - 02.2015] 2GRFE..GGH30 MARK 2,REFER REPAIR MANUAL |
13041-31070-02 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-31100-02 Bearing, Connecting Rod[01.2015 - 02.2015] 2GRFE..GGH30 MARK 2,REFER REPAIR MANUAL |
13041-31100-02 |
from US $11.78 |
||
|
13041
|
13041
13041-31070-03 Bearing, Connecting Rod[01.2015 - 02.2015] 2GRFE..GGH30 MARK 3,REFER REPAIR MANUAL |
13041-31070-03 |
US $20.38 |
||
| replacement | |||||
|
13041
|
13041
13041-31100-03 Bearing, Connecting Rod[01.2015 - 02.2015] 2GRFE..GGH30 MARK 3,REFER REPAIR MANUAL |
13041-31100-03 |
from US $11.78 |
||
|
13041
|
13041
13041-31070-04 Bearing, Connecting Rod[01.2015 - 02.2015] 2GRFE..GGH30 MARK 4,REFER REPAIR MANUAL |
13041-31070-04 |
US $20.38 |
||
| replacement | |||||
|
13041
|
13041
13041-31100-04 Bearing, Connecting Rod[01.2015 - 02.2015] 2GRFE..GGH30 MARK 4,REFER REPAIR MANUAL |
13041-31100-04 |
from US $11.47 |
||
|
13041
|
13041
13041-31100-01 Bearing, Connecting Rod[03.2015 - 06.2015] 2GRFE..GGH30 MARK 1,REFER REPAIR MANUAL |
13041-31100-01 |
from US $11.45 |
||
|
13041
|
13041
13041-31100-02 Bearing, Connecting Rod[03.2015 - 06.2015] 2GRFE..GGH30 MARK 2,REFER REPAIR MANUAL |
13041-31100-02 |
from US $11.78 |
||
|
13041
|
13041
13041-31100-03 Bearing, Connecting Rod[03.2015 - 06.2015] 2GRFE..GGH30 MARK 3,REFER REPAIR MANUAL |
13041-31100-03 |
from US $11.78 |
||
|
13041
|
13041
13041-31100-04 Bearing, Connecting Rod[03.2015 - 06.2015] 2GRFE..GGH30 MARK 4,REFER REPAIR MANUAL |
13041-31100-04 |
from US $11.47 |
||
|
13041
|
13041
13041-31110-01 Bearing, Connecting Rod[07.2015 -] 2GRFE..GGH30 MARK 1,REFER REPAIR MANUAL |
13041-31110-01 |
US $18.49 |
||
|
13041
|
13041
13041-31110-02 Bearing, Connecting Rod[07.2015 -] 2GRFE..GGH30 MARK 2,REFER REPAIR MANUAL |
13041-31110-02 |
US $18.49 |
||
|
13041
|
13041
13041-31110-03 Bearing, Connecting Rod[07.2015 -] 2GRFE..GGH30 MARK 3,REFER REPAIR MANUAL |
13041-31110-03 |
US $18.49 |
||
|
13041
|
13041
13041-31110-04 Bearing, Connecting Rod[07.2015 -] 2GRFE..GGH30 MARK 4,REFER REPAIR MANUAL |
13041-31110-04 |
US $18.49 |
||
|
13101
|
13101
13101-31092-A0 Piston Sub-Assy, W/pin[01.2015 -] 2GRFE..GGH30 STD,MARK A,REFER REPAIR MANUAL |
13101-31092-A0 |
from US $56.02 |
||
|
13101
|
13101
13101-31092-B0 Piston Sub-Assy, W/pin[01.2015 -] 2GRFE..GGH30 STD,MARK B,REFER REPAIR MANUAL |
13101-31092-B0 |
from US $50.19 |
||
|
13101
|
13101
13101-31092-C0 Piston Sub-Assy, W/pin[01.2015 -] 2GRFE..GGH30 STD,MARK C,REFER REPAIR MANUAL |
13101-31092-C0 |
US $59.23 |
||
|
13101A
|
13101A
90520-22025 Ring, Hole Snap(For Piston Pin)[01.2015 -] 2GRFE..GGH30 |
90520-22025 |
from US $1.76 |
||
|
13201
|
13201
13201-39135-A0 Rod Sub-Assy, Connecting[01.2015 - 03.2015] 2GRFE..GGH30 MARK A,REFER REPAIR MANUAL |
13201-39135-A0 |
US $158.70 |
||
| replacement | |||||
|
13201
|
13201
13201-39137-A0 Rod Sub-Assy, Connecting[01.2015 - 03.2015] 2GRFE..GGH30 MARK A,REFER REPAIR MANUAL |
13201-39137-A0 |
from US $144.14 |
||
|
13201
|
13201
13201-39135-B0 Rod Sub-Assy, Connecting[01.2015 - 03.2015] 2GRFE..GGH30 MARK B,REFER REPAIR MANUAL |
13201-39135-B0 |
US $158.70 |
||
| replacement | |||||
|
13201
|
13201
13201-39137-A0 Rod Sub-Assy, Connecting[01.2015 - 03.2015] 2GRFE..GGH30 MARK B,REFER REPAIR MANUAL |
13201-39137-A0 |
from US $144.14 |
||
|
13201
|
13201
13201-39135-C0 Rod Sub-Assy, Connecting[01.2015 - 03.2015] 2GRFE..GGH30 MARK C,REFER REPAIR MANUAL |
13201-39135-C0 |
US $158.70 |
||
| replacement | |||||
|
13201
|
13201
13201-39137-C0 Rod Sub-Assy, Connecting[01.2015 - 03.2015] 2GRFE..GGH30 MARK C,REFER REPAIR MANUAL |
13201-39137-C0 |
US $144.14 |
||
|
13201
|
13201
13201-39137-A0 Rod Sub-Assy, Connecting[03.2015 - 07.2015] 2GRFE..GGH30 MARK A,REFER REPAIR MANUAL |
13201-39137-A0 |
from US $144.14 |
||
|
13201
|
13201
13201-39137-B0 Rod Sub-Assy, Connecting[03.2015 - 07.2015] 2GRFE..GGH30 MARK B,REFER REPAIR MANUAL |
13201-39137-B0 |
US $144.14 |
||
|
13201
|
13201
13201-39137-C0 Rod Sub-Assy, Connecting[03.2015 - 07.2015] 2GRFE..GGH30 MARK C,REFER REPAIR MANUAL |
13201-39137-C0 |
US $144.14 |
||
|
13201
|
13201
13201-39305-A0 Rod Sub-Assy, Connecting[07.2015 -] 2GRFE..GGH30 MARK A,REFER REPAIR MANUAL |
13201-39305-A0 |
US $144.14 |
||
|
13201
|
13201
13201-39305-B0 Rod Sub-Assy, Connecting[07.2015 -] 2GRFE..GGH30 MARK B,REFER REPAIR MANUAL |
13201-39305-B0 |
US $144.14 |
||
|
13201
|
13201
13201-39305-C0 Rod Sub-Assy, Connecting[07.2015 -] 2GRFE..GGH30 MARK C,REFER REPAIR MANUAL |
13201-39305-C0 |
US $144.14 |
||
|
13201A
|
13201A
90999-73144 Bush(For Connecting Rod Small End)[01.2015 -] 2GRFE..GGH30 |
90999-73144 |
from US $2.52 |
||
|
13265
|
13265
13265-28010
Bolt, Connecting Rod
[01.2015 -] 2GRFE..GGH30 |
13265-28010 |
— | ||
| replacement | |||||
|
13265
|
13265
13265-28020 BOLT CONNECTING ROD[01.2015 -] 2GRFE..GGH30 |
13265-28020 |
from US $3 |
||
|
13411
|
13411
13401-31041 Crankshaft[01.2015 -] 2GRFE..GGH30 |
13401-31041 |
US $1,294.38 |
||
|
13471
|
13471
13470-31030 Pulley, Crankshaft[01.2015 -] 2GRFE..GGH30 |
13470-31030 |
from US $180 |
||
|
13471C
|
13471C
90119-16020 Bolt(For Crankshaft Pulley Set)[01.2015 -] 2GRFE..GGH30 |
90119-16020 |
from US $5.44 |
||
|
13521
|
13521
13521-31041 Gear Or Sprocket, Crankshaft Timing[01.2015 -] 2GRFE..GGH30 |
13521-31041 |
from US $19.76 |
||
|
13521A
|
13521A
95161-30516 Key(For Oil Pump Drive Spline)[01.2015 -] 2GRFE..GGH30 |
95161-30516 |
from US $1.17 |
||
|
13581
|
13581
13581-31030 Shaft, Idle Gear, No.1[01.2015 -] 2GRFE..GGH30 |
13581-31030 |
from US $6.44 |
||
|
13582
|
13582
13582-31031 Shaft, Idle Gear, No.2[01.2015 -] 2GRFE..GGH30 |
13582-31031 |
from US $2.50 |
||
