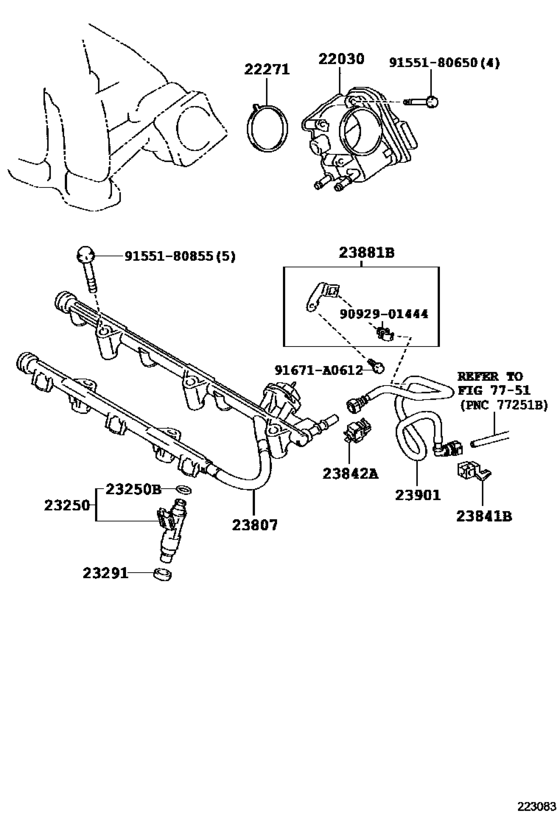

Fuel Injection System ([01.2015 - ] (1501- )2GRFE) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- GGH30
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- Model
- Alphard III
- From
- 01.2015
- Gear Shift Type
- 6FC
- Seating Capacity
- 07S
- Vehicle Model
- ALPHD
- Model Mark
- L
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22030
|
22030
22030-31030 Body Assy, Throttle W/motor[01.2015 -] 2GRFE..GGH30 |
22030-31030 |
US $821.18 |
||
|
22271
|
22271
22271-31040 Gasket, Throttle Body[01.2015 -] 2GRFE..GGH30 |
22271-31040 |
from US $3.88 |
||
|
23250
|
23250
23209-31050 Injector Assy, Fuel[01.2015 -] 2GRFE..GGH30 |
23209-31050 |
from US $167.58 |
||
|
23250B
|
23250B
90301-07033 Ring, O(For Fuel Injector)[01.2015 -] 2GRFE..GGH30 |
90301-07033 |
from US $2.24 |
||
|
23291
|
23291
23291-23010 Insulator, Injector Vibration[01.2015 -] 2GRFE..GGH30 |
23291-23010 |
from US $2.98 |
||
|
23807
|
23807
23807-31090 Pipe Sub-Assy, Fuel Delivery[01.2015 -] 2GRFE..GGH30 |
23807-31090 |
US $190.44 |
||
|
23841B
|
23841B
23841-28020 Clamp, Fuel Pipe, No.1(For Efi)[01.2015 -] 2GRFE..GGH30; 2AR#..AGH30,AYH30 |
23841-28020 |
US $11.20 |
||
|
23842A
|
23842A
23842-31020 Clamp, Fuel Pipe, No.2(For Efi)[01.2015 -] 2GRFE..GGH30 |
23842-31020 |
US $5.77 |
||
|
23881B
|
23881B
23881-31050 Bracket, Fuel Hose[01.2015 -] 2GRFE..GGH30 |
23881-31050 |
US $2.91 |
||
|
23901
|
23901
23901-31080 Tube Sub-Assy, Fuel[01.2015 -] 2GRFE..GGH30 |
23901-31080 |
US $55.91 |
||
|
91671A0612
|
91671A0612
91671-A0612 BOLT FLANGE |
91671-A0612 |
from US $0.66 |
||
|
9092901444
|
9092901444
90929-01444 Clamp Or Clip, Fuel Hose(For Efi) |
90929-01444 |
from US $1.76 |
||
|
9155180650
|
9155180650
91551-80650 BOLT FLANGE |
91551-80650 |
US $1.28 |
||
|
9155180855
|
9155180855
91551-80855 New Genuine Part |
91551-80855 |
US $1.60 |
